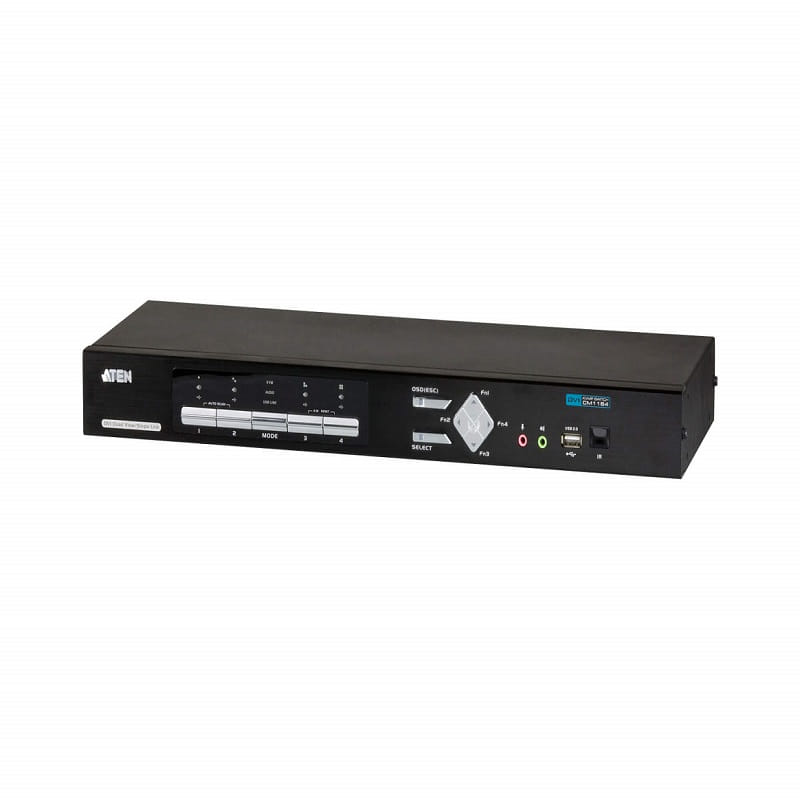

4-Port USB DVI Multi-View/Audio KVMP™ Switch

Product Code : CM1164

Brand Category : Desktop KVM Switches

Description

One USB console independently and simultaneously controls four DVI-D computers and two additional USB devices
Multi-view console controls up to 4 video sources on one screen
Function control and system setting via Front Panel, OSD, IR Remote – display mode, port selection, daisy chain, and so on
Channel Editor - edit display windows, and other functions with the mouse and on-screen control panel
Hardware Cursor – OSD navigation via console mouse
DCC (Daisy Chain Control) port enables users to connect up to four CM1164 units, and use one console keyboard/mouse to manage computers or another CM1164
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
2-port USB 2.0 hub built in, fully compliant with USB 2.0 specification
Computer selection via front panel push buttons, hotkeys, IR Remote Control and OSD (with mouse* function enabled)
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice***
Console keyboard emulation /bypass feature that support most multimedia keyboards***
Independent switching for USB peripheral port, audio function, and KVM switch focus
Power on detection
Auto scan feature
Multiplatform support – Windows, Linux, Mac and Sun
Keyboard and Mouse support emulation and bypass
Superior video quality – up to 1920 x 1200 resolution
Multilingual keyboard mapping-Supports English, Japanese, and French keyboards
Full bass response provides a rich experience for 2.1 channel audio
Mac/Sun keyboard support and emulation**
Upgradeable firmware through computers' USB port

* For 3-key USB wheel mouse only
**PC keyboard combinations emulate Mac/Sun keyboards.
**Mac/Sun keyboards only work with their own computers.
***The USB keyboard and mouse console ports on the CM1164's rear panel will only support a USB keyboard and mouse.

Add to Query Cart PDF Download

Technical Specification

Computer Connections	4
Port Selection	Front Panel Pushbuttons; Hotkeys; IR Remote Control; On-Screen Display (OSD); Mouse
Connectors

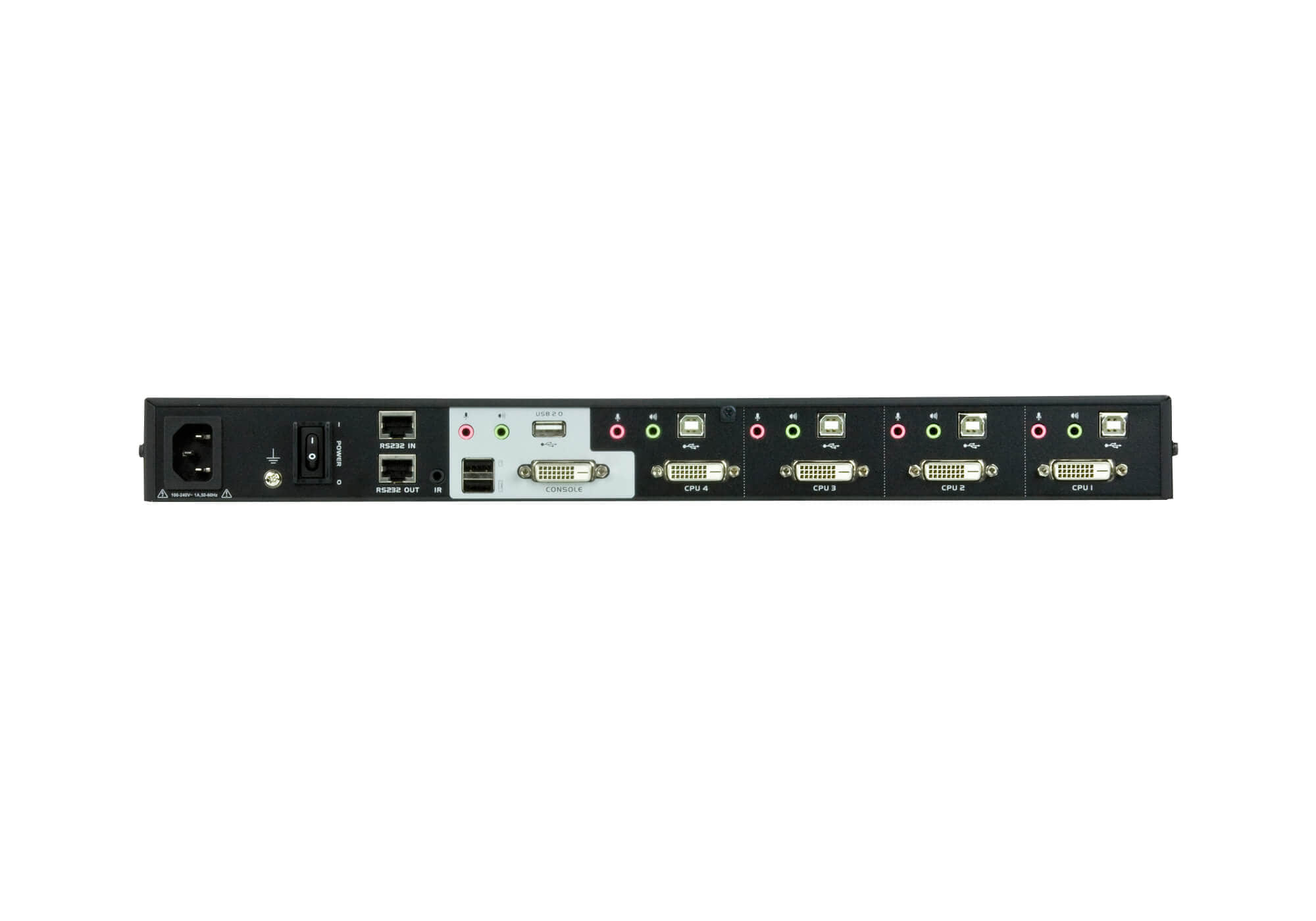

Console Ports	2 x USB Type A Female (Black; rear panel) 1 x Single Link DVI-D Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel,1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) 2 x RJ-45
KVM Ports	4 x USB Type B Female (White) 4 x Single Link DVI-D Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
Power	1 x IEC320 Jack
USB Hub	2 x USB Type A Female (White; 1 x front panel; 1 x rear panel)
Switches
Selected	11 x Pushbuttons
LEDs
KVM	4 (Orange)
Audio	4 (Green)
USB	4 (Green)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200 @ 60 Hz (DVI-D)
Scan Interval	1–99 secs. (Default: 5 secs)
Power Consumption	AC110V:15.2W:97BTU AC220V:15.2W:97BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-10-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	2.50 kg ( 5.51 lb )
Dimensions (L x W x H)	43.72 x 16.38 x 4.40 cm (17.21 x 6.45 x 1.73 in.)
