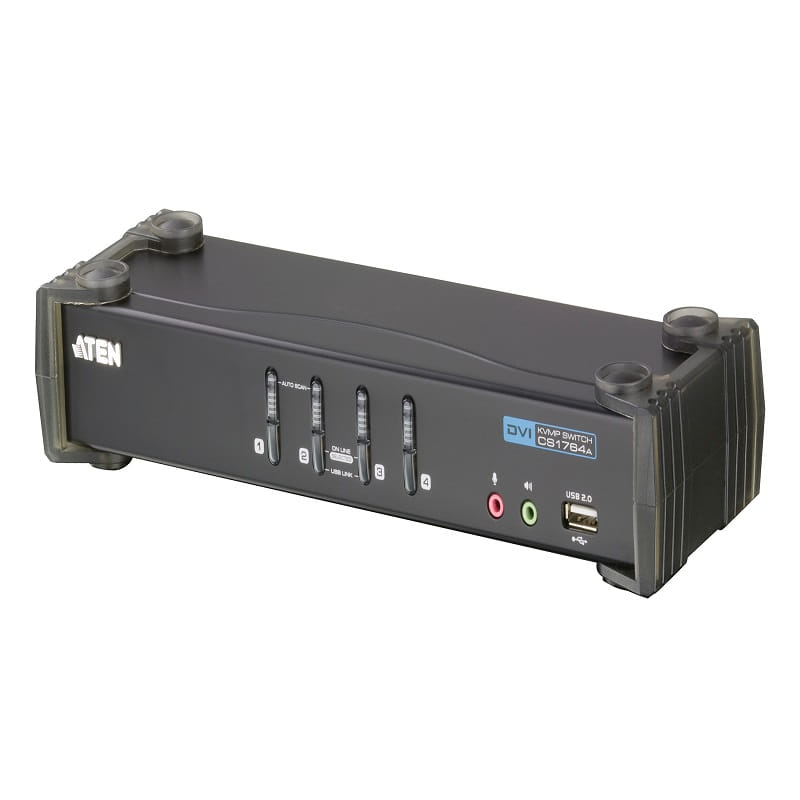

4-Port USB DVI/Audio KVMP™ Switch

Product Code : CS1764A

Brand Category : Desktop KVM Switches

Description

One USB console controls four DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Computer selection via front panel pushbuttons and hotkeys
Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support - Windows, Linux, Mac and Sun
Superior video quality - 1920 x 1200, 60Hz; DDC2B
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support - fully compliant with the DVI specifications
HDCP compliant
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Sun /Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
Firmware upgradable via USB

* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

Technical Specification

Computer Connections	4
Port Selection	Hotkey, Pushbutton, Mouse

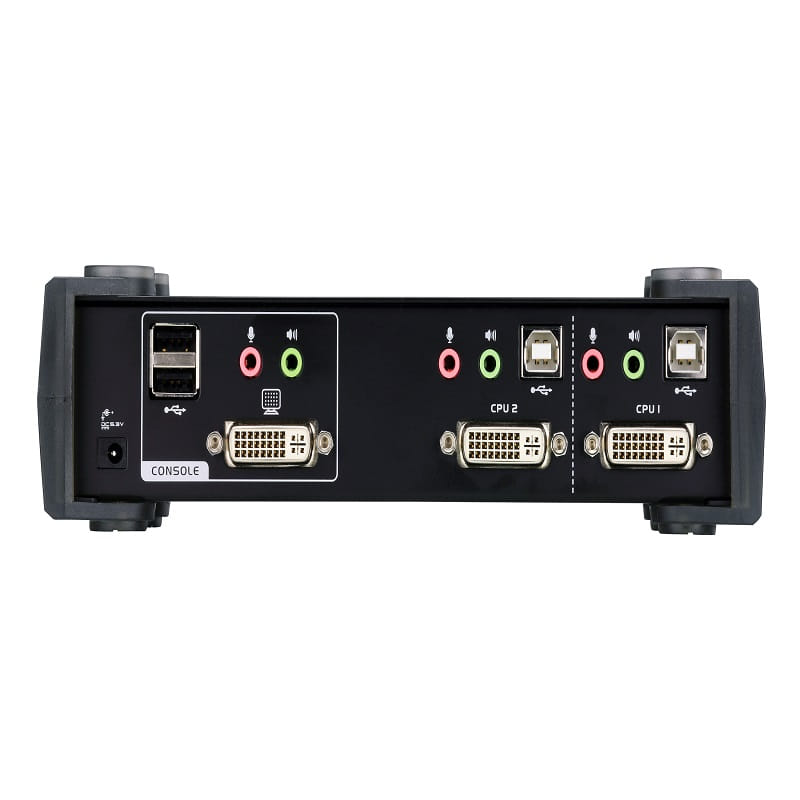

Connectors
Console Ports	2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
KVM Ports	4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)
Switches
Selected	4 x Pushbutton
LEDs
USB Link	4 (Green)
On Line /Selected	4 (Orange)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200@ 60Hz; DDC2B
Scan Interval	1–99 Seconds (Default: 5 sec.)
Power Consumption	DC5.3V:3.69W:43BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.94 kg ( 2.07 lb )
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
