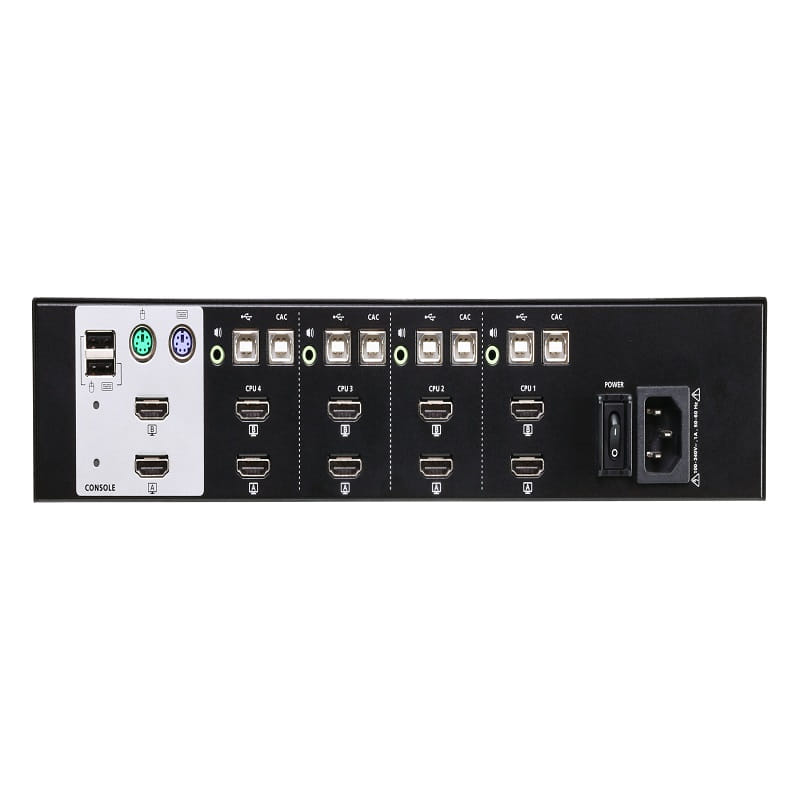

4-Port USB HDMI Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)

"

• NIAP Common Criteria Compliant
  • Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements

• Multi-Layered Security
  • Restricted USB Connectivity – non-authorized HIDs (Human Interface Devices) or non-predefined CAC devices will be rejected / ignored
  • Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected
  • Tamper-Evident Seals– provides visual indication of any attempt to access the ATEN PSS PP v3.0 Secure KVM Switches’ internal components
  • Non-Reprogrammable Firmware – prevents reprogramming the ATEN PSS PP v3.0 Secure KVM Switches
  • Port selection via pushbuttons only to enhance security
  • LED indicators for peripheral filtering and KVM security status
  • Rugged metal enclosure

• Data Channel Isolation and Unidirectional Data Flow
  • Data Channel Isolation – prevents data leakage between connected computers via isolated channel per port
  • Unidirectional Data Flow – ensures unidirectional data flow between the console devices and the selected computer
  • ATEN PSS PP v3.0 Secure KVM Switches control and isolate data flow between the console devices and connected computers
  • Supports analog audio (speaker only)*

• User Data Protection
  • User Data Protection – Keyboard/Mouse data buffer is automatically purged when switching KVM port focus

• Security Management
  • KVM Log Data – provides administrative functions for authorized administrator to audit KVM log data
  • Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application
  • Supports enable / disable CAC function by port

• Superior Video Quality
  • Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)**
  • Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports

    * Only analog speaker data input is supported. The ATEN PSS PP v3.0 Secure KVM Switches does not convert digital audio to analog audio.
    ** HDMI Secure KVM Switch series supports console video output resolutions up to 4K @ 30 Hz.

"
