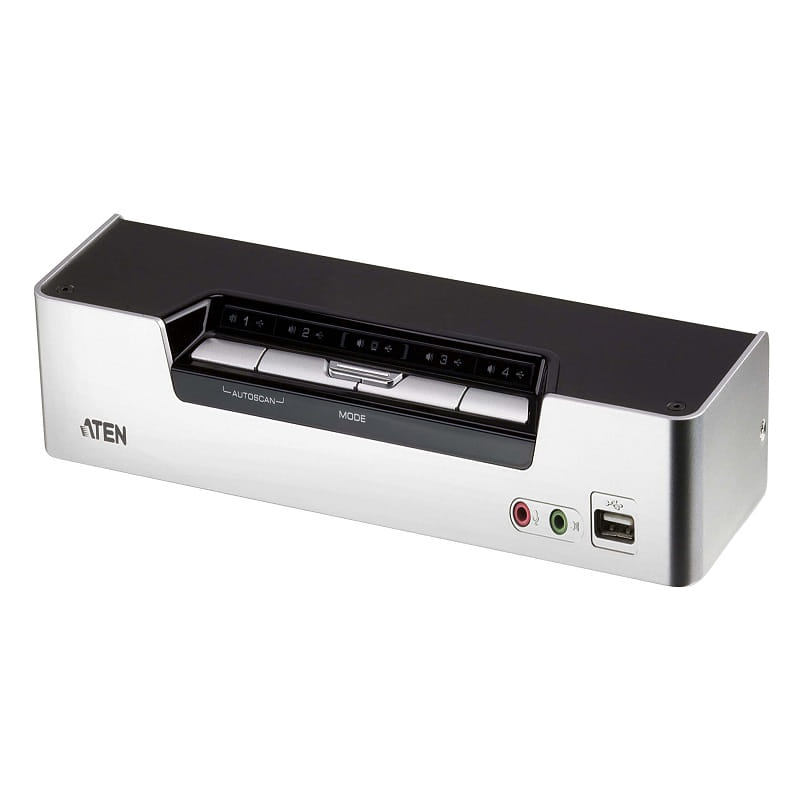

4-Port USB HDMI/Audio KVMP™ Switch

Product Code : CS1794

Brand Category : Desktop KVM Switches

Description

4-port HDMI USB 2.0 KVMP™ Switch
One USB console controls four HDMI-interface computers and two additional USB devices
2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
Dolby True HD and DTS HD Master Audio support
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
Supports widescreen resolutions
Multiplatform support - Windows, Linux,and Mac
Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers and HDMI devices
Firmware Upgradable

* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers

Technical Specification

Computer Connections	4
Port Selection	Hotkey, Pushbutton

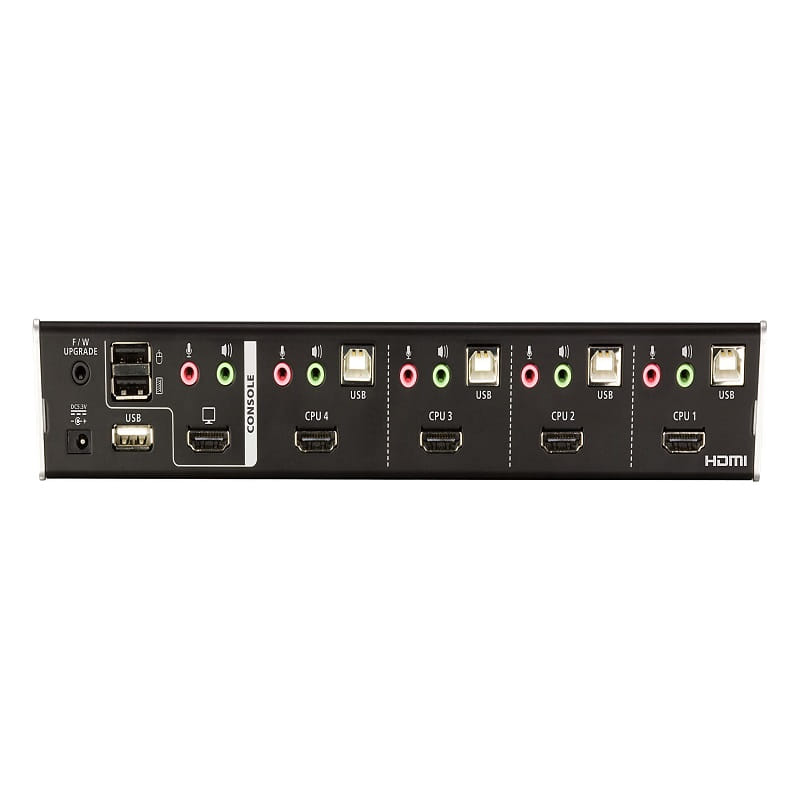

Connectors
Console Ports	2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports	4 x USB Type B Female 4 x HDMI Female (Black) 4 x 3.5 mm Audio Jack Female (Green) 4 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade	1 x 3.5 mm Audio Jack Female (Black)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected	5 x Pushbutton
LEDs
Audio	5 (Green)
KVM	5 (Orange)
USB	5 (Green)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval	1-99 seconds (default: 5 sec.)
Power Consumption	DC5.3V:4.88W:38BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal, Plastic
Weight	0.53 kg ( 1.17 lb )
Dimensions (L x W x H)	26.23 x 7.24 x 4.40 cm (10.33 x 2.85 x 1.73 in.)
