4-Port USB Mini DisplayPort/Audio Dual Display KVMP™ Switch (Cables included)

Product Code : CS1944

Brand Category : Desktop KVM Switches

Description

One dual-view USB console independently and simultaneously controls four Mini DisplayPort computers and two USB devices
USB quick charge mode (front panel USB port)
Mini DisplayPort 1.1a & HDCP compatible
Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK
Superior video quality – enables up to 2560 x 1600 resolution and 3D displays up to 1920x1080 resolution at 120Hz
Nvidia 3D Vision Ready
2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications

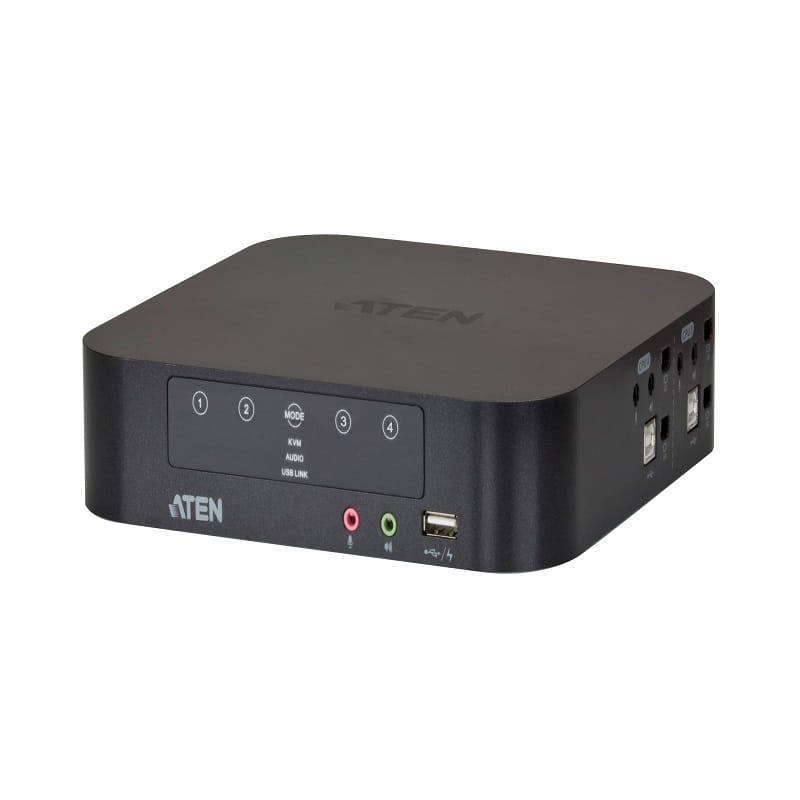

Computer selection via front touch panel /hotkeys/ mouse*
Independent switching for USB peripherals, audio, and KVM focus
Keyboard and Mouse support emulation and bypass
Power on Detection
Mac keyboard support and emulation**
Multilingual keyboard mapping – Supports English, Japanese, and French keyboards
Multiplatform support – Windows, Linux and Mac

* Mouse port switching is only workable under mouse emulation mode. For 3-key USB wheel mouse only.
**PC keyboard combinations emulate Mac keyboards.
**Mac keyboards only work with their own computers.

Technical Specification

Computer Connections	4
Port Selection	Touch Panel, Hotkey, Mouse
Connectors
Console Ports	2 x USB Type A Female (Black, rear panel) 2 x Mini DisplayPort Female (Black) 2 x Mini TOSLINK Jack Female (Black) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	4 x USB Type B Female (White) 8 x Mini DisplayPort Female (Black) 4 x Mini TOSLINK Jack Female (Black)
USB Hub	2 x USB Type A Female (White; 1 x Front panel, 1 x Rear panel)
Power	1 x DC Jack
Switches
Selected	4 x Point Touch Panel
LEDs
KVM	4 (Orange)
Audio	4 (Green)
USB	4 (Green)
Emulation
Keyboard / Mouse	USB
Video	DP: 2560 x 1600 resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @ 120Hz
Scan Interval	1 – 99 seconds (Default: 5 seconds)
Power Consumption	DC5.3V:3.9W:52BTU
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.61 kg ( 1.34 lb )
Dimensions (L x W x H)	19.70 x 19.70 x 4.47 cm (7.76 x 7.76 x 1.76 in.)
