4-Port USB VGA Dual Display/Audio KVMP™ Switch

Product Code : CS1744

Brand Category : Desktop KVM Switches

Description

Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
2 port USB Hub built in
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting

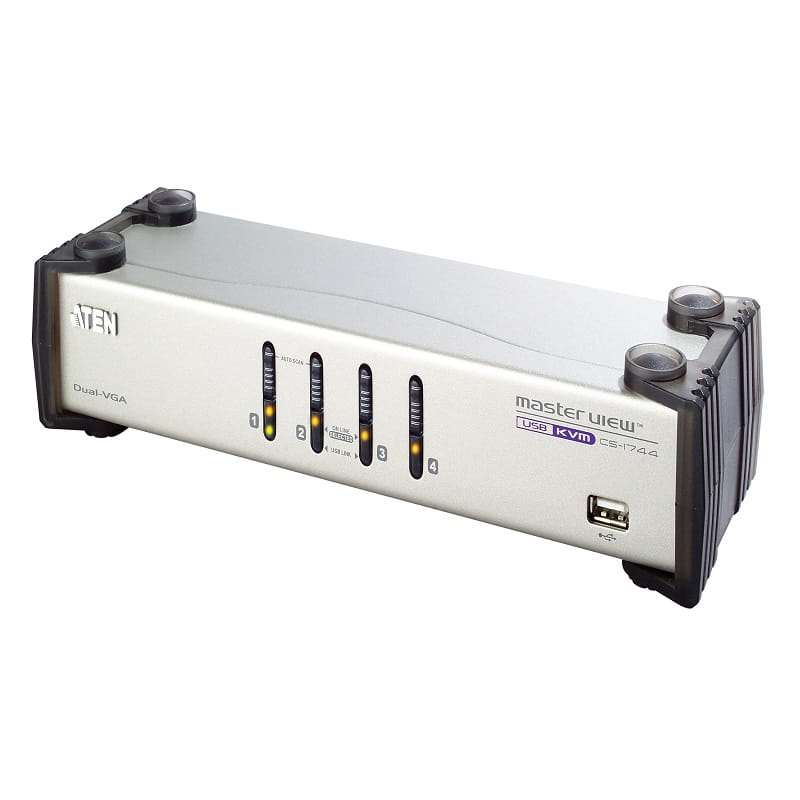

Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradeable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.

Technical Specification

Computer Connections	4
Port Selection	Hotkey, Pushbutton
USB Port / Audio Port Selection	Hotkey

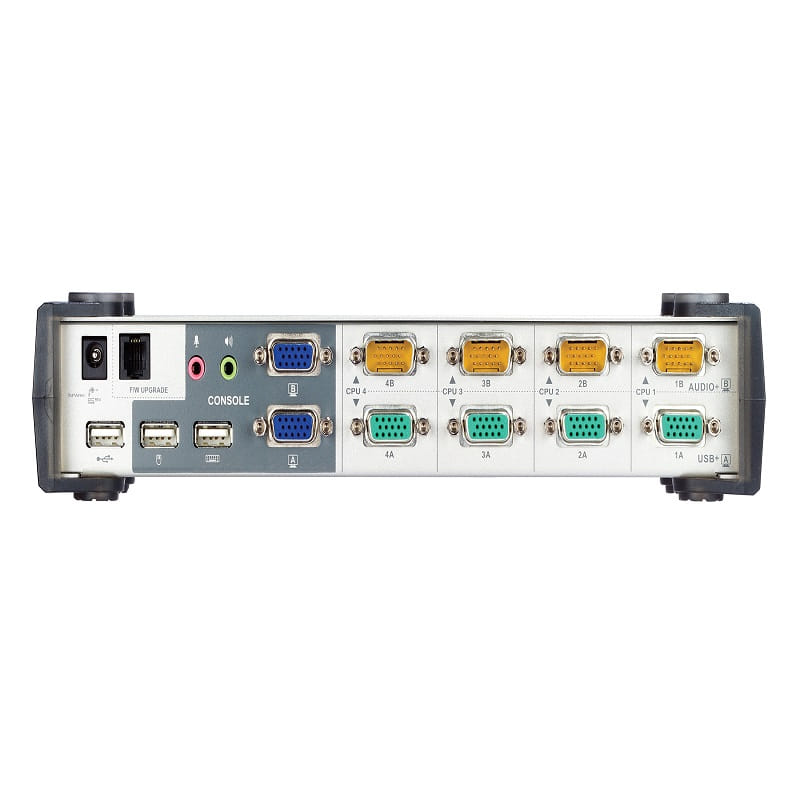

Connectors
Console Ports	2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	4 x SPHD-15 Male (Yellow) 4 x SPHD-15 Female (Green)
USB Hub	2 x USB Type A Female (White)
Firmware Upgrade	1 x RJ-11 Female (Black)
Power	1 x DC Jack (Black)
Switches
Selected	4 x Pushbutton
LEDs
USB Link	4 (Green)
On Line /Selected	4 (Orange)
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-99 seconds
Power Consumption	DC5V:1.13W:31BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.03 kg ( 2.27 lb )
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
