4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)

Product Code : CS64US

Brand Category : Cable KVM Switches

Description

One USB console controls four USB computers

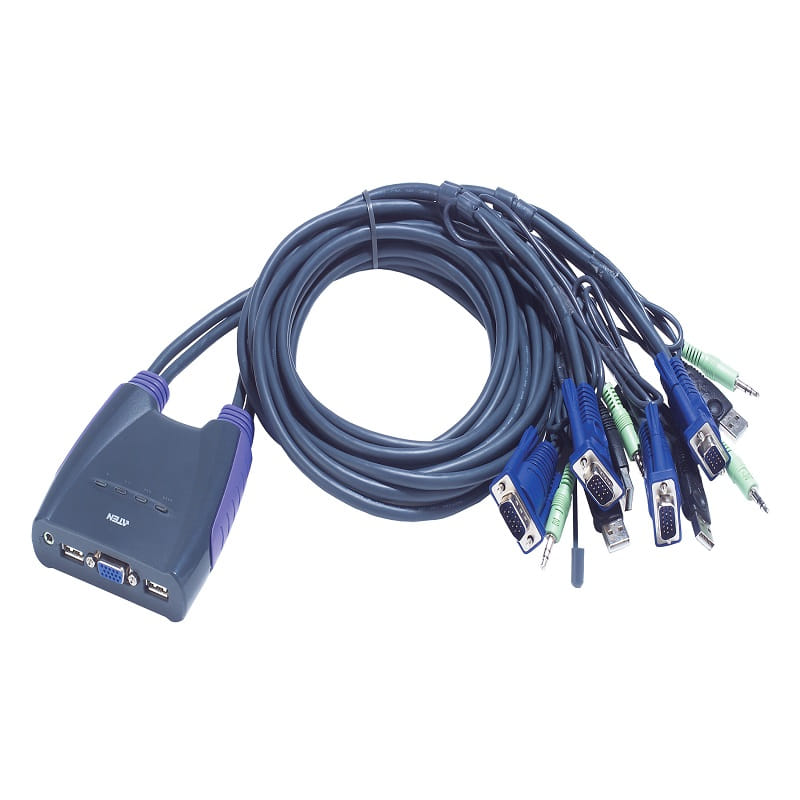

Compact design, built-in 0.9/1.2 m cables
Hotkey selection for OS and keyboard language
Computer Selection via hotkey
Multiplatform support – Windows, Linux, Mac, and Sun
Video DynaSync ™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
Supports multifunction and wireless keyboards and mice
All-in-one design
With speaker support
Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
Auto Scan function to monitor computer operation
Bus-powered
Sun/Mac keyboard support and emulation*
Firmware upgradable

* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

Technical Specification

Computer Connections	4
Port Selection	Hotkey
Connectors

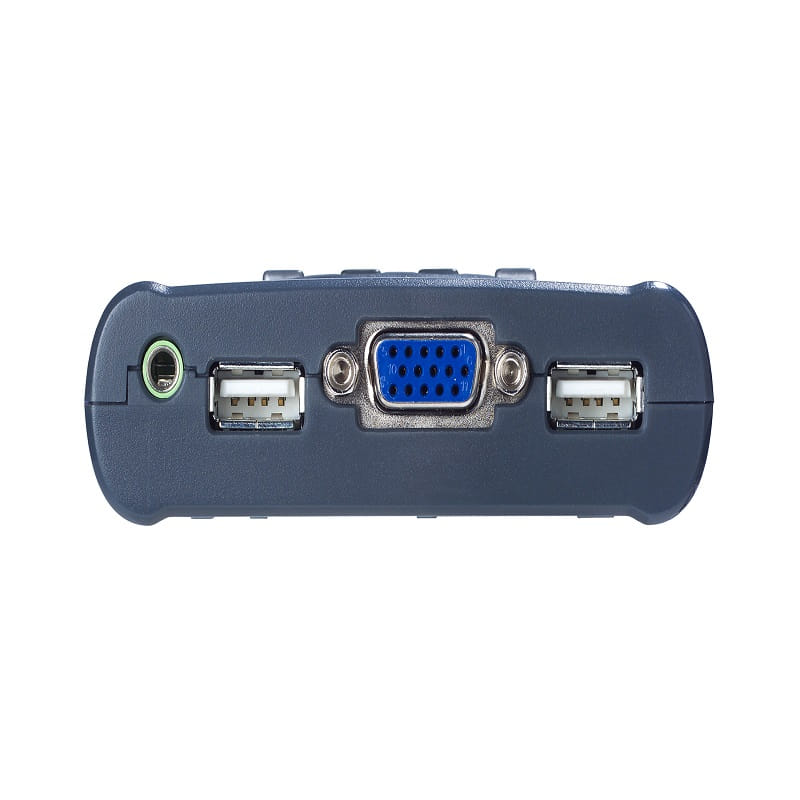

Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
KVM Ports	4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Male (Green)
LEDs
Selected	4 (Green)
Cable Length
Computer	2 x 0.9 m; 2 x 1.2 m
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-99 secs. (default 5 secs.)
Power Consumption	DC5V:0.9W:8BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.58 kg ( 1.28 lb )
Dimensions (L x W x H)	9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)
