4-Port USB VGA/Audio Cable KVM Switch (1.8m)

4-Port USB VGA/Audio Cable KVM Switch (1.8m)

Product Code : CS64U

Brand Category : Cable KVM Switches


Description


"

  • One USB console controls four USB computers
  • Compact design, built-in 1.8 m cables
  • Hotkey selection for OS and keyboard language
  • Computer Selection via hotkey
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
  • Supports multifunction and wireless keyboards and mice
  • All-in-one design
  • With speaker support
  • Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
  • Auto Scan function to monitor computer operation
  • Bus-powered
  • Sun/Mac keyboard support and emulation*
  • Firmware upgradable

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 4
Port Selection Hotkey
Connectors

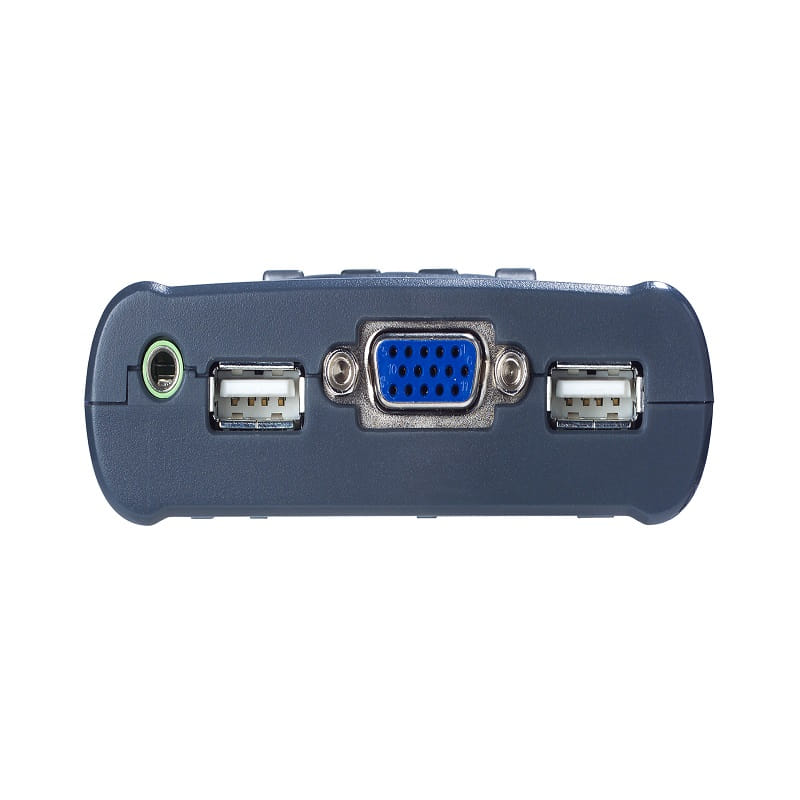

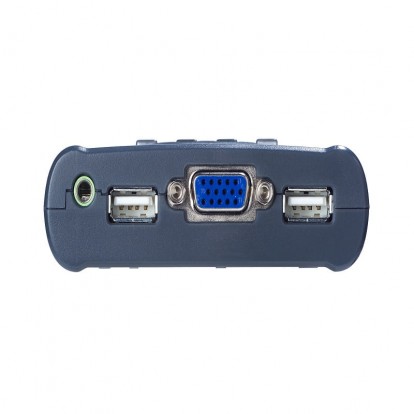

Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
KVM Ports 4 x HDB-15 Male (Blue)
4 x USB Type A Male
4 x 3.5mm Audio Jack Male (Green)
LEDs
Selected 4 (Green)
Cable Length
Computer 4 x 1.8 m
Emulation
Keyboard / Mouse USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-99 seconds
Power Consumption DC5V:0.9W:8BTU
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.73 kg ( 1.61 lb )
Dimensions (L x W x H) 9.41 x 9.72 x 2.60 cm
(3.7 x 3.83 x 1.02 in.)
