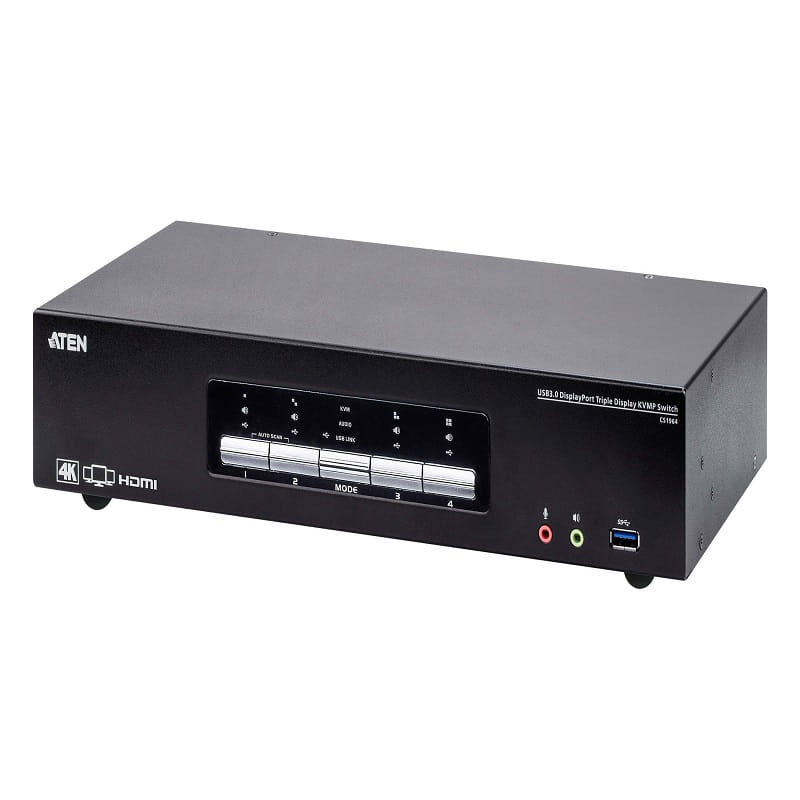

4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch

Product Code : CS1964

Brand Category : Desktop KVM Switches

Description

One USB keyboard/mouse and three HDMI monitors control four DisplayPort computers
Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
DisplayPort 1.2 compliant, HDMI compliant, HDCP 2.2 compliant
Computer selection via pushbuttons, hotkeys, mouse¹, and RS-232 Commands²
Supports N-key Rollover³ (NKRO) – permits collision-free keying
Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
Supports six displays by connecting two triple display KVM switches
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports Console keyboard emulation/bypass feature
Supports Console mouse emulation/bypass feature
Independent switching of KVM, USB peripheral, and audio focus⁴
Supports HD Audio⁴
Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB9 cable. Please refer to the CS1964 RS-232 Commands document.
3. N-key Rollover supports up to 15 simultaneous keystrokes.
4. HD audio through DisplayPort-HDMI cannot be switched independently.

Technical Specification

Computer Connections	4
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands

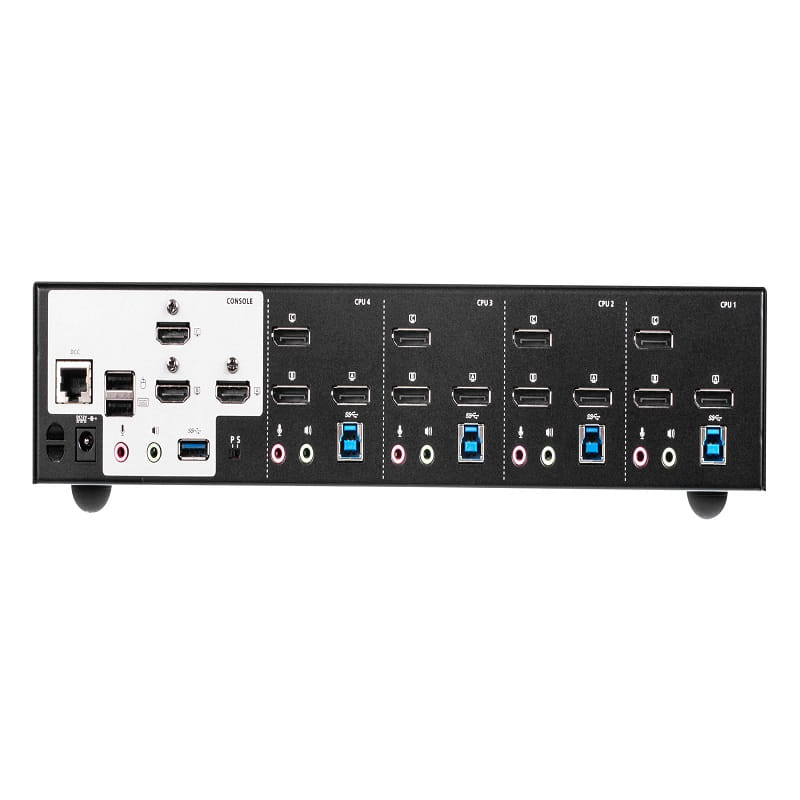

Connectors
Console Ports	2 x USB Type A Female 3 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports	4 x USB3.1 Gen1 Type B Female (Blue) 12 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports	1 x RJ-45 Female
Power	1 x DC Jack
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected	5 x Pushbutton
Station Selection	1 x Slide Switch
LEDs
USB Link	5 (Green)
Audio	5 (Green)
KVM	5 (Orange)
Emulation
Keyboard / Mouse	USB
Video	4096 x 2160 @ 60Hz; 2560 x 1440 @144Hz
Scan Interval	1-99 seconds (default: 5 seconds)
Power Consumption	DC12V:15.49W:115BTU
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.93 kg ( 4.25 lb )
Dimensions (L x W x H)	33.50 x 15.60 x 6.55 cm (13.19 x 6.14 x 2.58 in.)
Note	For a full video resolution supported list, please go to ATEN website > Product > Desktop KVM Switches, and scroll down to see Max. Resolution tab for more information.
