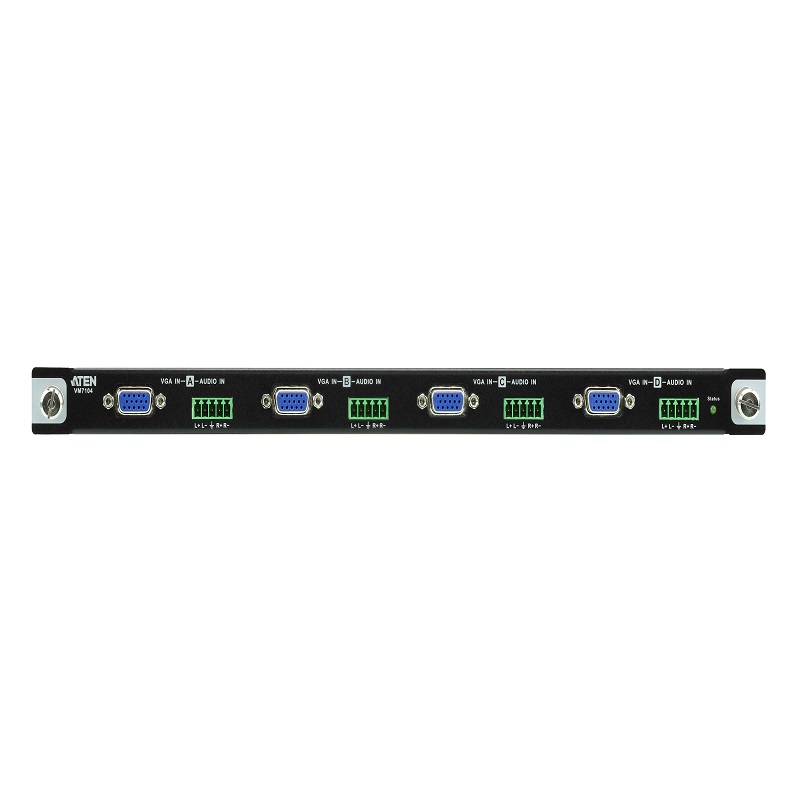

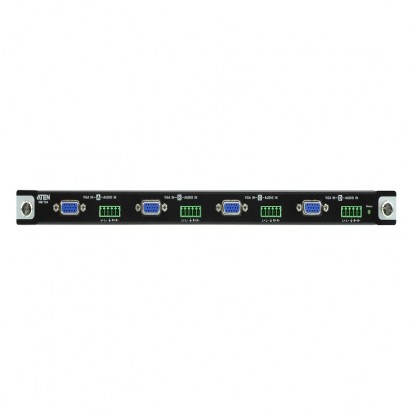

Product Code : VM7104
Brand Category : Video Matrix Switches
| Video Input | |
| Interfaces | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Max. Bandwidth | 300 MHz |
| Max. Resolution | Up to 1920 x 1200 |
| Max. Distance | 1.8 m |
| Audio Inputs | |
| Interfaces | 4 x Captive Screw Connectors, 5 pole * Audio signal type: stereo, balanced/unbalanced. |
| Power Consumption | 7.1W:33BTU |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.56 kg ( 1.23 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
| Note | Audio signal type support stereo, balanced/unbalanced. Balanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm ) Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.) |
