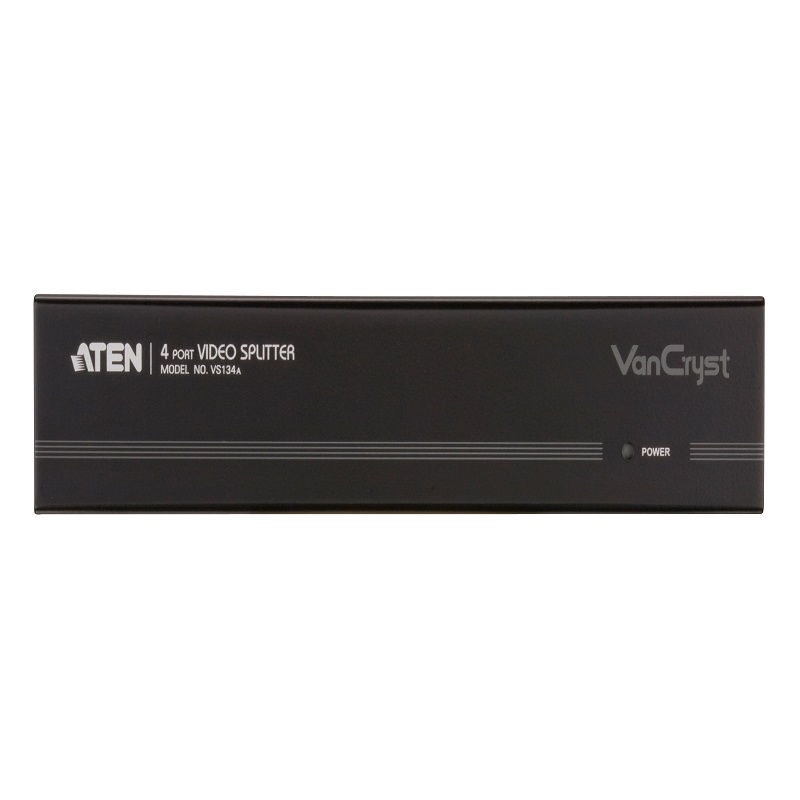

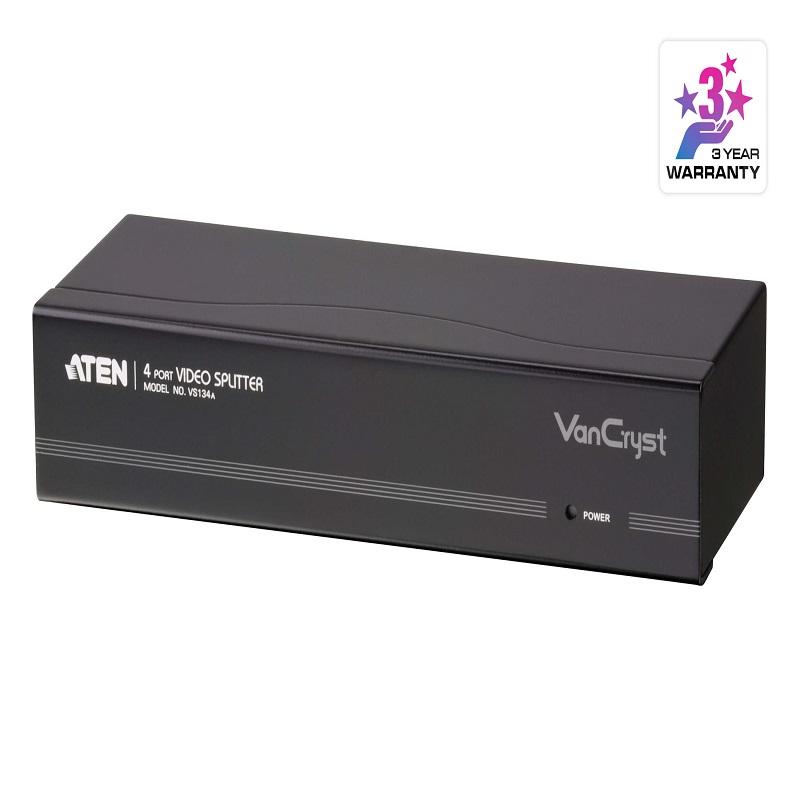

4-Port VGA Splitter (450MHz)

4-Port VGA Splitter (450MHz)

Product Code : VS134A

Brand Category : Video Splitters

Description

  • One video input to 4 video outputs
  • Supports up to 450 MHz bandwidth
  • Cascadable to 3 levels - provides up to 64 video signals
  • Long distance transmission - up to 30m *
  • Superior video quality - up to 2048 x 1536
  • Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
  • Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
  • All-metal casing

    * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces1 x HDB-15 Male (Blue)
Impedance75 Ω
Max. Distance1.8 m
Video Output
Interfaces4 x HDB-15 Female (Blue)
Impedance75 Ω
Video
Max. Bandwidth450 MHz
Max. ResolutionUp to 2048 x 1536
Max. DistanceUp to 30 m
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:0.9W:4BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.61 kg ( 1.34 lb )
Dimensions (L x W x H)20.00 x 7.51 x 4.40 cm
(7.87 x 2.96 x 1.73 in.)
Carton Lot20 pcs
