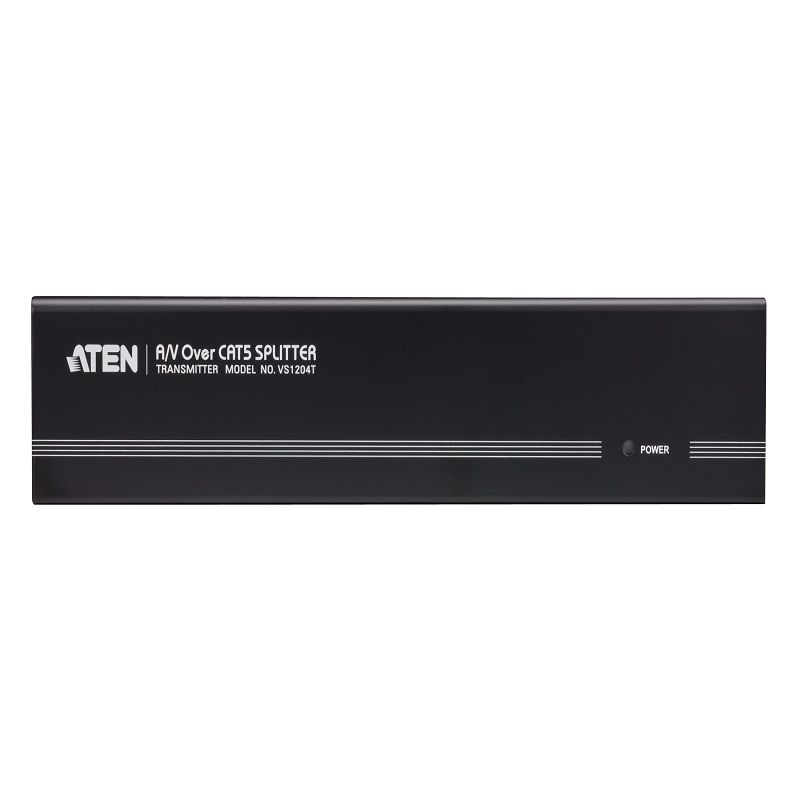

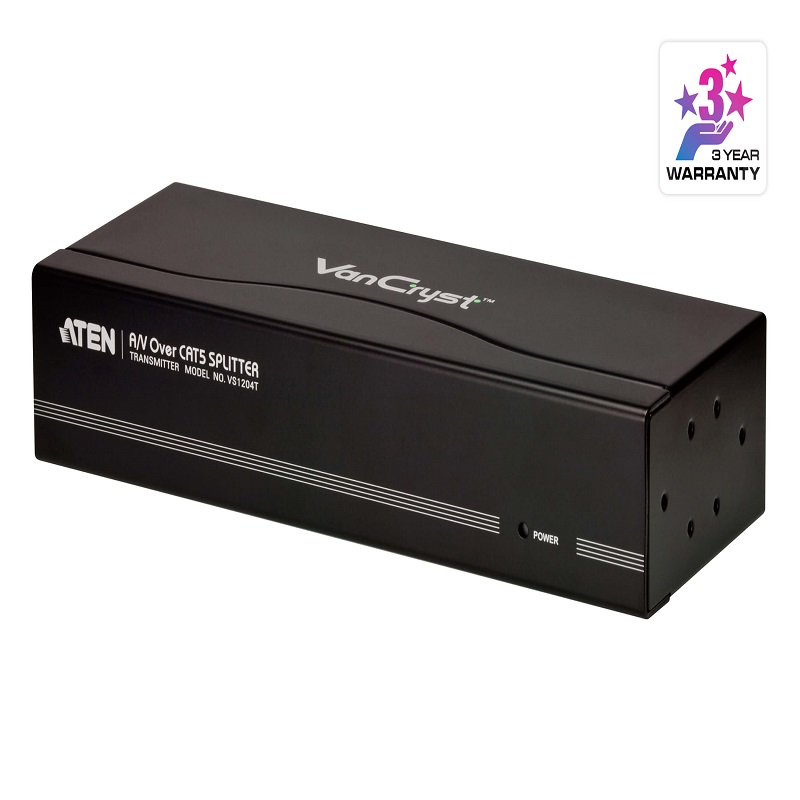

Product Code : VS1204T
Brand Category : Video Splitters
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) - Local Output 4 x RJ-45 Female |
| Impedance | 75 Ω |
| Video | |
| Max. Bandwidth | 225 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200@60Hz@150m; 1280 x 1024@60Hz@300m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 1 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5.3V:3.55W:17BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.59 kg ( 1.3 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.) |
| Carton Lot | 5 pcs |
