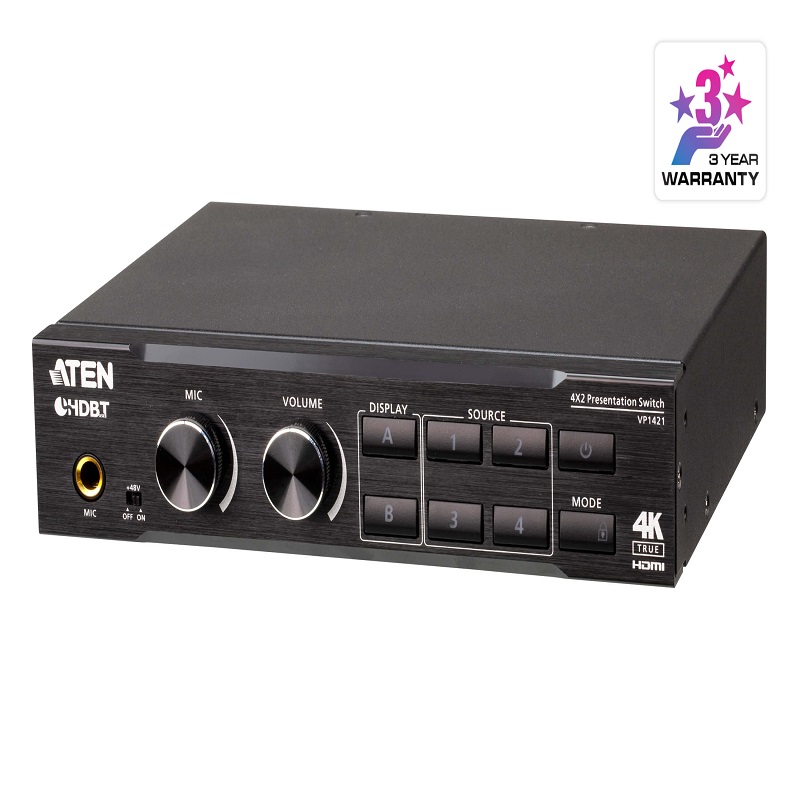

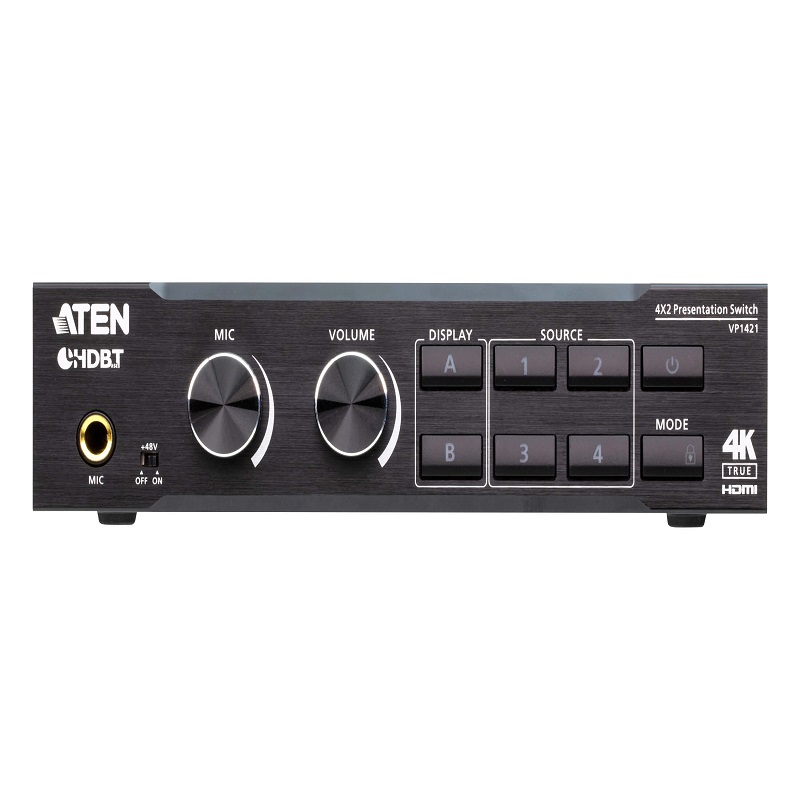

4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite

4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite

Product Code : VP1421

Brand Category : Presentation Switches

Description

  • Analog/Digital AV Matrix Switching
    • Supports multi-format 4 Inputs – 2 HDMI, 1 HDBaseT, and 1 VGA inputs
    • 1 HDMI and 1 HDBaseT outputs
    • Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and optical audio outputs
    • Audio de-embedding – HDMI/HDBaseT audio can be extracted to stereo line out
    • Built-in Audio DSP – supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
    • Automatically reduces program audio when a microphone signal is detected
    • Auto switching – automatically detects and switches to a new source as soon as it is connected



  • High-definition Video with Optimum Output
    • Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT)
    • Supports 4K HDR
    • Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
    • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant



  • Versatile, Streamlined Operation
    • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
    • View and control via ATEN Video Presentation Control App in a swift and agile way
    • Bi-directional RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
    • Supports stand-by mode for power saving and fast waking up
    • Consumer Electronics Control (CEC) support
    • Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad



  • Extended Transmission over One Cable
    • Long-distance transmission – transmit digital AV signal, bi-directional RS-232, and IR control signals up to 140m* via Cat 6/6a or ATEN 2L-2910 Cat 6 cables
    • Power over HDBaseT (POH) – remote powering over existing communication cable with selectable powering device
      Note: This is achieved using both the HDBaseT In and the HDBaseT Out ports on the VP1421, each extending the transmission up to 70m.

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces2 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female (Blue)
1 x HDBaseT (RJ-45) Female (Silver) with selectable PoH
Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
VGA: 1080p@60Hz at 15m
HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video Output
Interfaces1 x HDMI Type A female (Black)
1 x HDBaseT (RJ-45) Female (Silver) with selectable PoH
Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video
Max. ResolutionHDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
VGA: Up to 1080p@60Hz
HDBaseT: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
ComplianceHDMI (3D, Deep Color, 4K); 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Audio
InputStereo Audio (HDMI/HDBT): 1 x mini stereo Jack female (Green)
Stereo Audio (VGA): 1 x mini stereo Jack female (Green)
Microphone: 1 x 6.3mm Jack connector (with selectable phantom power)
OutputLine Out (Unbalanced): 1 x Captive Screw Connector, 3-pole
Optical Audio: 1 x Toslink (Black)
Control
RS-2321 x Captive Screw Connector, 3-pole
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female (Silver)
Contact In1 x Captive Screw Connector, 5-pole
LED Out1 x Captive Screw Connector, 5-pole
LED out power: +5 VDC, 0.2 A
IR ChannelHDBaseT In : 1 x Mini Stereo Jack Female (Black)
HDBaseT Out : 1 x Mini Stereo Jack Female (Black)
RS-232 ChannelHDBaseT In : 1 x Captive Screw Connector, 3-pole
HDBaseT Out : 1 x Captive Screw Connector, 3-pole
Switches
Power1 x Pushbutton (LED: Green / Orange)
1 x Slide Switch (+48V Phantom Power)
1 x Slide Switch (PoH)
Video Input Port Selection4 x Pushbutton (LED: Green)
Video Output Port Selection2 x Pushbutton (LED: Orange)
SelectionMic: 1 x Knob
Volume: 1 x Knob
Mode / Unlock: 1 x Pushbutton
EDID SettingsEDID Mode: ATEN Default / Display A / Remix
Connectors
Power1 x DC Jack (Black)
Power ConsumptionDC12V:14.93W:110BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight1.16 kg ( 2.56 lb )
Dimensions (L x W x H)20.00 x 17.01 x 4.40 cm
(7.87 x 6.7 x 1.73 in.)
Carton Lot3 pcs
