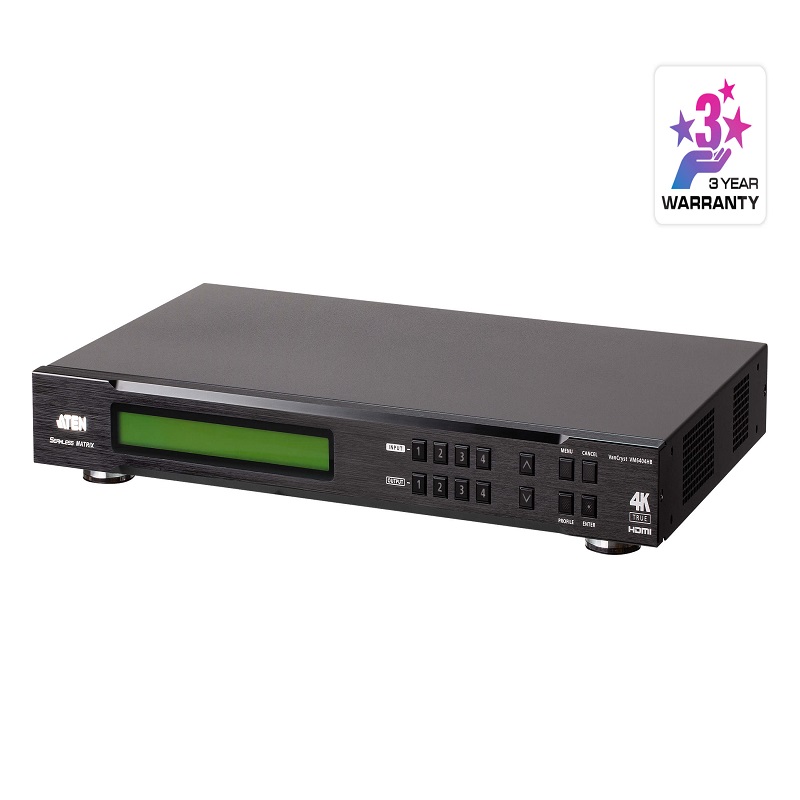

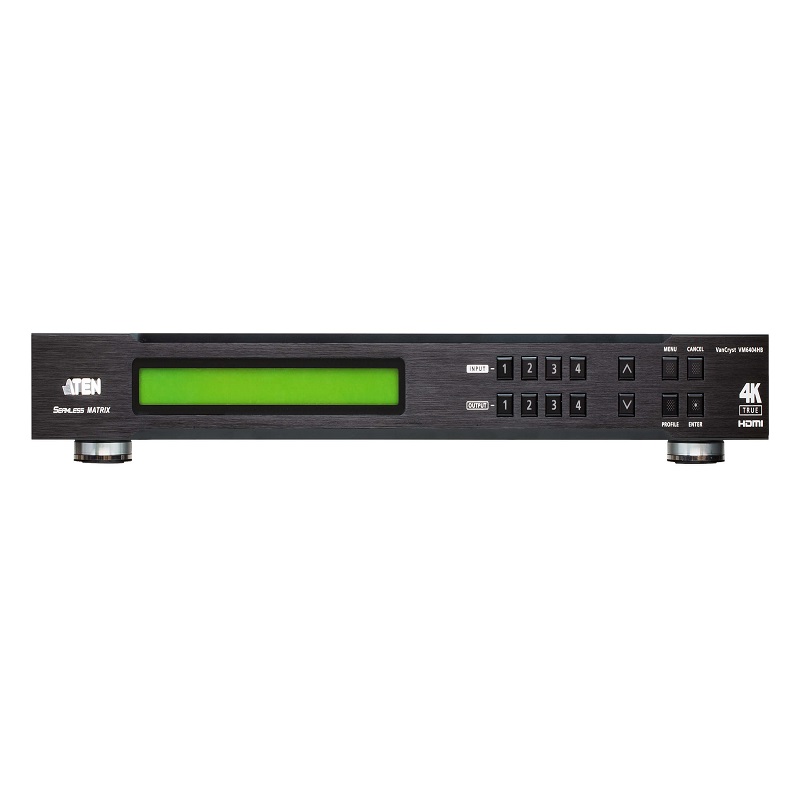

4 x 4 True 4K HDMI Matrix Switch with Scaler

4 x 4 True 4K HDMI Matrix Switch with Scaler

Product Code : VM6404HB

Brand Category : Video Matrix Switches

Description

  • 4 x 4 HDMI input/output connections
  • Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • True 4K Resolutions –handles uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)
  • 4K Scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions
  • Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
  • True 4K EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
  • FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
  • Audio-enabled – HDMI audio can be extracted to stereo audio
  • HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
  • Consumer Electronics Control (CEC) support
  • ESD protection for HDMI
  • Rack-mountable (1U design)

    *Note:
    1.When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats,make sure to disable Seamless Switch™.
    2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5.0 m
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5.0 m
Video
Max. Data Rate 18.0 Gbps (6.0 Gbps per lane)
Max. Pixel Clock 600 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance Up to 5.0 m
Audio
Output 1x Mini Stereo Jack Female
Control
RS-232 Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power 1 x 3-prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC;50-60Hz;1.0A
Power Consumption AC110V:43.7W:205BTU
AC220V:43.1W:202BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 3.52 kg ( 7.75 lb )
Dimensions (L x W x H) 43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Carton Lot 1 pc



Videowall matrix Switch



WTC Systems LLC is here with the advanced videowall matrix switch solutions in the UAE. Our advanced switches are designed to manage and control multiple video sources across large display walls with exceptional precision and flexibility. Whether for command centres, control rooms, or expansive commercial displays, our solutions ensure seamless video switching and distribution across multiple screens.



With advanced features such as real-time signal processing, personalized layouts, and easy mixing with different AV systems, our solutions ensures that your visual content is delivered with clarity and impact.



Select WTC Systems LLC for trustworthy and high-performance videowall matrix switch solutions. The solution ensures excellent visual communication and creates impressive viewing experiences.
