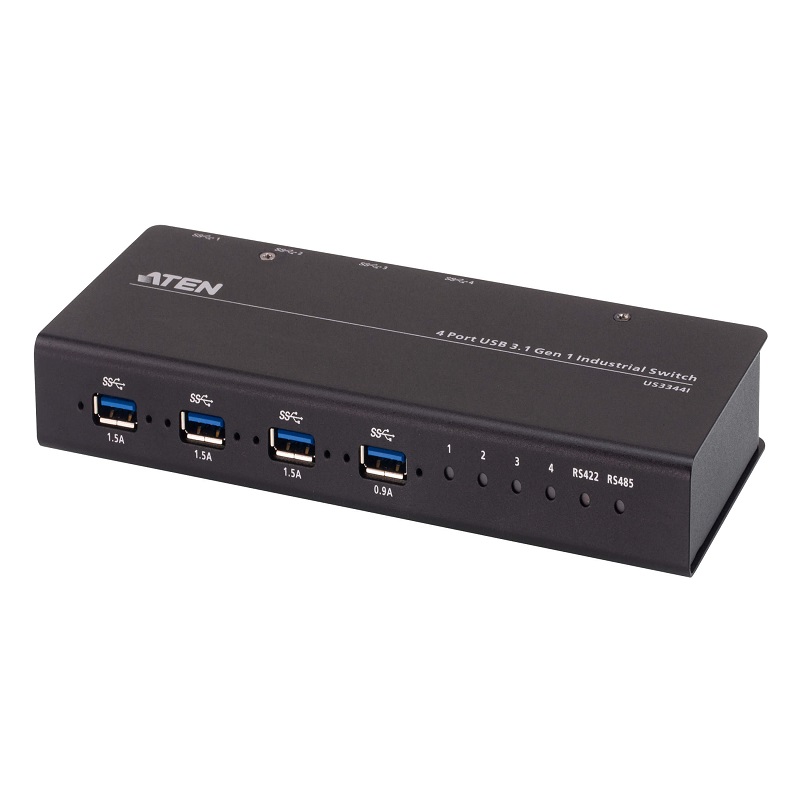

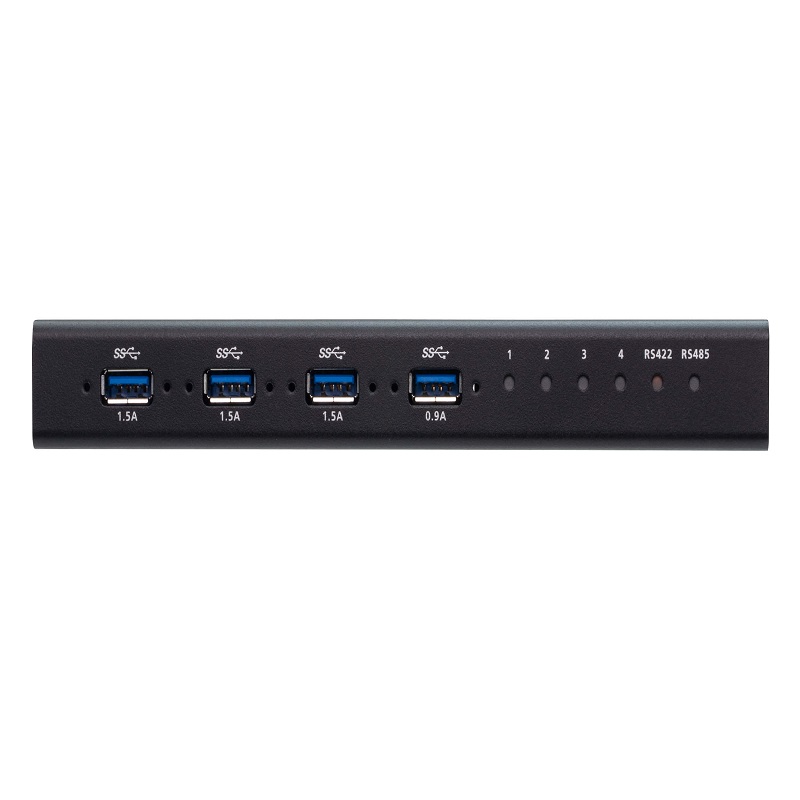

4 x 4 USB 3.2 Gen 1 Industrial Hub Switch

Product Code : US3344I

Brand Category : Docks and Switches

Description

Enables four computers to share USB peripheral up to four devices
USB 3.2 Gen 1 compatibility with maximum data transfer rates up to 5 Gbps
Multiplatform support - Windows, Mac and Linux
Displays port focus via LED indicators
Metal mechanical cassis with wall mountable design
Supports aftermarket USB M2 screw locking cable
Supports port selection via remote controller or RS-422 / RS-485 link through 5-pin terminal block
Supports hot plugging
Supports DC 9 - 24V power input through terminal block*
Supports USB BC 1.2 and over current protection
Power on detection
– The computer focus automatically switches to a newly plugged-in or powered-on computer
– The computer focus automatically switches to port 1 when the focused computer is unplugged or powered-off
Firmware upgradable

*Supports either of the following, power supplies:
1. DC terminal block
2. DC power jack (available for purchase separately from your closest ATEN dealer.Part No.: 0AD8-8012-33MG)

Technical Specification

Computer Connections	4
Connectors
Computer	4 x USB Type B Female (Blue)
Device	4 x USB Type A Female (Blue)
Serial	1 x 5-pin Terminal Plug (Green)
Power	1 x 2-pin 9-24V Terminal Plug (Green)
Power (Optional)	1 x 12V DC Jack Female (Black)
Power Consumption	DC12V:0.376W:117 DC24V:0.48W:117
Power Mode	Terminal Block / DC Jack Power Adapter* *DC Jack Power Adapter is available for purchase separately from your closest ATEN dealer. Part No.: 0AD8-8012-33MG
Port Selection	Remote port selector / Serial command
LEDs
Selected	4 (Green)
Serial	RS422 (Orange ) RS485 (Green )
Cable Length
USB Cable	2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.2M 2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.8M
Remote Port Selector	1.8 m
Environmental
Humidity	0–80% RH, Non-condensing
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Physical Properties
Housing	Metal
Weight	0.51 kg ( 1.12 lb )
Dimensions (L x W x H)	20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
