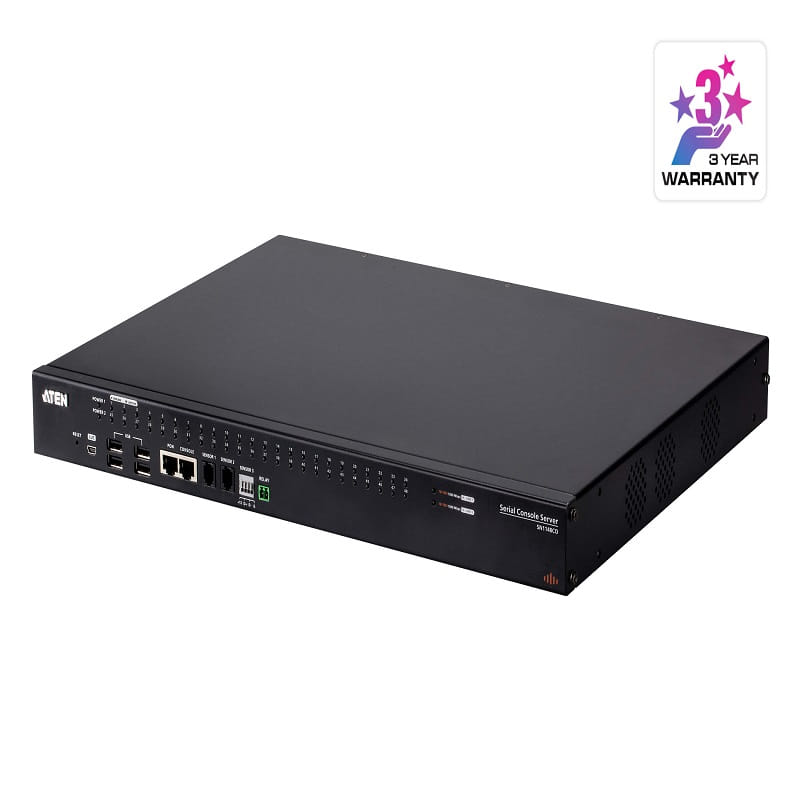

48-Port Serial Console Server with Dual Power / SFP

48-Port Serial Console Server with Dual Power / SFP

Product Code : SN1148CO

Brand Category : Serial Console Servers


Description


"

  • System Accessibility and Availability
    • Secure in-band, out-of-band remote serial console and USB console2 access
    • Browser access with an intuitive GUI
    • Terminal-based access with a menu-driven UI or command-line interface
    • Modem dial-in / dial-back / dial-out access
    • Front USB ports for storage, USB console1, and UC232B connection2
    • Laptop USB Console (LUC) port for local console access via laptop2
    • Dual Ethernet ports allow fail control or dual IP address access2
    • Dual power supply2




<!-- Features List-2 -->

  • Serial Console Management
    • Support sensor ports for environmental monitoring3
    • Relay port supports cabinet door access control
    • Auto-sensing DTE / DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
    • Online / Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
    • Response Check – checks the system status of the connected serial devices, and sents a notification if the check fails (e.g.system crash)
    • Convenient and simple serial device access via selectable Telnet / SSH and third-party clients such as PuTTY
    • Easy port access via selectable ActiveX, Java serial viewer or WebClient
    • Comprehensive viewer functions – copy / paste, logging, data import, macros, broadcasting and message board
    • Sun Solaris ready – Sun ""break-safe""
    • Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and / or an email
    • Command filter – administrators can restrict users to execute only pre-defined commands
    • Multiple users can simultaneously access the same port – up to 16 connections per port
    • Modes for simultaneous access – Exclusive / Occupy / Share mode




<!-- Features List-3-->

  • Security
    • Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
    • Configurable user permissions for port access and control
    • Local and remote authentication and login
    • Third-party authentication via RADIUS, TACACS+, LDAP / AD and Kerberos
    • IP and MAC address filter for enhanced security protection
    • High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
    • Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control




<!-- Features List-4 -->

  • System Management
    • System configuration via web browser, Telnet / SSH client and local console
    • System log and event login
    • Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive2
    • SNMP agent v1 / v2 / v3
    • Event notification – supports notification of SMTP email and SNMP Trap
    • Backup / Restore system configuration and upgradeable firmware
    • Multi-browser support – Internet Explorer, Chrome, Firefox
    • NTP for time server synchronization
    • IPv4 / IPv6 support
    • LLDP support
    • CLI (command-line interface) support
    • Integrates into CC2000 software for centralized data center management
    • Integrates into CCVSR software for user session recording




<!-- Features List-5 -->

  • Virtual Media
    • Serial Device Management
    • Serial operation modes – Console Management, Console Management Direct, Real COM Port, TCP Server / Client, UDP Server / Client, and Virtual Modem
    • Real COM driver for Windows 2000 or higher and Windows Server 2003 / 2008
    • Real TTY driver for Linux
    • Fixed TTY driver for UNIX4
    • Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps




<!-- Features List-6 -->

  • Language
    • Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

      Note:
      1. Compatible models: Cisco Catalyst 2960-C series
      2. SN11xxCO / SN11xxCOD only
      3. This is achieved using ATEN sensors
      4. Fixed TTY Driver supports:
      – OpenServer (Sco Unix)
      – UnixWare 7, SVR 5
      – UnixWare 2.1, SVR 4.2
      – QNX 4.25, QNX 6
      – FreeBSD
      – Solaris 10
      – AIX 5.x
      – HP-UX 11i

"
