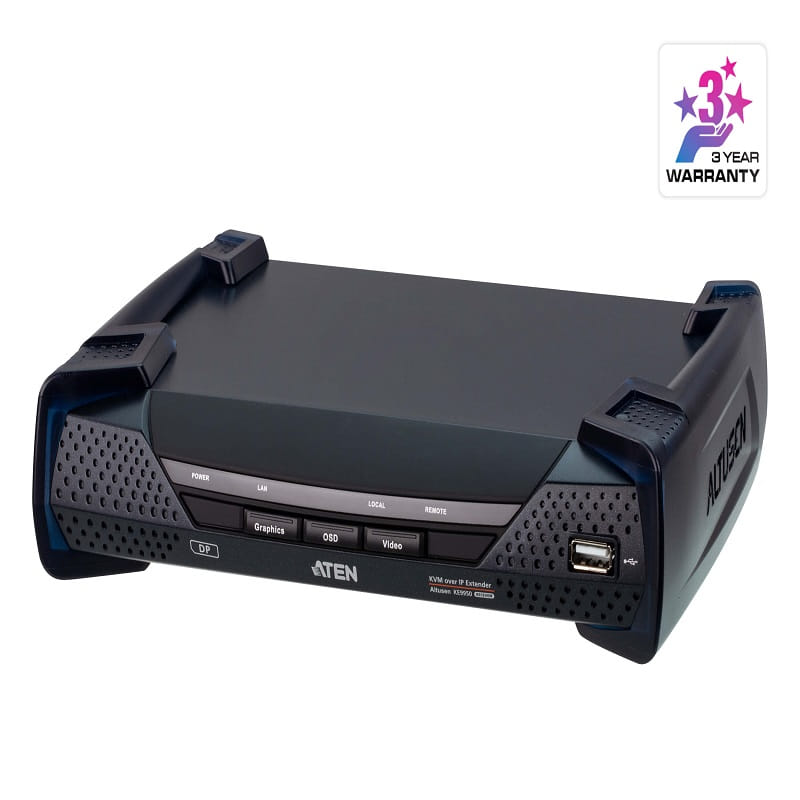

4K DisplayPort Single Display KVM over IP Receiver

• Advanced Features*
  • ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
  • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
  • “Push” and “Pull” – share content instantly to/from a single Rx or video wall by just one click
  • Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
  • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
  • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
  • Support both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
  • Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
  • Configurable user and group permissions for access and control of KE devices
  • Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
  • Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**
    * These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by KVM over IP Matrix Manager (CCKM)
    **The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

• Hardware
  • Support 32:9 ultra-wide resolution
  • Supports DisplayPort video resolutions up to 3840 x 2160 @ 30Hz (4:4:4) ; 24-bit color depth
  • Supports digital video output
  • Compliant with DP 1.2
  • Supports stereo speakers and stereo microphone
  • High speed USB Storage Transmission support
  • Auto-MDIX – automatically detects cable type
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Fanless design for silent operations that are energy efficient
  • Supports connection via Gigabit Ethernet port (RJ-45) or SFP port for failover
  • Support 1Gbps SFP fiber module expansions***up to 10 km
  • Power Redundancy – Dual DC Jack
  • Rack Mountable – Mounting options:
    • 2X-021G Dual Rack Mount Kit
    • 2X-031G Single Rack Mount Kit
  • An industrial-grade power adapter included - supports operating temperature of 0°C – 50°C to ensure durability and adaptability under harsh environmental conditions

    ***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.

• Management
  • Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
  • Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
  • Local console for emergency operation
  • OSD (On Screen Display) on the Receiver configures both Tx / Rx devices
  • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
  • On-screen Preview – allows users to view the video of up to 36 displays on one screen
  • Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
  • CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
  • RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
  • Compatible with all KE devices

• Security
  • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
  • Secure data transmission – 128-bit AES encryption to secure all data before it’s transmitted over a network and decrypts the data on the receiver
  • Supports industry standard Transport Layer Security (TLS) protocol

• Virtual Media
  • USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
  • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Supports Smart Card/CAC Reader

"
