4K DisplayPort Single Display KVM over IP Transmitter with PoE

4K DisplayPort Single Display KVM over IP Transmitter with PoE

Product Code : KE9952T

Brand Category : KVM EXTENDER


Description


  • Advanced Features*
    • ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
    • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
    • “Push” and “Pull” – share content instantly to/from a single Rx or video wall by just one click
    • Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
    • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
    • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
    • Support both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
    • Configurable user and group permissions for access and control of KE devices
    • Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
    • Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**
      * These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by KVM over IP Matrix Manager (CCKM)
      **The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

  • Hardware
    • Support 32:9 ultra-wide resolution
    • Supports DisplayPort video resolutions up to 3840 x 2160 @ 30Hz (4:4:4) ; 24-bit color depth
    • Supports digital video output
    • Compliant with DP 1.2 and HDCP 1.3
    • Supports stereo speakers and stereo microphone
    • High speed USB Storage Transmission support
    • Auto-MDIX – automatically detects cable type
    • Built-in 8KV/15KV ESD protection and 2KV surge protection
    • Fanless design for silent operations that are energy efficient
    • Supports connection via Gigabit Ethernet port (RJ-45) or SFP port for failover
    • Support 1Gbps SFP fiber module expansions***up to 10 km
    • Power Redundancy – DC Jack + PoE
    • Support Power over Ethernet (PoE) function – compliant with the IEEE 802.3at standard
    • Rack Mountable – Mounting options:
      • 2X-021G Dual Rack Mount Kit
      • 2X-031G Single Rack Mount Kit

  • Management
    • Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
    • Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
    • Local console for emergency operation
    • OSD (On Screen Display) on the Receiver configures both Tx / Rx devices
    • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
    • On-screen Preview – allows users to view the video of up to 36 displays on one screen
    • Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
    • CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
    • RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
    • Compatible with all KE devices

  • Security
    • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
    • Secure data transmission – 128-bit AES encryption to secure all data before it’s transmitted over a network and decrypts the data on the receiver
    • Supports industry standard Transport Layer Security (TLS) protocol

  • Virtual Media
    • USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
    • Supports Smart Card/CAC Reader

Add to Query Cart PDF Download


Technical Specification


Connectors
Console Ports 2 x USB Type A Female (White)
1 x DisplayPort Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)

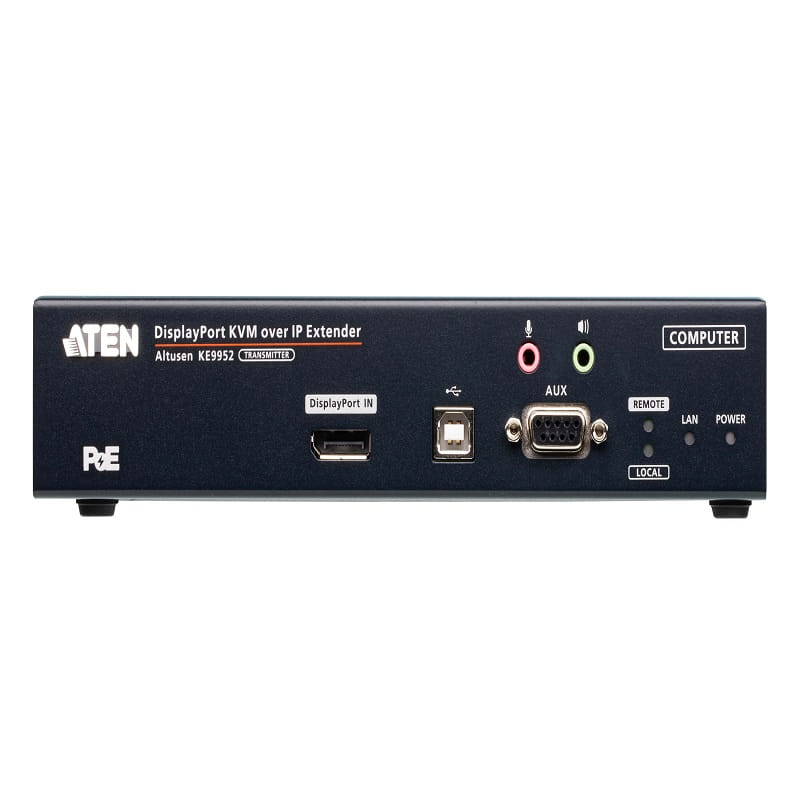

KVM Ports 1 x USB Type B Female (White)
1 x DisplayPort Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black, PoE)
1 x SFP Slot
Switches
OSD N/A
Video N/A
Graphics N/A
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse USB
Power Consumption POE:11.88W:60BTU
Video Resolution Up to 3840 x 2160 @ 30Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.15 kg ( 2.53 lb )
Dimensions (L x W x H) 21.50 x 16.29 x 4.18 cm
(8.46 x 6.41 x 1.65 in.)
