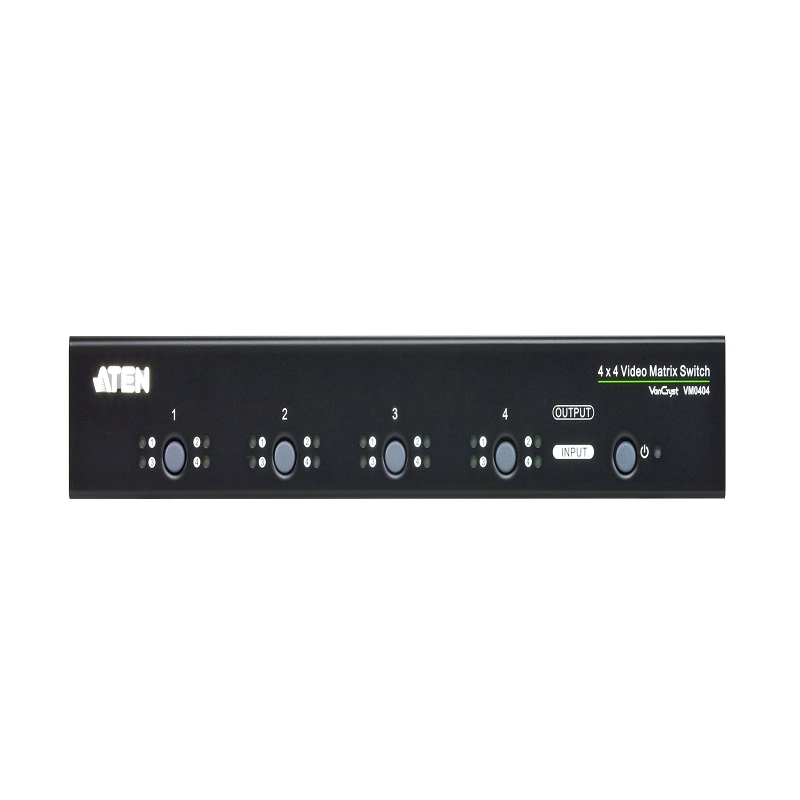

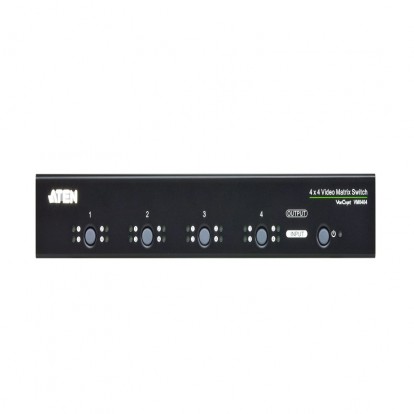

4x4 VGA/Audio Matrix Switch

Product Code : VM0404

Brand Category : Video Matrix Switches

Description

Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
Long distance transmission – up to 30m
Easily switch between multiple sources and multiple displays
Easy Operation:
• Front panel pushbuttons
• RS-232 serial controller
Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
Supports up to 300 MHz bandwidth for high performance video
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
Built-in bi-directional RS-232 serial port for high-end system control*
Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
Rack Mountable
All-metal casing
* Note: The VM0404 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

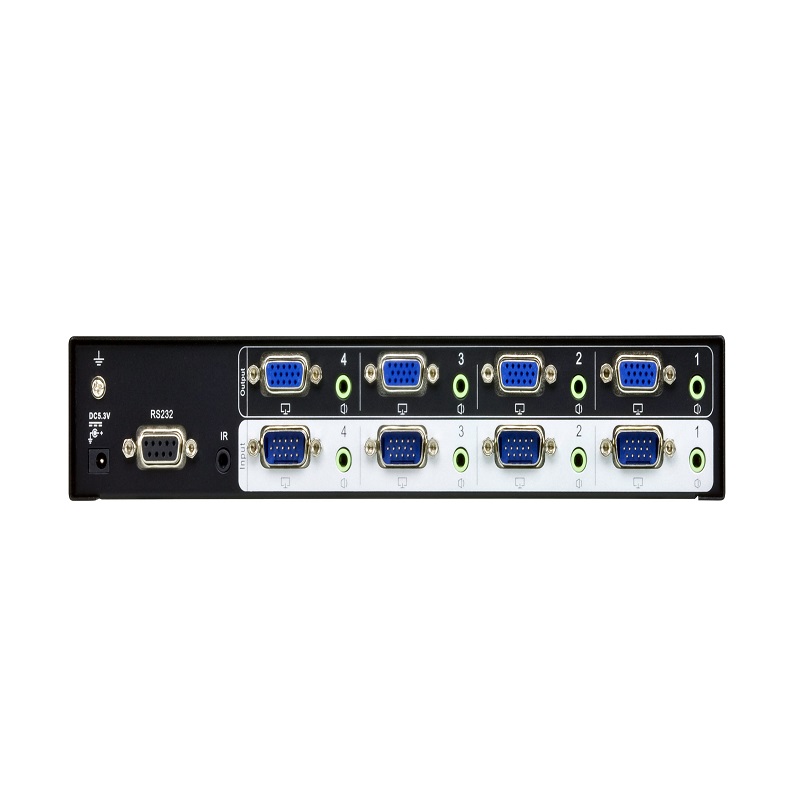

Video Input
Interfaces	4 x HDB-15 Male (Blue)
Impedance	75 Ω
Max. Distance	1.8 m
Video Output
Interfaces	4 x HDB-15 Female (Blue)
Impedance	75 Ω
Max. Distance	30 m
Video
Max. Bandwidth	300 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 30 m
Audio
Input	4 x Mini Stereo Jack Female (Green)
Output	4 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
EDID Settings	EDID Mode: Default / Port1 / Remix / Auto
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5V:2.54W:12BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.87 kg ( 1.92 lb )
Dimensions (L x W x H)	26.00 x 7.61 x 4.40 cm (10.24 x 3 x 1.73 in.)
Carton Lot	5 pcs
