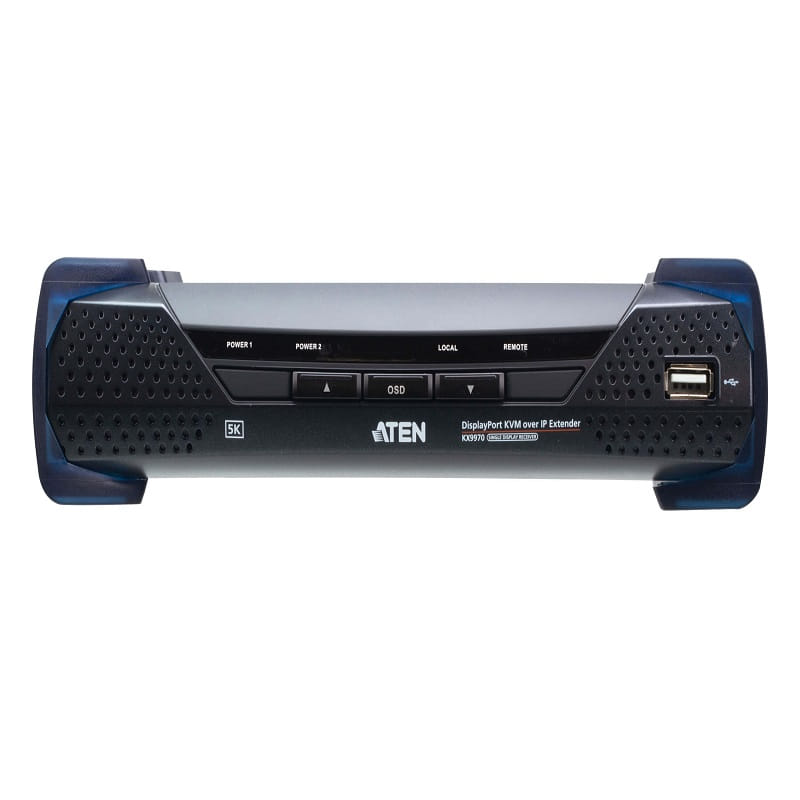

5K DisplayPort KVM over IP Receiver

5K DisplayPort KVM over IP Receiver

Product Code : KX9970R

Brand Category : KVM EXTENDER


Description


"

  • Advanced Features 1
    • Lossless video compression up to 5120 x 2880 including UHD or DCI with zero latency
    • Native DP signal processing with color depth 24, 30, 36 bits
    • Supports Adobe RGB
    • Supports USB isochronous transfer to enable USB camera and USB speaker usage between transmitter and receiver
    • ATEN Matrix Link – allows users to instantly link transmitters and receivers to perform real-time port and profile switching on an iPad
    • Boundless Switching – simply moves the mouse cursor across screen borders to switch between different receivers (Rx)
    • Push and Pull – shares content instantly to/from a single Rx or video wall by just one click
    • Video walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
    • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
    • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
    • Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings – administrators can set up to four access modes on Tx devices for collaboration or prevention of interference among users
    • Configurable user and group permissions for access and control of KX devices
    • Tx grouping of up to 4 sets of KX transmitters to support multi-display applications
    • Rx access control – users at the Tx local console can enable / disable Rx control privilege by simply pressing a control button2

      Note:
      1. These advanced functions are supported when the KX transmitters are paired with KX receivers and managed by CCKM.
      2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.




<!-- Features List-2 -->

  • Hardware
    • Supports 32:9 ultra-wide resolution
    • Supports DisplayPort video resolutions – up to 5120 x 1440 @ 60 Hz (4:4:4), 5120 x 2880 @ 30 Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:4:4), 1920 x 1080 @ 240 Hz (4:4:4) (CVT-RB), 2560 x 1440 @ 144 Hz (4:4:4)
    • DisplayPort 1.2
    • Stereo speakers and microphone support
    • High speed USB Storage Transmission support
    • Auto-MDIX – automatically detects cable type
    • Built-in 8 kV / 15 kV ESD protection and 2 kV surge protection
    • Supports power redundancy – KX9970R has 2 DC jacks for power redundancy
    • Supports network failover – 1 RJ-45 & 2 SFP+ slots for network failover to ensure constant availability for mission-critical applications
    • Supports 10-Gbps SFP+ fiber module expansions for up to 10 km*
    • Rack Mountable – Mounting options:
      - 2X-021G Dual Rack Mount Kit
      - 2X-031G Single Rack Mount Kit
    • Includes an industrial-grade power adapter – supports operating temperature of 0-50 °C to ensure durability and adaptability under harsh environmental conditions
      Note: *The SFP+ module (2A-141G / 2A-142G) is sold separately. Contact your ATEN dealer for product information.




<!-- Features List-3-->

  • Management
    • Integration with KVM over IP Matrix Manager (CCKM) – a software enabling easy configurations of all KX devices with an intuitive web-based GUI
    • Dual console operation – controls user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse
    • OSD (On Screen Display) – enables configuration of both Tx / Rx devices on the receiver’s display screen
    • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
    • On-screen Preview (Panel Array™ Mode) – allows users to view the video of up to 36 displays on one screen
    • Video Compression Level – allows users to increase / decrease the video quality to adjust for appropriate network bandwidth
    • Command Line Interface – administrators can control all KX devices via RS-232 or Telnet by issuing commands or 3rd-party application
    • Supports Hotkey Commands
    • RS-232 serial ports – allows users to connect to a serial terminal for TextMenu, CLI, or to serial devices such as touch screens and barcode scanners
    • All KX Tx models are compatible to be used with all Rx models




<!-- Features List-4-->

  • Security
    • Dedicated LAN port for KX direct connections – can be isolated from the corporate network
    • Secured data transmission – 256-bit AES encryption for all data being transmitted from the transmitter to the receiver
    • Supports industry standard Transport Layer Security (TLS) protocol




<!-- Features List-5-->

  • Virtual Media
    • Virtual Media mode enhances data transmission performance, and is ideal for file transfers, OS patching, software installations and diagnostic testing
    • Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
    • Supports smart card / CAC reader

"


Add to Query Cart PDF Download


Technical Specification


Connectors
USB Port 2 x USB Type A Female (White)
Console Ports 2 x USB Type A Female (White)
1 x DisplayPort Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
Power 2 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
2 x SFP+ Slot
Switches
OSD 1 x Pushbutton
Port (Up) 1 x Pushbutton
Port (Down) 1 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
LEDs
1000/10000 Mbps 1 (1000: Orange / 10000: Green)
Power 2 (Green)
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse USB
Power Consumption DC12V;20.48W;137BTU
Video Resolution Up to 5120 x 2880 @ 30Hz, 5120 x 1440 @ 60Hz, 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144hz, 1920 x 1080 @ 240Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.38 kg ( 3.04 lb )
Dimensions (L x W x H) 22.60 x 22.40 x 5.30 cm
(8.9 x 8.82 x 2.09 in.)
