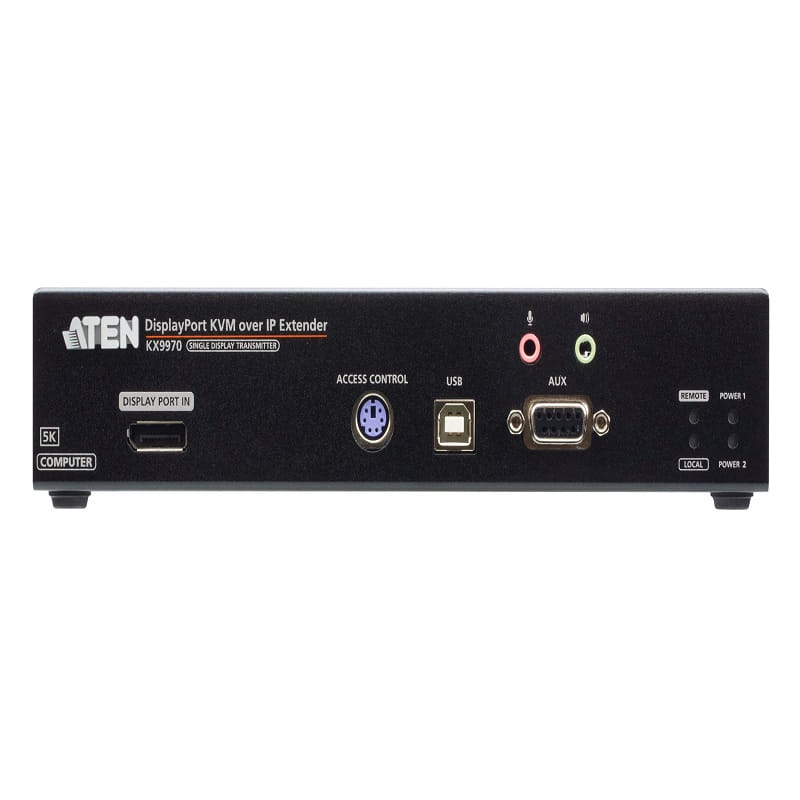

5K DisplayPort KVM over IP Transmitter

"

• Advanced Features ¹
  • Lossless video compression up to 5120 x 2880 including UHD or DCI with zero latency
  • Native DP signal processing with color depth 24, 30, 36 bits
  • Supports Adobe RGB
  • Supports USB isochronous transfer to enable USB camera and USB speaker usage between transmitter and receiver
  • ATEN Matrix Link – allows users to instantly link transmitters and receivers to perform real-time port and profile switching on an iPad
  • Boundless Switching – simply moves the mouse cursor across screen borders to switch between different receivers (Rx)
  • Push and Pull – shares content instantly to/from a single Rx or video wall by just one click
  • Video walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
  • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
  • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
  • Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+
  • Advanced User Authorization Settings – administrators can set up to four access modes on Tx devices for collaboration or prevention of interference among users
  • Configurable user and group permissions for access and control of KX devices
  • Tx grouping of up to 4 sets of KX transmitters to support multi-display applications
  • Rx access control – users at the Tx local console can enable / disable Rx control privilege by simply pressing a control button²

    Note:
    1. These advanced functions are supported when the KX transmitters are paired with KX receivers and managed by CCKM.
    2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

<!-- Features List-2 -->

• Hardware
  • Support 32:9 ultra-wide resolution
  • Supports DisplayPort video resolutions – up to 5120 x 1440 @ 60 Hz (4:4:4), 5120 x 2880 @ 30 Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:4:4), 1920 x 1080 @ 240 Hz (4:4:4) (CVT-RB), 2560 x 1440 @ 144 Hz (4:4:4)
  • DisplayPort 1.2
  • Stereo speakers and microphone support
  • High speed USB Storage Transmission support
  • Auto-MDIX – automatically detects cable type
  • Built-in 8 kV / 15 kV ESD protection and 2 kV surge protection
  • Supports power redundancy – KX9970T has 2 DC jacks for power redundancy
  • Supports network failover – 1 RJ-45 & 2 SFP+ slots for network failover to ensure constant availability for mission-critical applications
  • Supports 10-Gbps SFP+ fiber module expansions for up to 10 km*
  • Rack Mountable – Mounting options:
    - 2X-021G Dual Rack Mount Kit
    - 2X-031G Single Rack Mount Kit
  • Includes an industrial-grade power adapter – supports operating temperature of 0-50 °C to ensure durability and adaptability under harsh environmental conditions
    Note: *The SFP+ module (2A-141G / 2A-142G) is sold separately. Contact your ATEN dealer for product information.

<!-- Features List-3-->

• Management
  • Integration with KVM over IP Matrix Manager (CCKM) – a software enabling easy configurations of all KX devices with an intuitive web-based GUI
  • Dual console operation – controls user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse
  • OSD (On Screen Display) – enables configuration of both Tx / Rx devices on the receiver’s display screen
  • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
  • On-screen Preview (Panel Array™ Mode) – allows users to view the video of up to 36 displays on one screen
  • Video Compression Level – allows users to increase / decrease the video quality to adjust for appropriate network bandwidth
  • Command Line Interface – administrators can control all KX devices via RS-232 or Telnet by issuing commands or 3rd-party application
  • Supports Hotkey Commands
  • RS-232 serial ports – allows users to connect to a serial terminal for TextMenu, CLI, or to serial devices such as touch screens and barcode scanners
  • All KX Tx models are compatible to be used with all Rx models

<!-- Features List-4-->

• Security
  • Dedicated LAN port for KX direct connections – can be isolated from the corporate network
  • Secured data transmission – 256-bit AES encryption for all data being transmitted from the transmitter to the receiver
  • Supports industry standard Transport Layer Security (TLS) protocol

<!-- Features List-5-->

• Virtual Media
  • Virtual Media mode enhances data transmission performance, and is ideal for file transfers, OS patching, software installations and diagnostic testing
  • Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
  • Supports smart card / CAC reader

"
