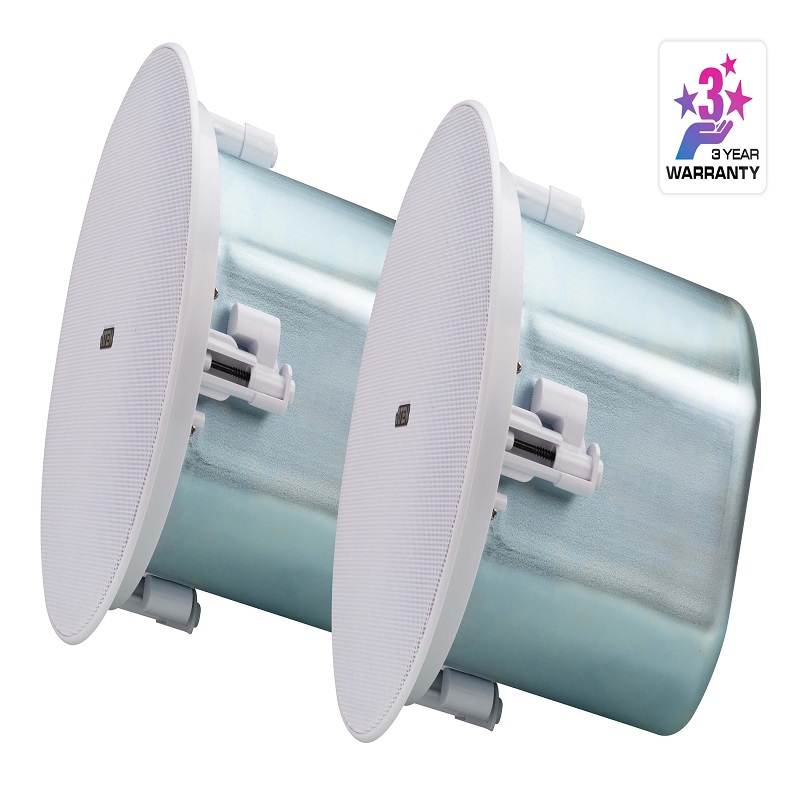

6.5" Coaxial Ceiling Loudspeaker

Product Code : AS106

Brand Category : Audio

Description

  • Please note the AS106s are sold in pairs.

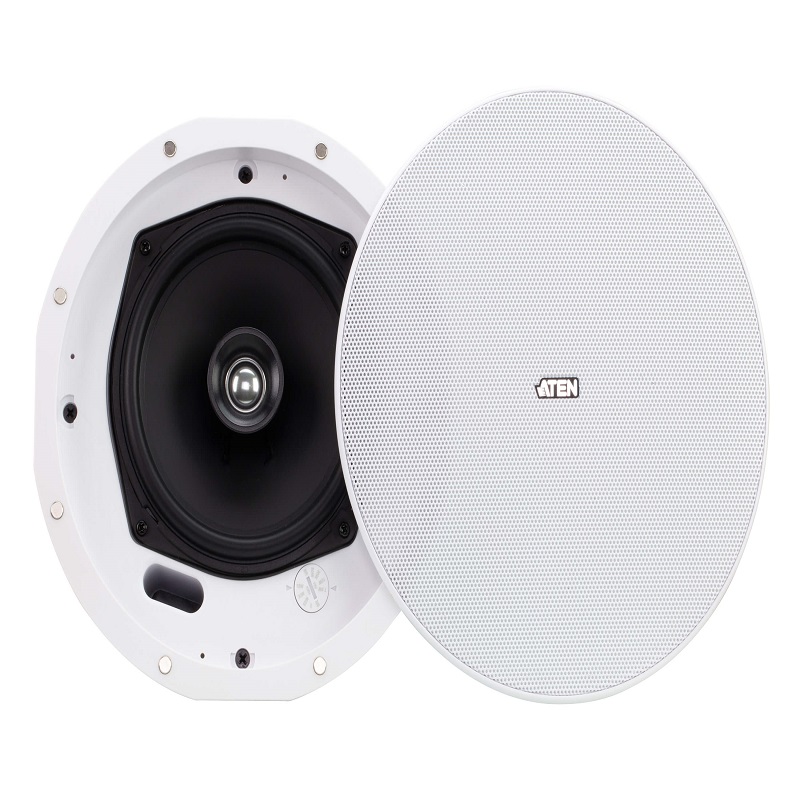

    • Coaxial design with premium components:
      – 6.5” high output driver with rubber surround and heavy-duty voice coil
      – 20 mm dome tweeter
    • 80 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
    • Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
    • UL94-V0 compliance for life safety applications
    • Paintable magnetic grille for blending into any room decor
    • Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template

Add to Query Cart PDF Download

Technical Specification

System Specification
LF Driver6.5" Paper Cone with Rubber Suspension
HF Driver20mm PEI Dome Tweeter
Rated Power60Wrms/120Wpeak
Sensitivity90dBSPL, @1m, 1W, 1kHz
Frequency Response80~20kHz (-10dB)
Transformer Taps70V(7.5W, 15W, 30W, 60W)
100V(*, 15W, 30W, 60W)
Distortion<=5%
Compliance
CertificationCE, WEEE, RoHs
Connectors
Audio Inputs5.08mm Euroblock Connector
Environmental
Operating Temperature0 - 40°C
Humidity0 - 80% RH, Non-Condensing
Storage Temperature-20 - 60°C
Physical Properties
Weight3.70 kg ( 8.15 lb )
HousingUL94-V0 ABS Plastic Baffle
Zinc-Coated Steel Backcan
Dimensions (L x W x H)25.72 x 25.72 x 19.75 cm
(10.13 x 10.13 x 7.78 in.)
Cut-out Diameter221mm
In-ceiling Clearance Height195mm
ColorWhite Speaker Grille (Paintable)
White Speaker Baffle
Carton Lot2 Pcs/Carton
NoteThis product is sold in pair
