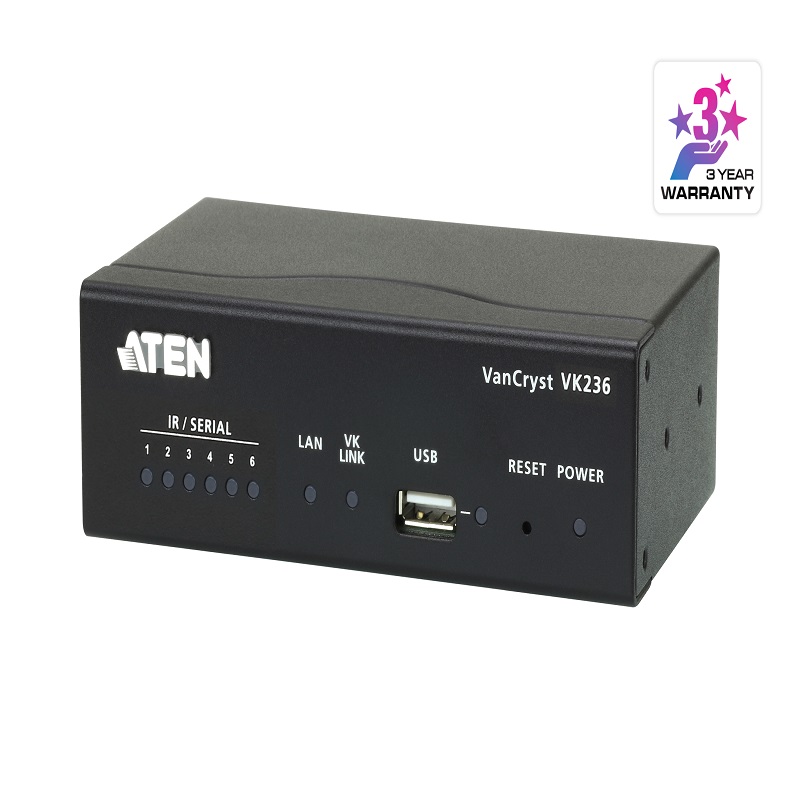

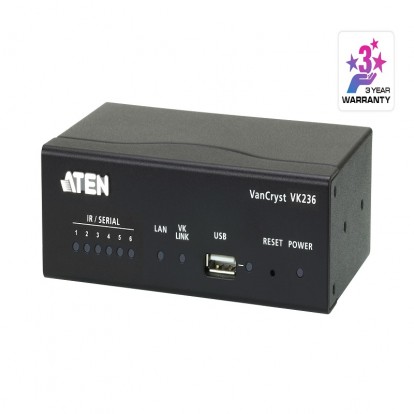

6-Port IR/Serial Expansion Box

Product Code : VK236

Brand Category : Control System

Description

An Ethernet-to-IR / serial box ships with 6 IR / serial ports
Supports Power over Ethernet (PoE) or DC power supply
Supports Telnet CLI (command-line interface) mode for third-party system integration
Supports Pronto formatted IR codes- IR command codes can be entered in Hex format
WebUI provides VK236 system information, including firmware upgrade
An expansion solution for connecting more IR / serial devices to ATEN Control System
Flexible deployment via Ethernet connection
Works with a connected ATEN controller with ID Switch through instant configuration

Technical Specification

Interfaces

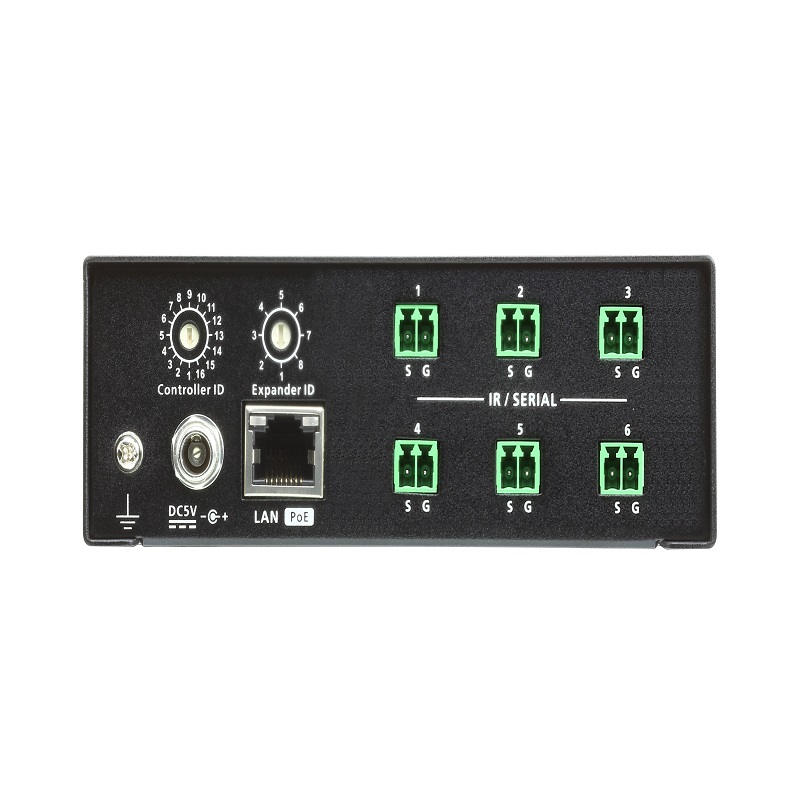

IR/Serial	6 x Programmable IR / Uni-directional RS-232 Port 6 x 2-Pole Terminal Block Connector IR: TTL level (0 to 5 V) – Carrier Frequency: 10KHz~455KHz; Serial: Uni-directional RS-232 ( + - 5 V) – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd
Ethernet	• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Switches
Controller ID	1 x 16-segment Switch
Expander ID	1 x 8-segment Switch
Reset Button	1 x Semi-recessed Pushbutton
USB	1 x USB Type A (Firmware upgrade only)
Power Consumption	DC5V:1.31W:17BTU DC48V:1.64W:18BTU
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.45 kg ( 0.99 lb )
Dimensions (L x W x H)	13.00 x 7.58 x 4.20 cm (5.12 x 2.98 x 1.65 in.)
