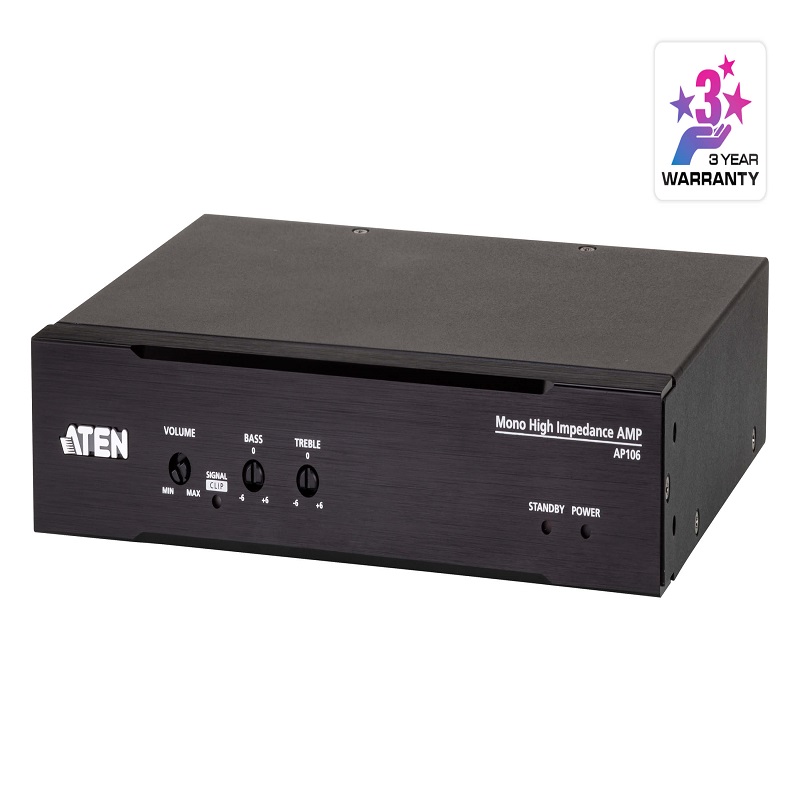

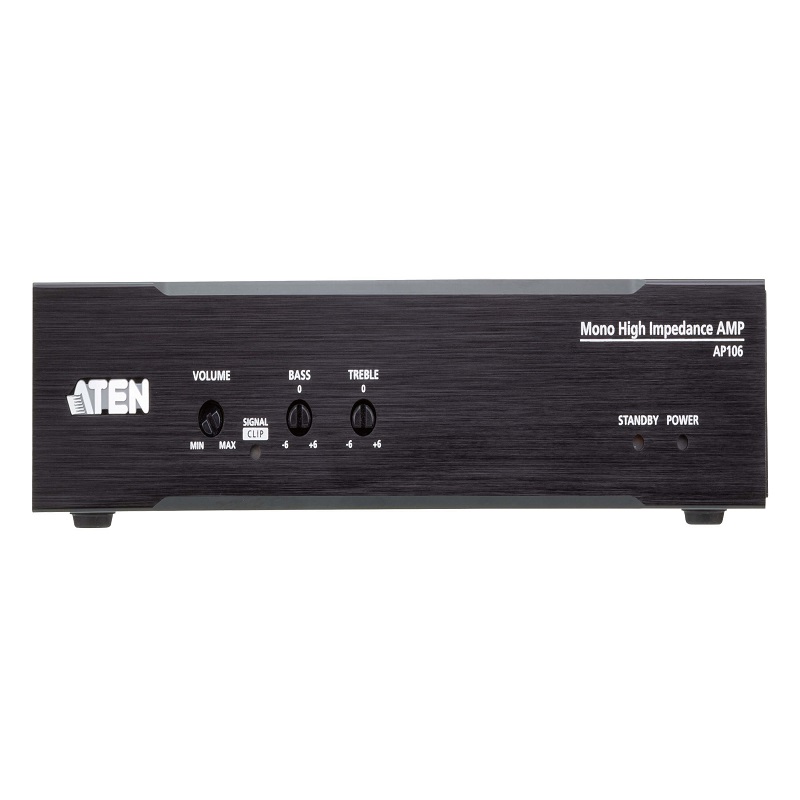

60W Mono Hi-Z Power Amplifier

Product Code : AP106

Brand Category : Audio

Description

A high-output power amp that delivers 60 W of power to 70 V or 100 V distributed audio systems
Built-in 2-band shelf EQ provides ± 6 dB boost / suppression of treble and bass control
Delivers extra headroom to accommodate transient audio peaks and prevent distortion
Fanless design eliminates operation shutdown caused by fan malfunction and ensures the amplifier not to be vulnerable to outside elements
Compact, sealed casing approves of hidden placement even in the dusty environments
Provides a wide range of professional audio equipment with easy, secure connectivity:
– Supports balanced and unbalanced line inputs on an Euroblock connector and a TRS jack (unbalanced input only)
– Output for high-Z via an Euroblock connector
– AC power on IEC receptacle for overseas operation
Power Saving Mode – the AP106 shuts down when no audio input higher than -50 dBu is detectable in 30 minutes and turns back on when a source reaches -30 dBu is detected
Integrated protection – Amp shortcut, Amp output over/under-voltage, high frequency overload, and overtemperature protection
Bi-directional RS-232 serial port allows for firmware upgrade and easy integration with ATEN’s Control System
Class D high efficiency and energy saving construction
Perfect for upgrading commercial or residential Pro AV systems where maintaining ultra-low distortion while exhibiting exceptional sound quality is required

Technical Specification

System Specification
Rated Power	60Wrms/ 120Wpeak
Distortion	THD+N: <0.1%, 1kHz, 3dB before clipping
Frequency Response	80~20kHz, 0/-3dB @70V, 1W
Sensitivity	Balanced: +4dBu Unbalanced: -10dBV (0dBu=0.775Vrms, 0dBV=1Vrms)
Amplifier Type	Class D
HPF	80Hz, -12dB/Oct
Audio Inputs
Interfaces	1 x 5-pin 3.5mm Euroblock (Bal/Unbal Line In) 1 x 3.5mm TRS Unbalanced Phone Jack (Priority)
Impedance	Balanced: 20kΩ Unbalanced: 10kΩ
Detect Threshold	-50dBu
Audio Outputs
Interfaces	1 x 2-pin 5.08mm Euroblock
Impedance	Minimum Load 70V: 80Ω 100V: 160Ω
Audio Effects	2-band Shelf EQ, +/-6dB
Protection	Output Shortcut AMP Output over/under voltage High Frequency Overload Thermal Protect
Communication
RS-232	Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Power
Power Consumption	100-240V~, 50/60Hz, 1A
Compliance
Certification	FCC, CE, UKCA
Environmental
Operating Temperature	0~40℃
Humidity	0-80% RH, Non-Condensing
Storage Temperature	-20~60℃
Physical Properties
Weight	1.23 kg ( 2.71 lb )
Housing	Metal
Dimensions (L x W x H)	20.00 x 15.72 x 4.40 cm (7.87 x 6.19 x 1.73 in.)
Note	Rack/surface mount kits are sold separately.
