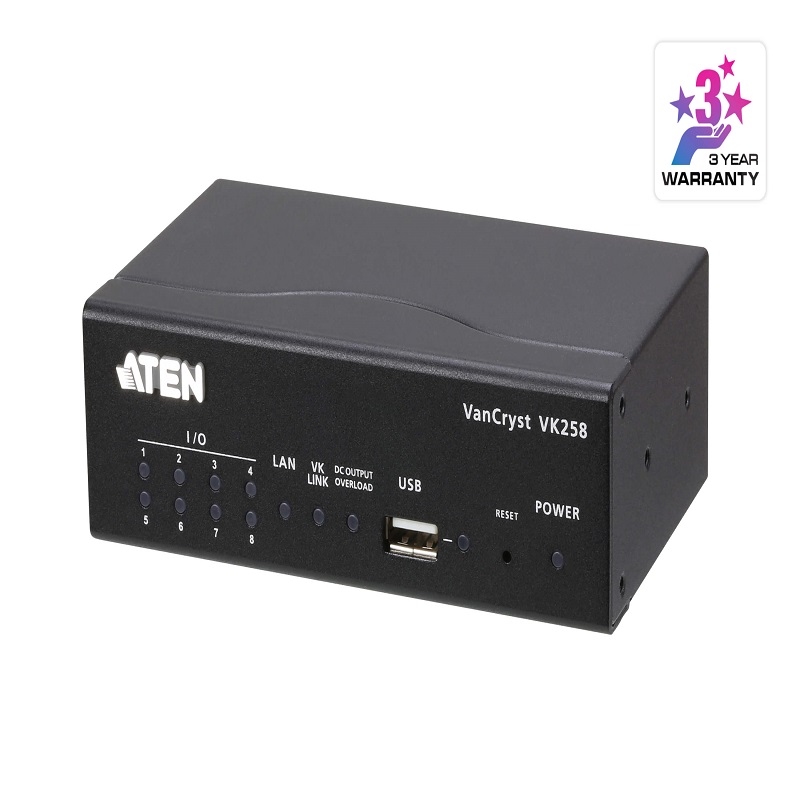

8-Channel Digital I/O Expansion Box

Product Code : VK258

Brand Category : Control System

Description

An Ethernet-to-digital I/O box ships with 8 channels of digital input / output
Supports Power over Ethernet (PoE) or DC power supply
WebUI provides VK258 system information, including firmware upgrade
Supports Telnet CLI (command-line interface) mode for third-party system integration
An expansion solution for connecting more digital I/O devices to ATEN Control System
Flexible deployment via Ethernet connection
Works with a connected ATEN controller with ID Switch through instant configuration

Technical Specification

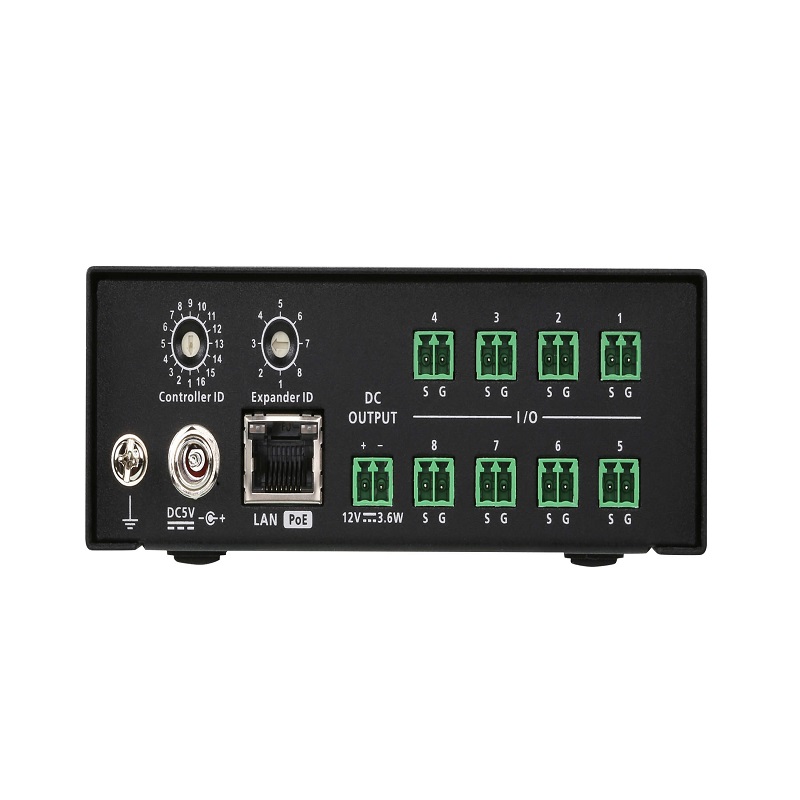

Interfaces
I/O	• 8 x Programmable Digital Input / Output Channel (8 x 2-Pole Terminal Block Connector) Digital Input: – VDC Mode Input Voltage Range: 0 to 24 VDC Programmable Range: 1 to 24 VDC – Dry Contact Mode Pull-up 2k ohms to +12 VDC Digital Output: 300 mA sink from 24 VDC
Ethernet	• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Switches
Controller ID	1 x 16-segment Switch
Expander ID	1 x 8-segment Switch
Reset Button	1 x Semi-recessed Pushbutton
USB	1 x USB Type A (Firmware upgrade only)
Power Consumption	DC5V:2.2W:36BTU POE:2.75W:39BTU
Power
Output	12 VDC, 300 mA
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.46 kg ( 1.01 lb )
Dimensions (L x W x H)	13.00 x 7.58 x 4.20 cm (5.12 x 2.98 x 1.65 in.)
