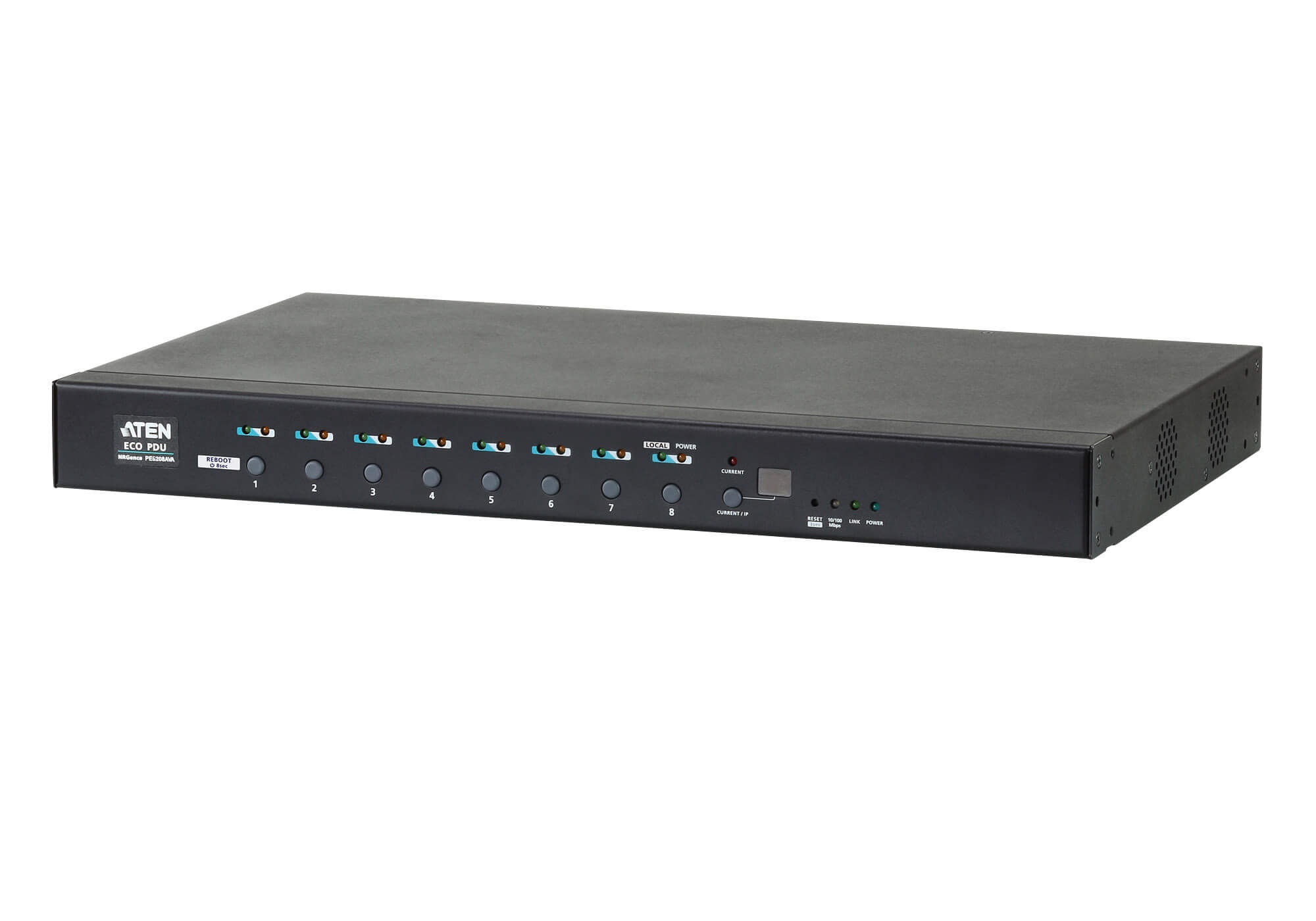

8-Outlet eco PDUS

Product Code : PE6208AV

Brand Category : Rack PDU

Description

Connections
Detachable front panel fits 19” racks with different depths
Built-in 10/100 Mbit Ethernet Interface
Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, and V3, Telnet
2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
Browser access via IE, Firefox, Chrome, Safari, and more
Easy integration with ATEN Control System and Control4 libraries
Supports RS-232 port and power outlet control (on/off) by outlet group

Metering
1% Metering Accuracy – supports bank-level power metering
Environment Monitoring – supports external temperature or temperature and humidity sensors for rack temperature and humidity monitoring

Outlet Switch Control
Remote and local power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
Multiple Power Control Methods – Wake on LAN, System After AC Back, Kill the Power
Power-On Sequencing – users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order to enhance equipment safety
Proactive Overload Protection (POP) – automatically powers off the last outlet that caused the current overload to protect high-end pro-A/V equipment and servers

eco DC Energy Management Software*
Automatic discovery of all ATEN PDUs within the same intranet
Remote real-time power measurement and monitoring of PDUs
Real-time environment monitoring via sensors
Plotting and monitoring of all ATEN PDU devices
Exceed threshold alerts through real-time monitoring, SMTP, and System logs
Power analysis reports

* eco DC is designed to work with NRGence™ eco PDUs and is bundled with all PE Series models.

Technical Specification

Function	PE6208AVA	PE6208AVB	PE6208AVG	PE6208AVX
Electrical
Nominal Input Voltage	100 – 120 VAC	100 – 240 VAC	100 – 240 VAC	100-240 VAC
Maximum Input Current	20A(Max), 16A(UL de-rated)	20A(Max)16A(UL de-rated)	16A(Max)	16A(Max)
Input Frequency	50-60 Hz	50-60 Hz	50-60 Hz	50-60 Hz
Input Connection	A/J:NEMA L5-20P A2/J2: NEMA 5-20P	NEMA 6-20P	IEC 60320 C20	Terminal(3P)
Input Power	2400VA(Max),1920VA(UL de-rated)	4600VA(Max),3680VA(UL de-rated)	3680 VA(Max)	4800VA(Max)
Outlet Type	Total : 8 x NEMA 5-20R	Total: 8 x IEC320 C13	Total: 8 x IEC320 C13	Total : 8 x Terminal(3P)
Nominal Output Voltage	100 –120 VAC	100 – 240 VAC	100 – 240 VAC	100-240 VAC
Maximum Output Current (Outlet)	NEMA 5-20R : 20A (Max) 16A (UL de-rated)	C13: 15A(Max) 12A(UL de-rated)	C13: 10A	16A (Max)
Maximum Output Current (Bank)	20A (Max) 16A (UL de-rated)	20A (Max) 16A (UL de-rated)	16A(Max)	16A (Max)
Maximum Output Current (Total)	20A (Max) 16A (UL de-rated)	20A (Max) 16A (UL de-rated)	16A(Max)	16A (Max)
Metering	Per Bank level Current, Voltage, VA , PF and KWh Monitoring	Per Bank level Current, Voltage, VA , PF and KWh Monitoring	Bank Level Current, Voltage, VA , PF and kWh Monitoring	Per Bank level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switching	Yes	Yes	Yes	Yes
Environment Sensor Ports	2	2	2	2
Metering Accuracy	Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%	Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%	"Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%"	Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Communication
10/100 Mbps	1 x RJ-45	1 x RJ-45	1 x RJ-45	1 x RJ-45
RS-232	1 x DB-9	1 x DB-9	1 x DB-9	1 x DB-9
Switches
Power	Yes	Yes	Yes	Yes
Physical Properties
Dimensions (L x W x H)	43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.)	43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.)	43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.)	43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.)
Weight	4.67 kg ( 10.29 lb )	4.67 kg ( 10.29 lb )	4.67 kg ( 10.29 lb )	4.67 kg ( 10.29 lb )
Power Cord Length	3 m	3 m	3 m	N.A.
Environmental
Temperature (Operating / Storage)	0 – 50℃ / -20 – 60℃	0 – 50℃ / -20 – 60℃	0–40°C / -20–60°C	0 – 50℃ / -20 – 60℃
Humidity (Operating & Storage)	0–80% RH, Non-Condensing	0–80% RH, Non-Condensing	0–80% RH, Non-Condensing	0–80% RH, Non-Condensing
Compliance
EMC Verification	FCC, J55032	FCC Others by Request	CE-EMC, FCC, J55032 Others by Request	FCC,CE
Safety Verification	PSE	Others by Request	CE-LVD, PSE, Others by Request	CE,LVD
