Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

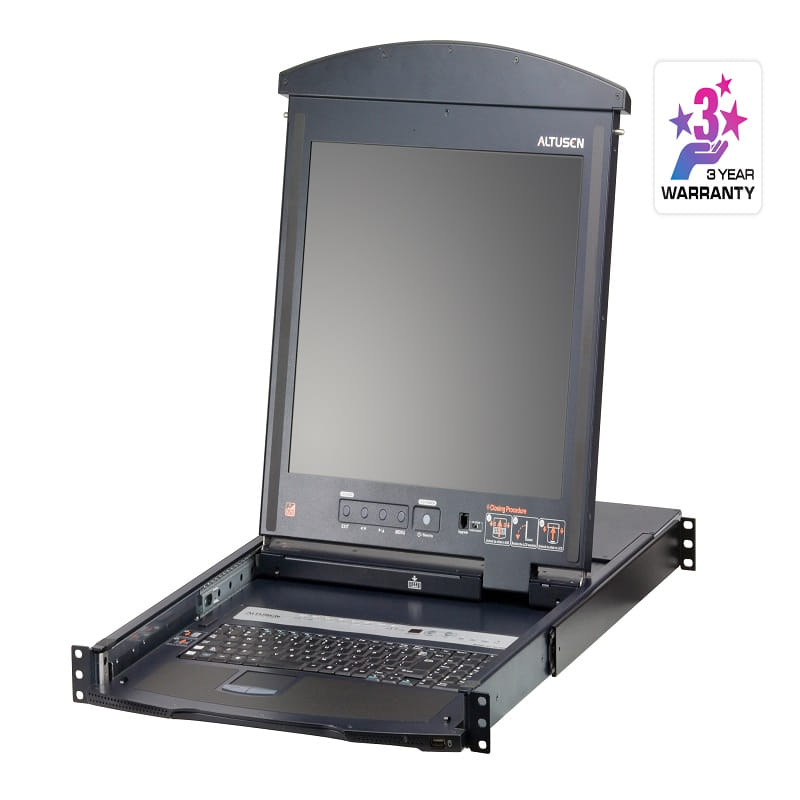

Integrated KVM console with 17"" or 19"" LED-backlit LCD monitor in a Dual Rail housing
A single console controls up to 8 computers

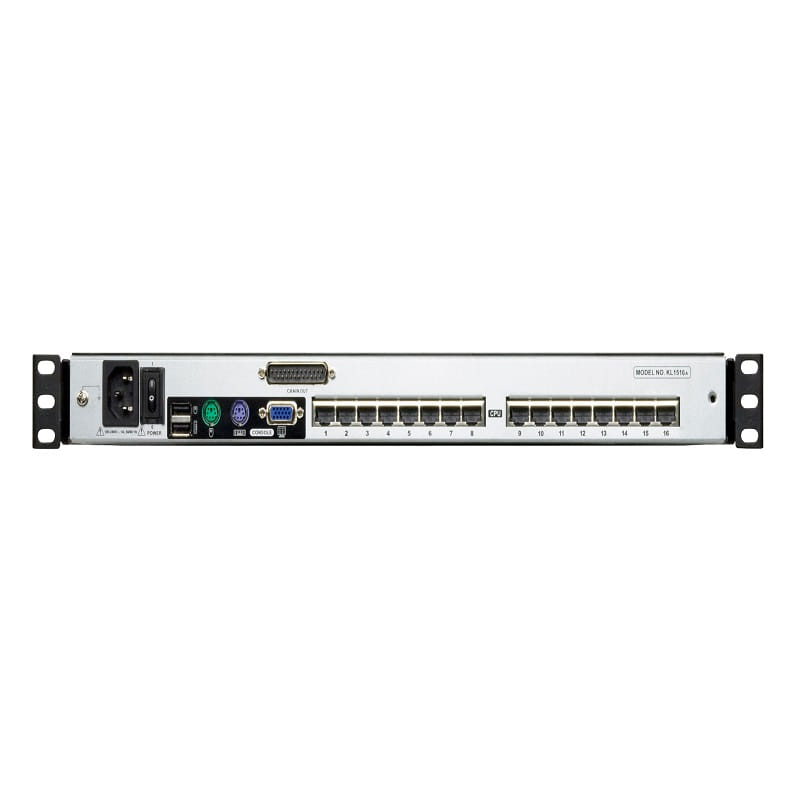

Space-Saving RJ-45 connectors and Cat 5e/6 cabling
KVM adapter cables* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
OSD tree structure makes finding and managing computers easy
Conveniently located station and port selectors with LED displays to quickly switch to target computers
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Dual Rail - LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock - enables the console drawer to remain securely locked away in position when not in use
Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
Daisy chain up to 31 additional KVM switches to control up to 256 computers
Auto Scan mode enables continuous monitoring of user-selected computers
Multiplatform support: PC, Mac, Sun and Serial
Superior Video Quality- Supports the video resolutions up to 1280x1024@75 Hz for up to 50 meters
Configure port access rights for users on a port - by - port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
LCD power button helps save energy and prolong displays' life
Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable
Optional rack mount kits available including easy installation options
Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
