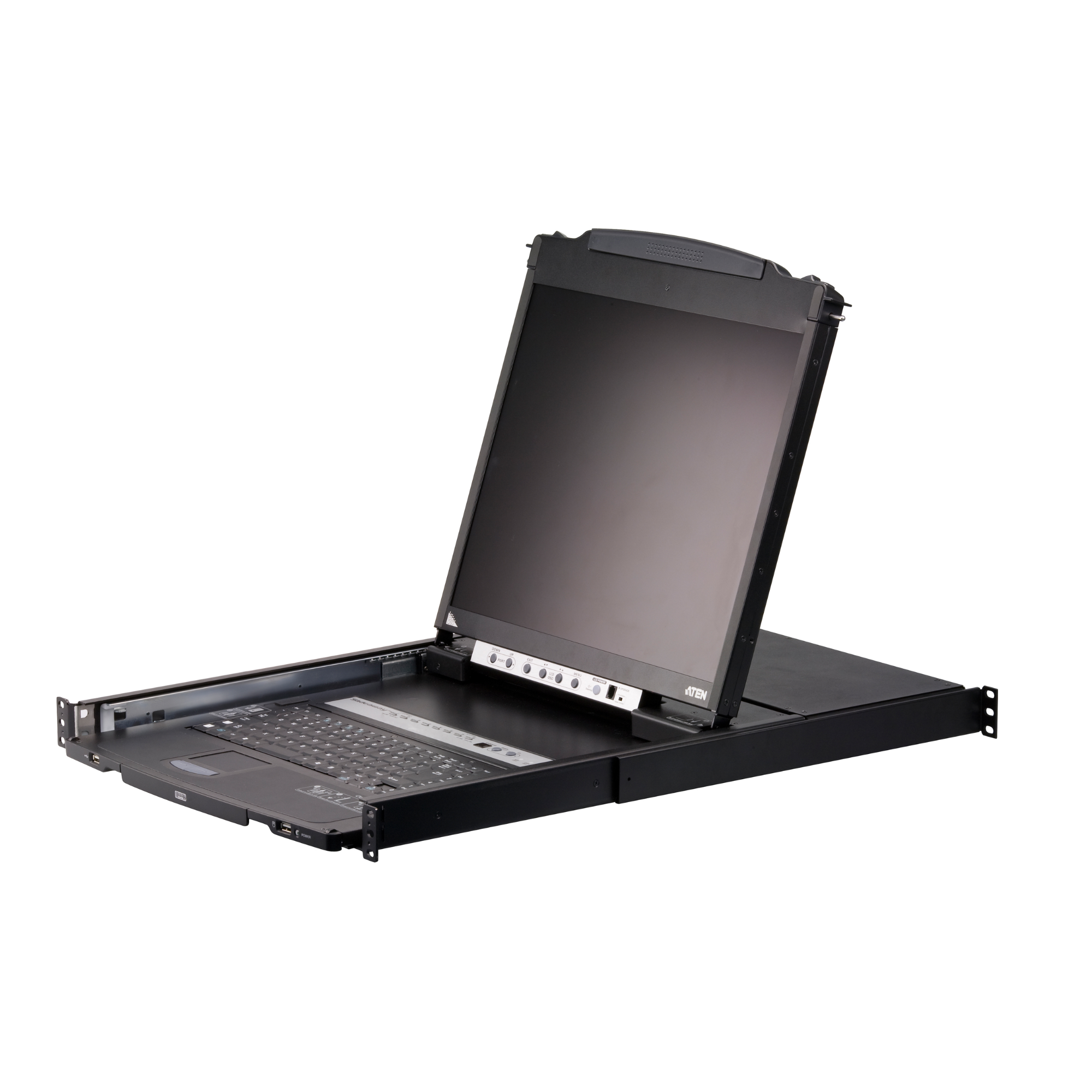

Product Code : CL5808
Brand Category : LCD KVM Switches / Consoles
"
"
Function | CL5808N |
Computer Connections | |
Direct | 8 |
Maximum | 256 (via Daisy-chain) |
Port Selection | OSD, Hotkey, Pushbutton |
Connectors | |
KVM Ports | 8 x SPHD Female (Yellow) |
Daisy Chain Ports | 1 x DB-25 Male |
Firmware Upgrade | 1 x RJ-11 Female |
Power | 1 x IEC 60320/C14 |
External Console Ports | 1 x SPHD Male (Yellow) |
External Mouse Port | 1 x USB Type A Female (Front) |
USB Port | 1 x USB Type A Female (Front) |
Switches | |
Port Selection | 2 x Pushbutton (LCD) 8 x Pushbutton (Keyboard) |
Station Selection | 2 x Pushbutton |
Reset | 1 x Semi-recessed Pushbutton |
Firmware Upgrade | 1 x Slide Switch |
Power | 1 x Rocker Switch |
LCD Control | 4 x Pushbutton |
LCD Power | 1 x LED Pushbutton |
LEDs | |
Online | 8 (Orange) |
Selected | 8 (Green) |
Station ID | 2 x 7-segment LED Display (Orange) |
Power | 1 (Dark Green) |
Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
LED Illumination Light | 1 x LED Illumination Light |
Panel Spec | |
LCD Module | 19" TFT-LCD |
Resolution | 1280 x 1024 @ 75 Hz |
Response time | 5 ms |
Viewing Angle | 170° (H), 160° (V) |
Pixel Pitch | 0.294 mm x 0.294 mm |
Support Color | 16.77M colors |
Contrast Ratio | 1000:1 |
Luminance | 250 cd/m⊃2; |
Video | |
Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
Scan Interval | 1–255 seconds |
Emulation | |
Keyboard / Mouse | PS/2, USB |
Maximum Input Power Rating | 100–240V AC, 50/60Hz, 1A |
Power Consumption | AC110V:25.2W:129BTU AC220V:27.2W:138BTU |
Environmental | |
Operating Temperature | 0–50°C |
Storage Temperature | -20–60°C |
Humidity | 0–80% RH, Non-condensing |
Physical Properties | |
Housing | Metal + Plastic |
Rail Type | Dual Rail |
Weight | 14.48 kg ( 31.89 lb ) |
Dimensions (L x W x H) | 48.00 x 68.04 x 4.40 cm (18.9 x 26.79 x 1.73 in.) |
