8-Port PS/2-USB VGA Single Rail LCD KVM Switch

Product Code : CL1308

Brand Category : LCD KVM Switches / Consoles

Description

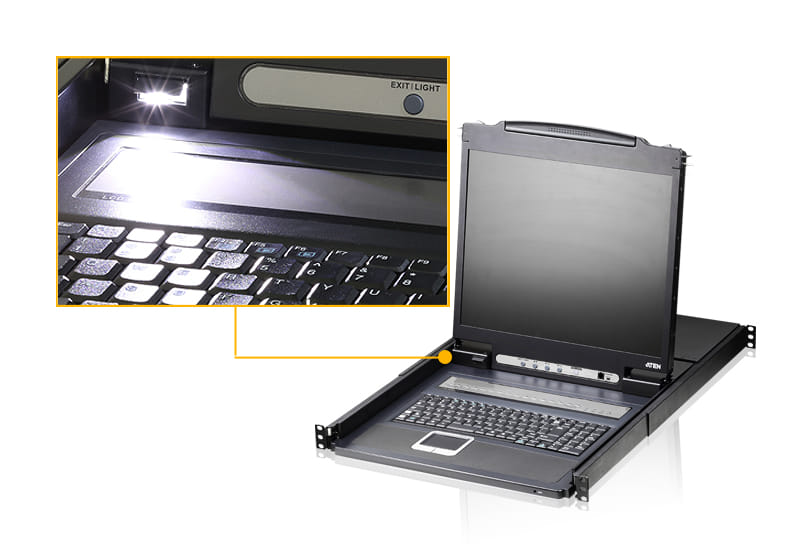

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
Integrated KVM console with 19"" LED-backlit LCD panel
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations simultaneously performed on all selected computers
Hot pluggable – add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Rack mountable
Optional rack mount kits available including easy installation options
Keyboard language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

More information about ""Easy Rack Mounting""...

Technical Specification

Function	CL1308N
Computer Connections
Direct	8
Maximum	128 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton
Connectors

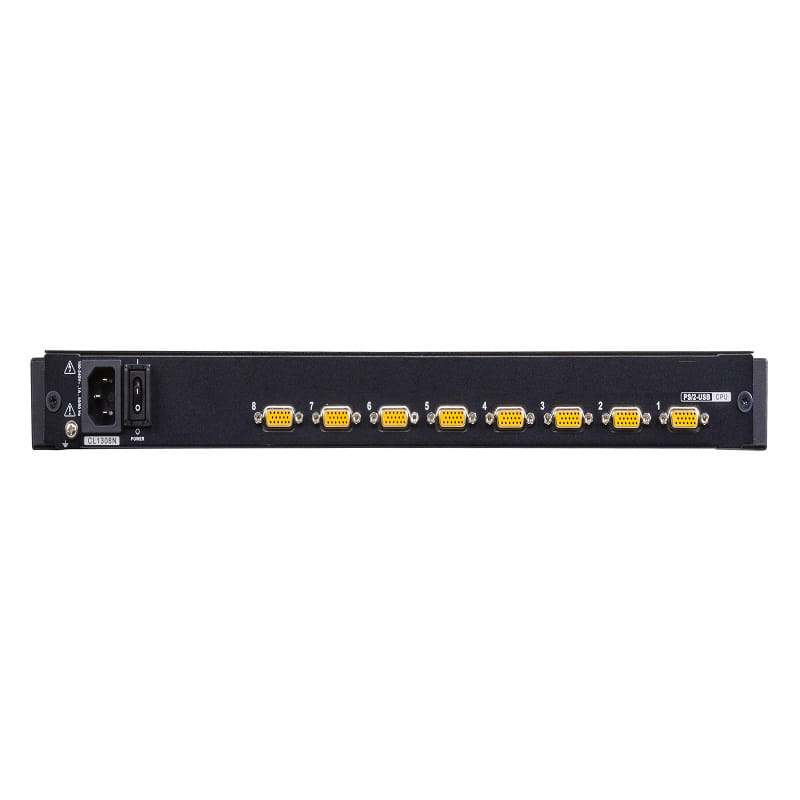

KVM Ports	8 x SPHD Female (Yellow)
Firmware Upgrade	1 x RJ-11 Female
Power	1 x IEC 60320/C14
Switches
Port Selection	8 x Pushbutton
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Online	8 (Orange)
Selected	8 (Green)
Power	1 (Dark Green) 1 (Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	19" TFT-LCD
Resolution	1280 ×1024 @ 75 Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)
Pixel Pitch	0.294 mm x 0.294 mm
Support Color	16.77M colors
Contrast Ratio	1000:1
Luminance	250 cd/m⊃2;
Video
Input Video Resolution	up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
Scan Interval	1-255 seconds
Emulation
Keyboard / Mouse	PS/2, USB
Maximum Input Power Rating	100-240 V AC; 50-60 Hz; 1A
Power Consumption	AC110V:24.4W:114BTU AC220V:24.7W:116BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal + Plastic
Rail Type	Single Rail
Weight	12.59 kg ( 27.73 lb )
Dimensions (L x W x H)	48.30 x 68.92 x 4.40 cm (19.02 x 27.13 x 1.73 in.)
