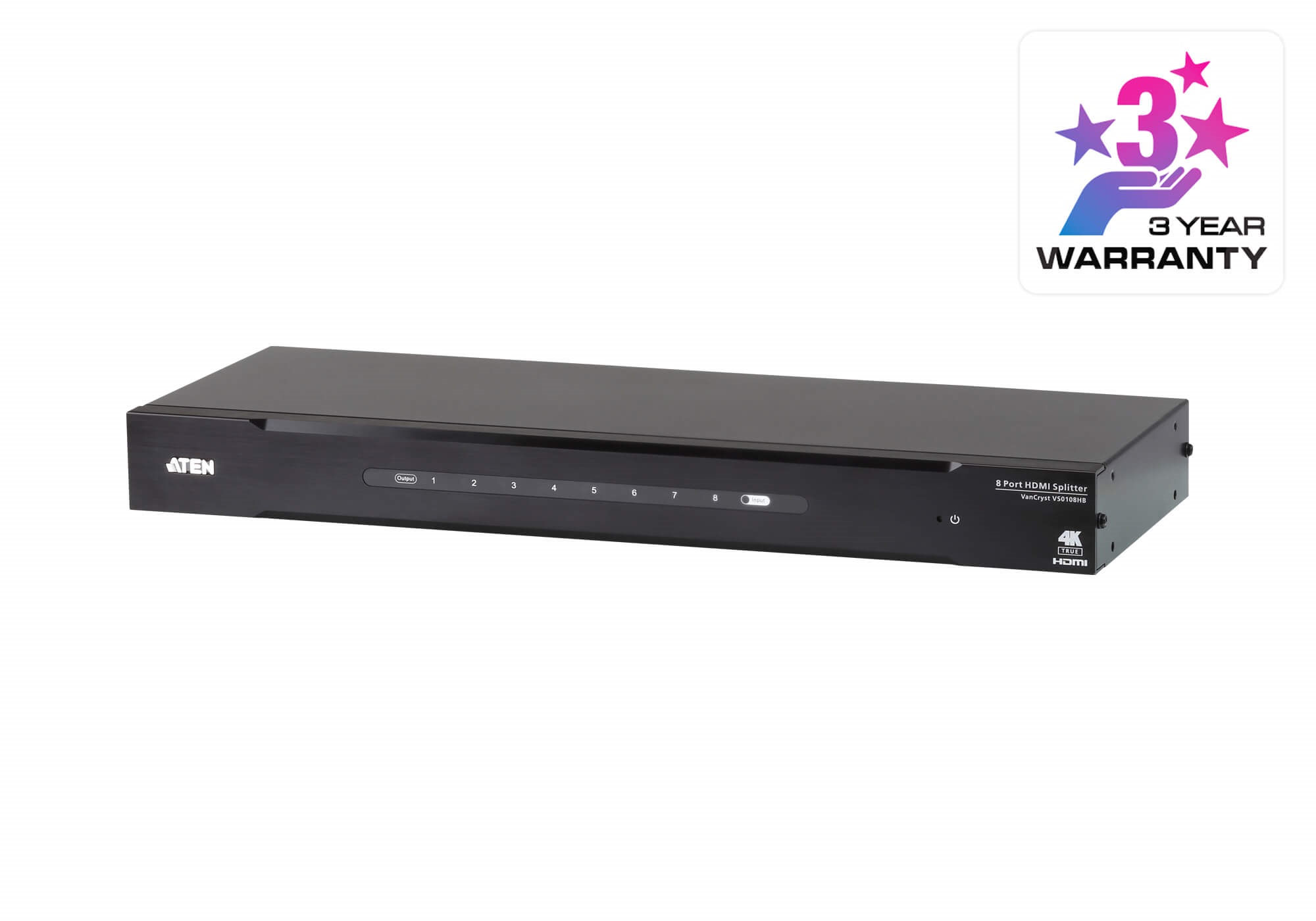

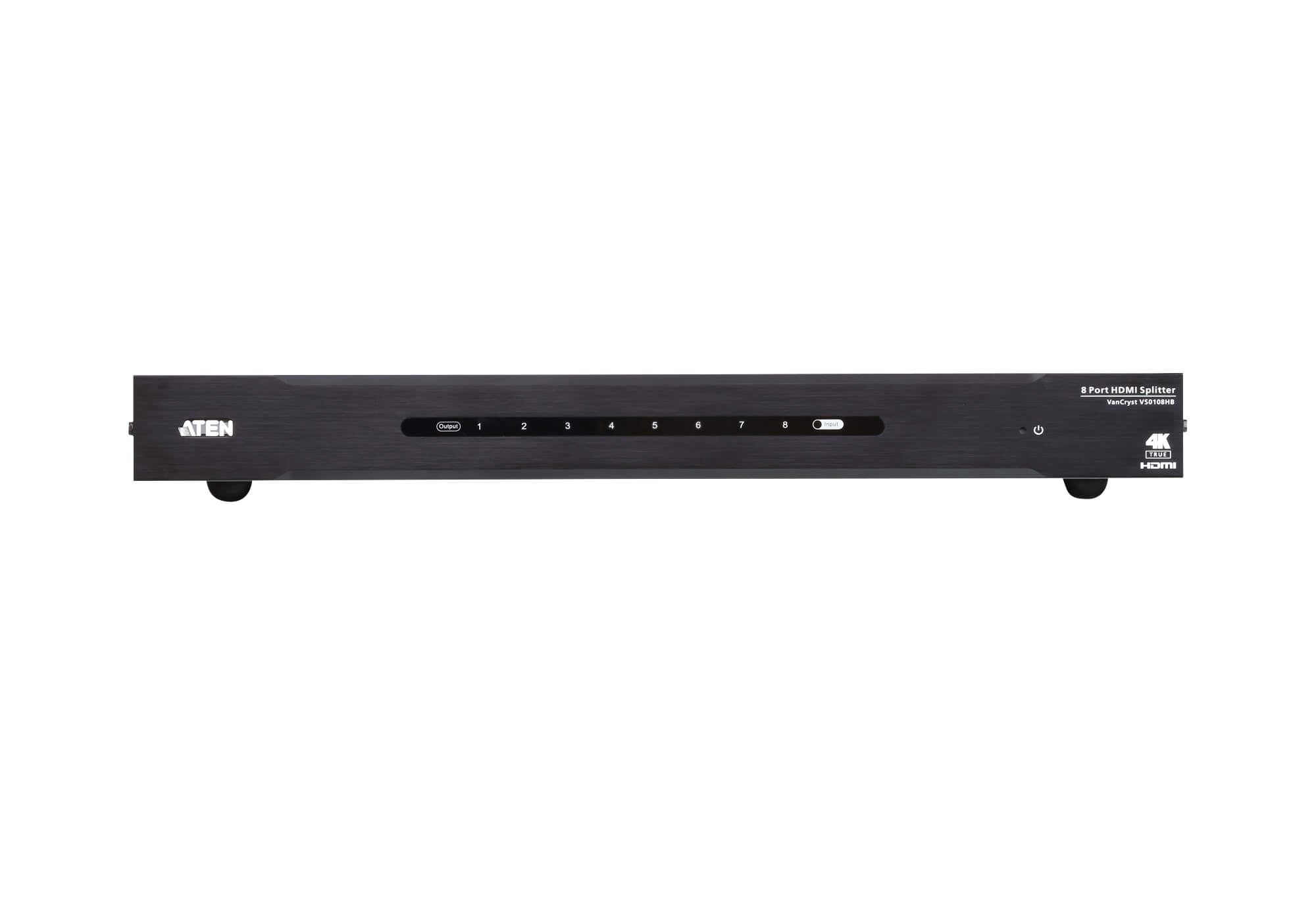

8-Port True 4K HDMI Splitter

Product Code : VS0108HB

Brand Category : Video Splitters

Description

Allows one HDMI source to be connected to up to 8 HDMI displays
HDMI 2.0 (3D, Deep color, 4K); HDCP 2.2 compliant
Superior video quality – up to True 4K resolutions (4096 x 2160 @ 60Hz 4:4:4)
Supports HDR10⁺
Long distance transmission from source to output - up to 6 m
Built-in bi-directional RS-232 serial control port for high-end system control
Supports Dolby True HD and DTS HD Master Audio
Clear LED indication of device status
EDID Expert™ – Selects optimum EDID settings for smooth power- up, high quality display and use of the best resolution across different screens
Plug-and-play
Rack-mountable (1U design)

Technical Specification

LEDs
Input	1 x LED (Green)
Video Output	8 X LED (Green)
Power	1 x LED (Green)
Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5M at 4K@60Hz (4:4:4)
Video Output
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5M at 4K@60Hz (4:4:4)
Video
Max. Data Rate	18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
RS-232	Connector: DB-9 Female (Black) x 1 Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings	EDID Slide Switch x 1 EDID Mode: Port 1 / Default / Auto / Switch
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:11.95W:56BTU
Environmental
Operating Temperature	0-40 °C
Storage Temperature	-20 - 60 °C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	2.18 kg ( 4.8 lb )
Dimensions (L x W x H)	43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
Carton Lot	3 pcs
