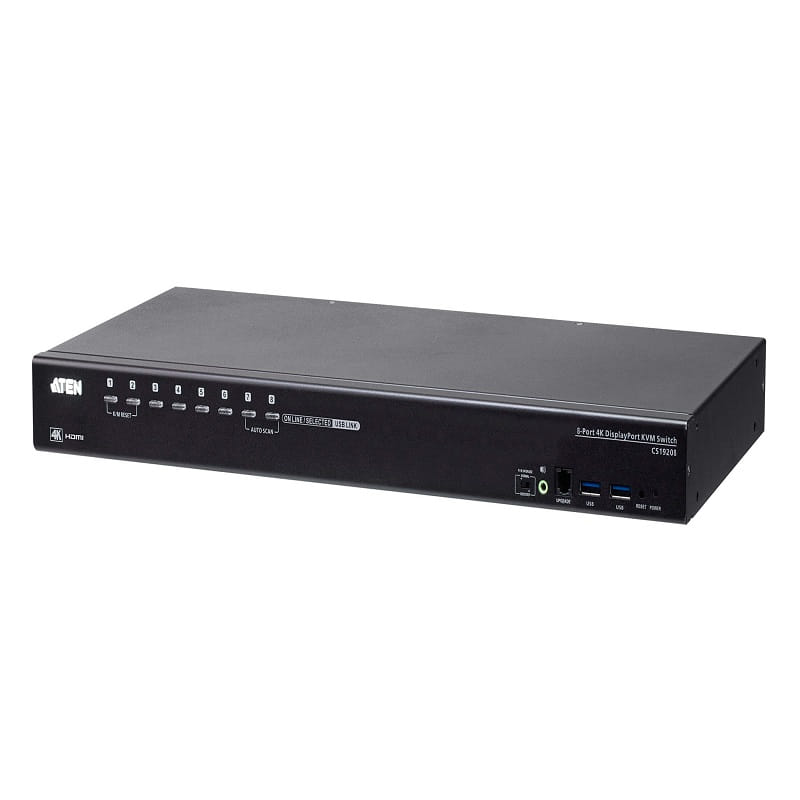

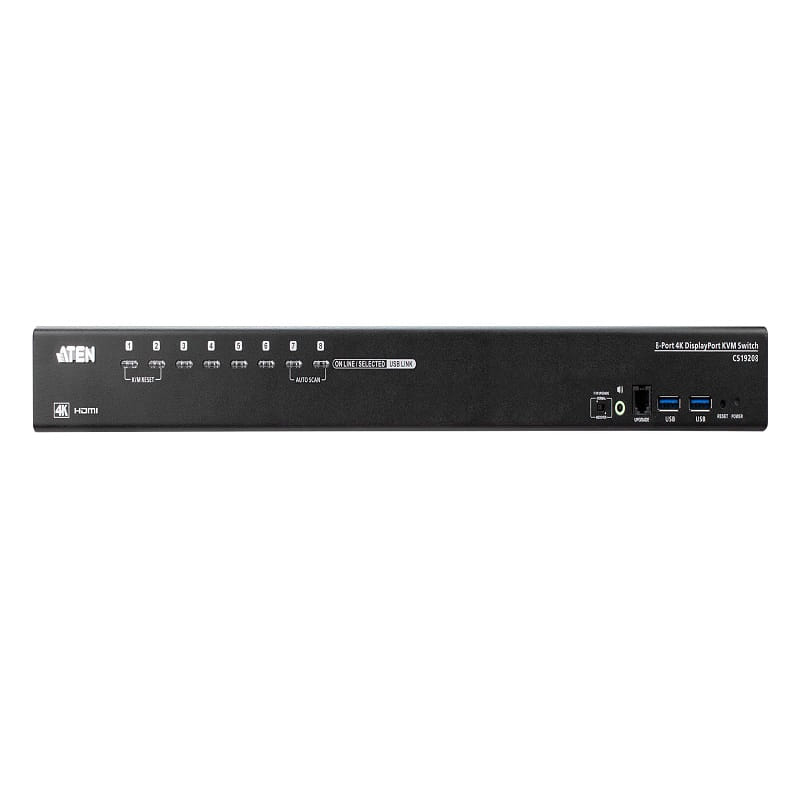

8-Port USB 3.0 4K DisplayPort KVM Switch

8-Port USB 3.0 4K DisplayPort KVM Switch

Product Code : CS19208

Brand Category : Rack KVM Switches


Description


"

  • One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
  • Cascadable to two levels – controls up to 128 computers1
  • Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
  • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
  • Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
  • Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
  • Supports HD audio2
  • Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
  • Independent switching of KVM and USB peripheral focus3
  • Two-level (administrator/user) password authorization for enhanced security protection
  • Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
  • Auto Scan Mode for monitoring all computers
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
  • Mac/Sun keyboard support and emulation4
  • Supports hot-plugging
  • DisplayPort 1.2 compliant; HDCP 2.2 compliant
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Firmware upgradable
  • Supports multimedia, wireless keyboards and mouse

    Note:
    1. Cascading between CS19208 and CS19216 is available.
    2. HD audio through HDMI and DisplayPort channel cannot be switched independently.
    3. Independent switching is only supported under mouse emulation mode.
    4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton, RS-232 Commands
Connectors
Console Ports 1 x DisplayPort Female
1 x HDMI Female (Black)
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM Ports 8 x DisplayPort Female
8 x USB3.1 Gen1 Type B Female (Blue)
8 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front)
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade Recovery 1 x Slide Switch
LEDs
On Line /Selected 8 (Orange)
Power 1 (Green)
USB Link 8 (Green)
Emulation
Keyboard / Mouse USB
Video DisplayPort: 4096 x 2160 @ 60Hz; HDMI: 4096 x 2160 @ 60Hz
Scan Interval 0 – 255 seconds (default: 5 secs.)
Power Consumption DC12V:18.44W:136BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.11 kg ( 6.85 lb )
Dimensions (L x W x H) 43.24 x 21.43 x 4.40 cm
(17.02 x 8.44 x 1.73 in.)
