8-Port USB DisplayPort Dual Display Secure KVM Switch (PSD PP v4.0 Compliant)

8-Port USB DisplayPort Dual Display Secure KVM Switch (PSD PP v4.0 Compliant)

Product Code : CS1148DP4

Brand Category : Secure KVM Switches


Description


"

  • NIAP Common Criteria Compliant
    • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements




<!-- Features List-2 -->

  • Multi-Layered Security
    • Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
    • Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
    • Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
    • Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), and video are rejected
    • Port selection via pushbuttons / Remote Port Selector (RPS) 1only to enhance security
    • LED indicators for peripheral filtering and KVM security status
    • Strict audio filtration protects against audio leakage
    • Rugged metal enclosure




<!-- Features List-3-->

  • Data Channel Isolation and Unidirectional Data Flow
    • True data path isolation – data cannot be transferred between computers
    • The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers
    • Unidirectional data flow between console devices and the selected computer is ensured
    • Supports analog audio (speaker only) 2




<!-- Features List-4 -->

  • User Data Protection
    • The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched




<!-- Features List-5 -->

  • Security Management
    • Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
    • Provides administrative functions for authorized administrators to audit KVM log data




<!-- Features List-6 -->

  • Superior Video Quality
    • Superior video quality – up to 4K (3840 x 2160 @ 30 Hz) 3
    • Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources

      1. The Remote Port Selector is not supplied in the package and requires a separate purchase.
      2. Only analog speaker data input is supported.
      3. The DisplayPort Secure KVM Switch series supports console video output resolutions up to 3840 x 2160 @ 30 Hz.

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 8
Port Selection Pushbutton, Remote Port Selector

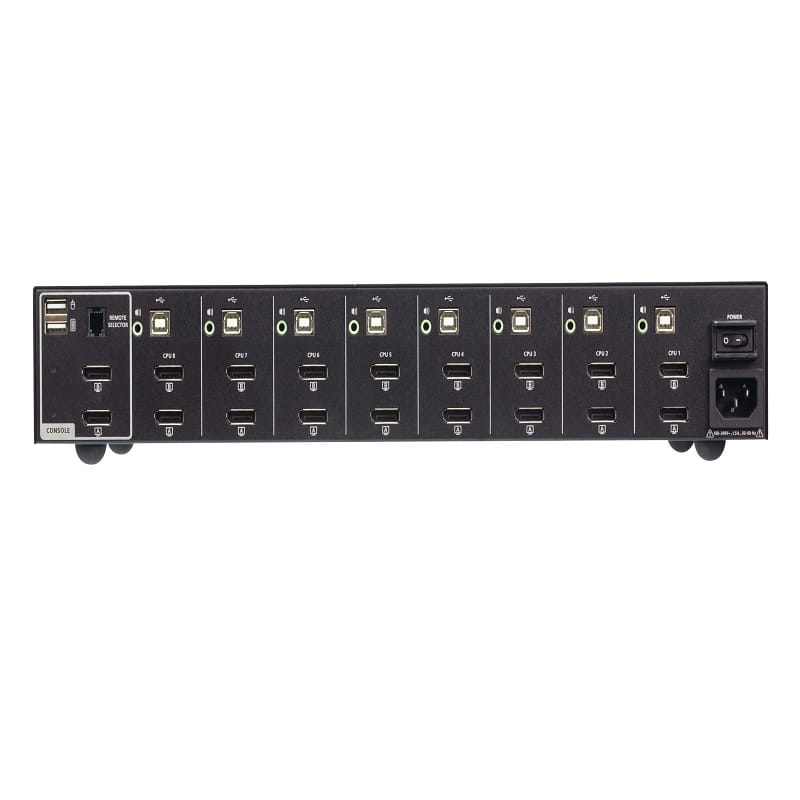

Connectors
Console Ports 2 x DisplayPort Female (Black)
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; front panel)
KVM Ports 8 x USB Type-B Female (White)
16 x DisplayPort Female (Black)
8 x Mini Stereo Jack Female (Green)
Power 1 x 3-prong AC Socket
Remote Port Selector 1 x RJ-11 (Black; rear panel)
Switches
Port Selection 8 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
LEDs
Power 1 (Green)
Online / Selected (KVM Port) 8 (Orange)
Video 2 (Green)
Key Lock 3 (Green)
Emulation
Keyboard / Mouse USB
Video Max. 3840 x 2160 @ 30 Hz (UHD)
Maximum Input Power Rating 100–240V~; 50-60 Hz; 1.5A
Power Consumption AC110V:24.4W:136BTU
AC220V:24.2W:135BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.18 kg ( 7 lb )
Dimensions (L x W x H) 43.24 x 20.49 x 6.55 cm
(17.02 x 8.07 x 2.58 in.)
