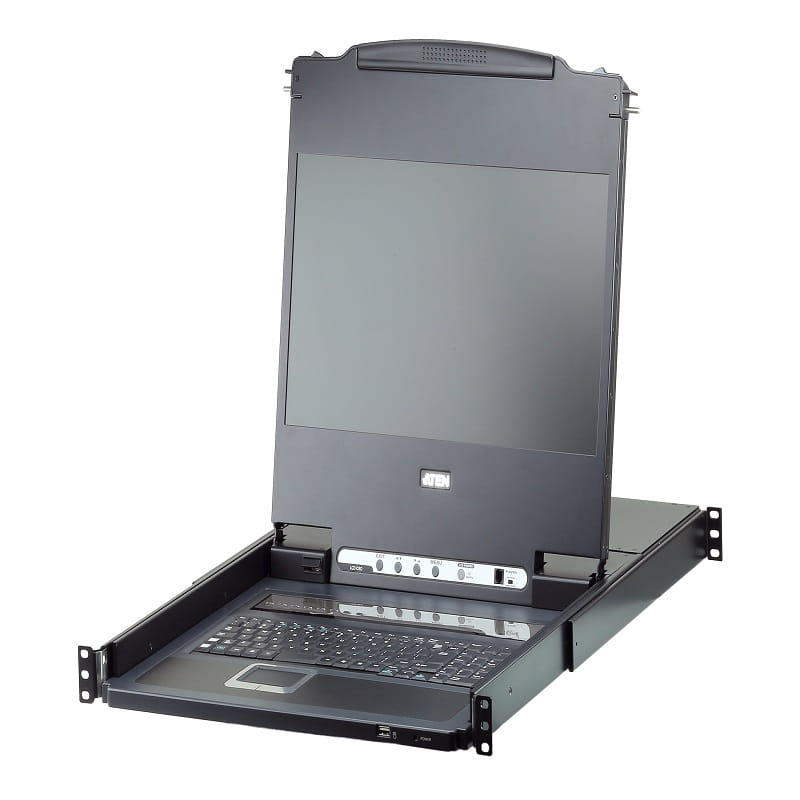

8-Port USB DVI Single Rail WideScreen LCD KVM Switch

Product Code : CL6708MW

Brand Category : LCD KVM Switches / Consoles

Description

Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
Single rail, sliding housing with top and bottom clearance for smooth operation in a 1U rack
Controls eight Single Link DVI computers
Supports an external console with DVI video port
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
Firmware upgradable
Supports YUV video format for greater compatibility
DVI monitor support – fully compliant with DVI specifications
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes responsiveness when switching between ports
Note: Video DynaSync™ only works with digital video sources
HDCP-compatible for hassle-free content-protected media playback
Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
Audio support for connecting speakers
Auto Scan Mode for monitoring all computers
Multiplatform support – Windows, Linux, Mac, Sun
Optional rack mount kits available including easy installation options
Console lock – enables the console drawer to remain securely locked away in position when not in use

More information about ""Easy Rack Mounting""...

Add to Query Cart PDF Download

Technical Specification

Function	CL6708MW
Computer Connections
Direct	8
Maximum	64 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton
Connectors

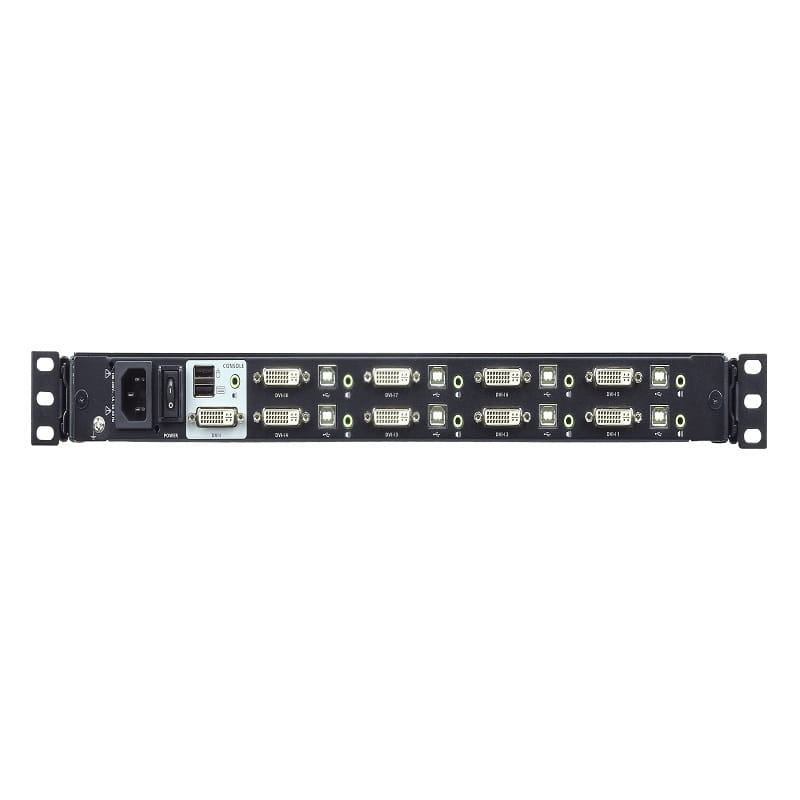

KVM Ports	8 x DVI-I Female (White) 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade	1 x RJ-11 Female
Power	1 x IEC 60320/C14
External Console Ports	1 x DVI-I Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral	1 x USB Type A Female (Front)
Switches
Port Selection	8 x Pushbutton
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Online	8 (Orange)
Selected	8 (Green)
Power	1 x KVM Power(Dark Green) 1 x LCD Power(Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	17.3" TFT-LCD
Resolution	1920 x 1080 @ 60 Hz
Response time	16 ms
Viewing Angle	170° (H), 170° (V)
Pixel Pitch	0.1989 mm x 0.1989 mm
Support Color	16.77M colors
Contrast Ratio	800:1
Luminance	250 cd/m⊃2;
Video
Input Video Resolution	up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only); 1920 × 1080 @ 60 Hz, DDC2B
Scan Interval	1–255 seconds
Emulation
Keyboard / Mouse	USB
Maximum Input Power Rating	100–240 V AC, 50/60 Hz, 1 A
Power Consumption	AC110V:23.3W:116BTU AC220V:23.3W:116BTU
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal + Plastic
Rail Type	Single Rail
Weight	12.70 kg ( 27.97 lb )
Dimensions (L x W x H)	48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
