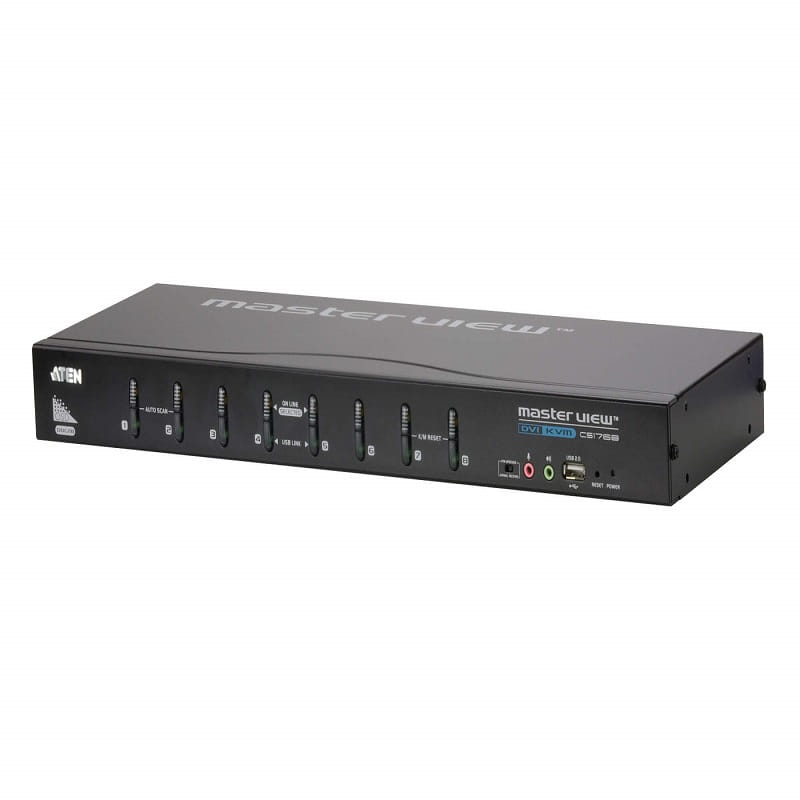

One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
KVM console supports a digital (DVI-D) or an analog (VGA) video output

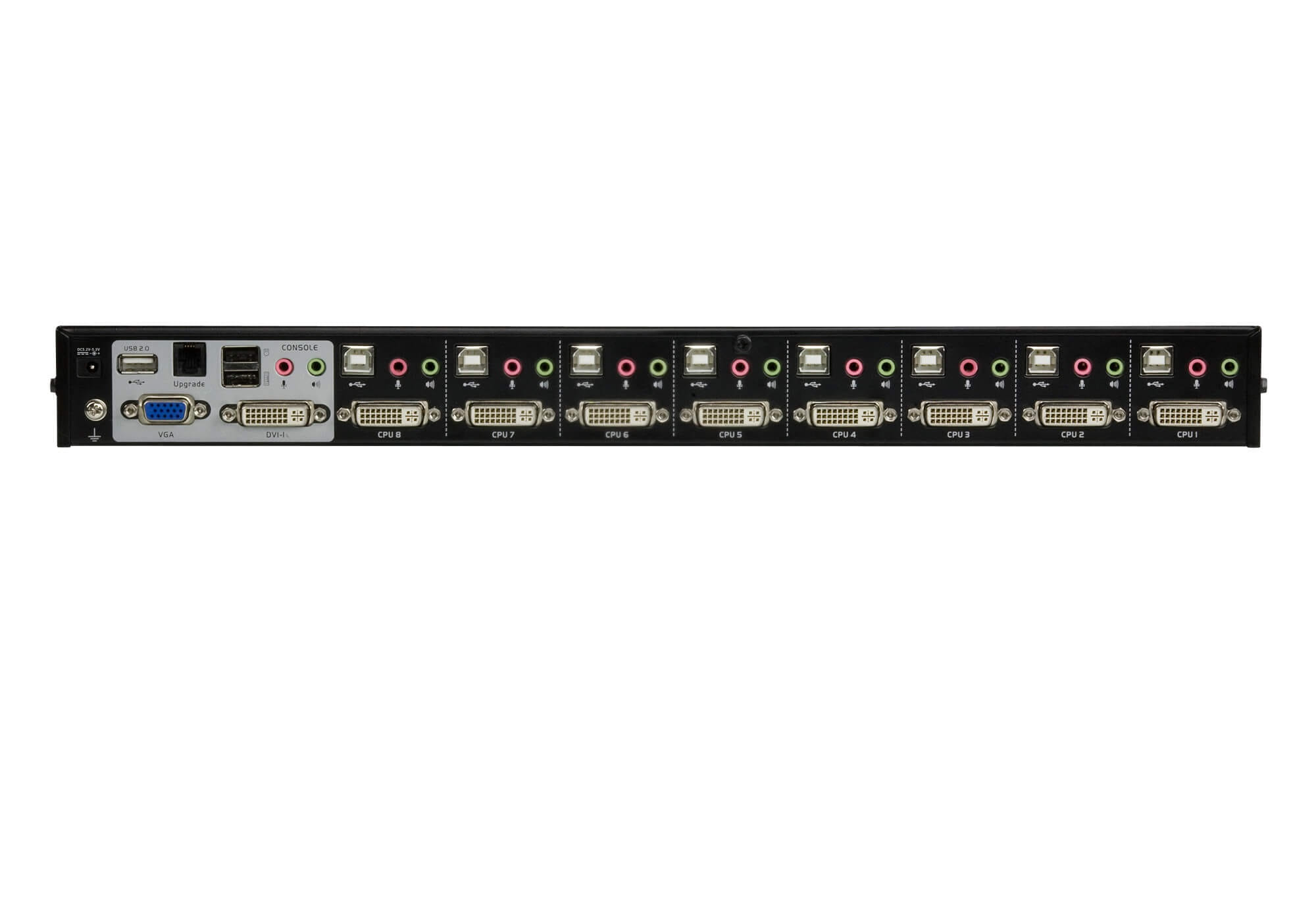

Computer ports support digital (DVI) and analog (VGA) video inputs* – mixed operation possible
Cascadable to three levels – control up to 512 computers
Multi-Display mode – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)
Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Two-level (Administrator/User) password authorization for enhanced security protection
Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Console audio ports on front panel for easy access
Multiplatform support – Windows, Linux, Mac, Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
Independent switching of KVM and USB focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
HDCP compatible
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation**
Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
Auto Scan Mode for monitoring all computers
Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.
Firmware upgradable
Note:
* A VGA input requires a VGA to DVI adapter or a VGA to DVI KVM cable(2L-7DX2U/2L-7DX3U). This KVM cable is sold separately
** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers
