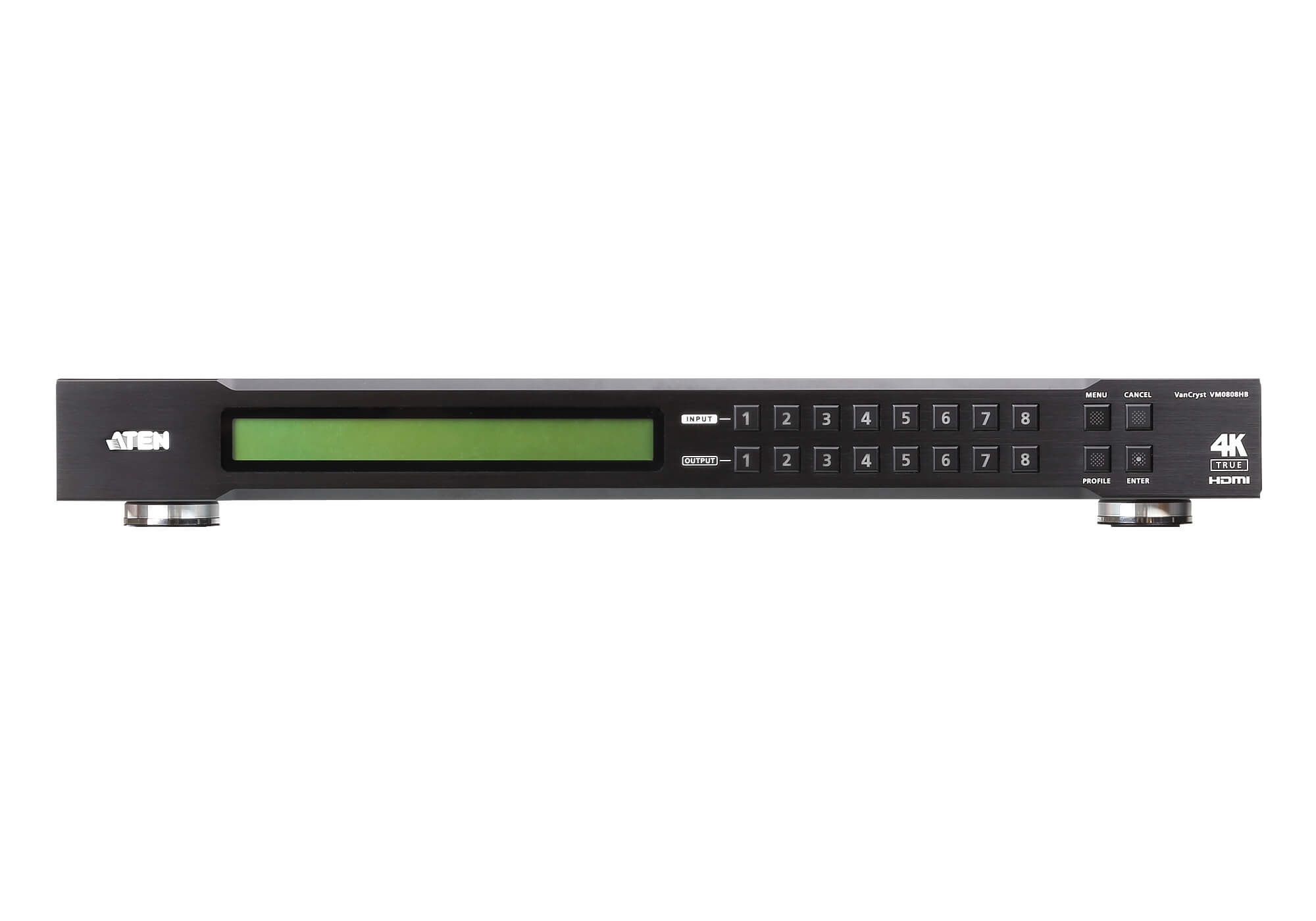

8 x 8 True 4K HDMI Matrix Switch

8 x 8 True 4K HDMI Matrix Switch

Product Code : VM0808HB

Brand Category : Video Matrix Switches


Description


  • Connects any of 8 HDMI sources to any of 8 HDMI displays
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Supports HDR10+
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Signaling rates up to 6 Gbits for flawless true 4K output
  • Supports Dolby True HD and DTS HD Master audio
  • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
  • Supports Consumer Electronics Control (CEC)
  • Power-on Detection – switches to the next powered-on source when one source is powered off
  • ESD protection for HDMI
  • Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
  • Firmware upgradeable
  • Rack mountable (1U design)

Add to Query Cart PDF Download


Technical Specification

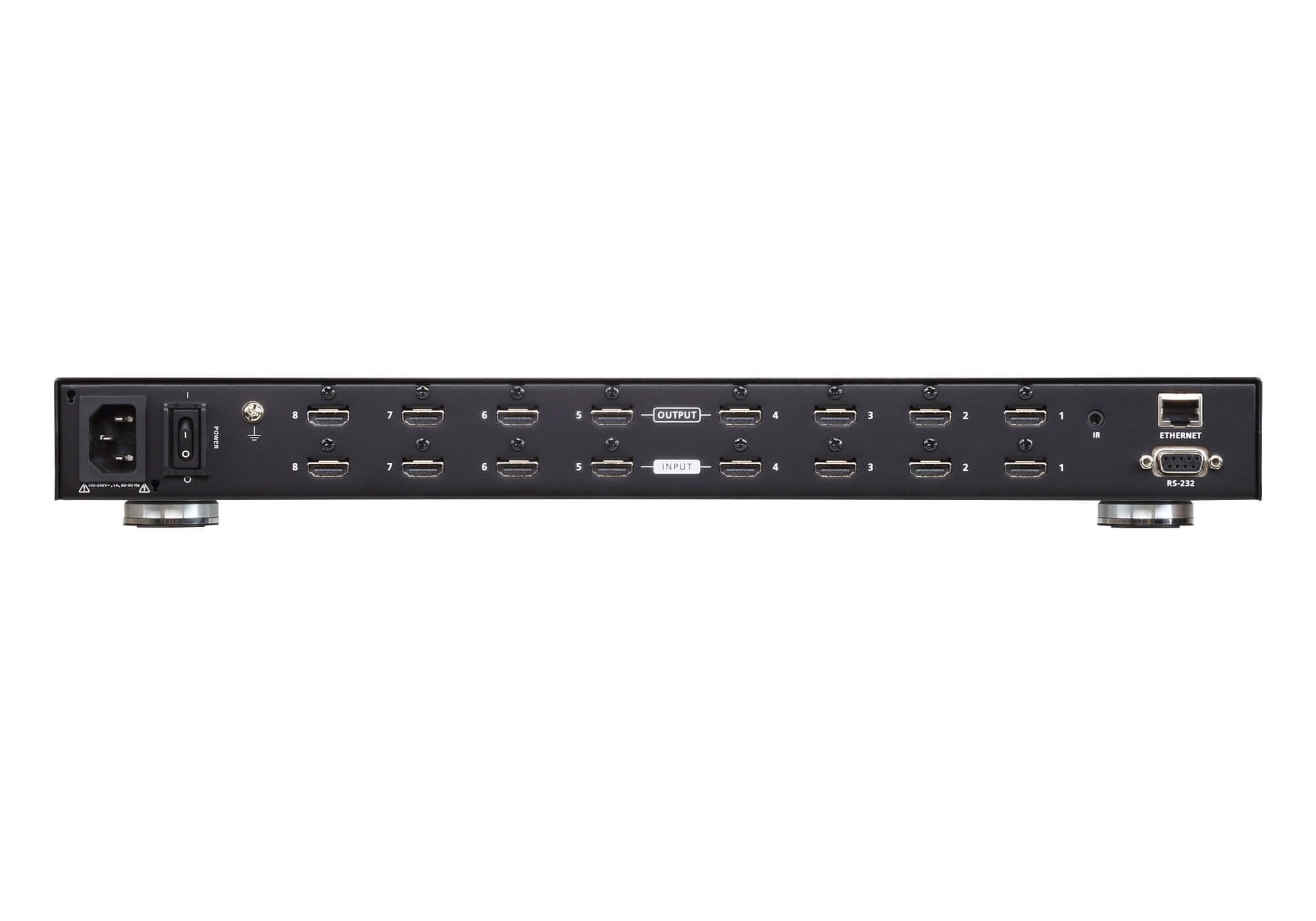

Video Input
Interfaces8 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance5.0 m / 4K@60Hz (4:4:4)
Video Output
Interfaces8 x HDMI Type A Female (Black)
Max. Distance5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance100 Ω
Video
Max. Pixel Clock600 MHz
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate18 Gbps( 6 Gbps Per Lane)
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Environmental
Operating Temperature0-40°C
Humidity0 - 80% RH, Non-Condensing
Storage Temperature-20 - 60°C
Physical Properties
Weight3.99 kg ( 8.79 lb )
HousingMetal
Dimensions (L x W x H)43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Connectors
Power1 x 3-Prong AC Socket
Carton Lot1 pc
Power ConsumptionAC110V:38.1W:179BTU
AC220V:37.8W:177BTU
Power
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A
