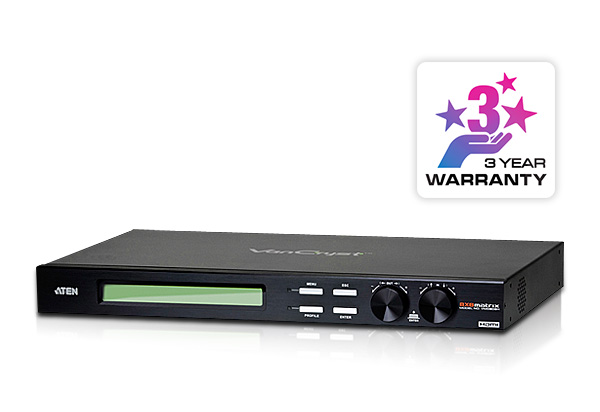

8x8 HDMI Matrix Switch

Product Code : VM0808H

Brand Category : Video Matrix Switches

Description

Connects any of 8 HDMI sources to any of 8 HDMI displays
Long Distance Transmission – supports up to 20 meters (24 AWG)
HDMI (3D, Deep Color) and HDCP compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
Easily switch between multiple sources and multiple displays

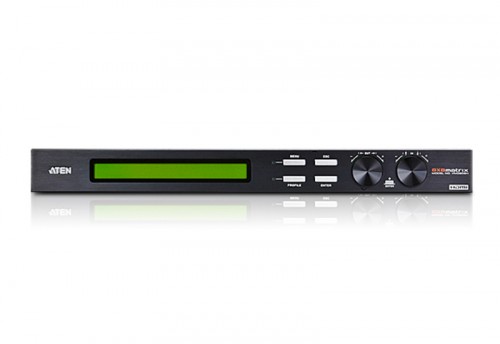

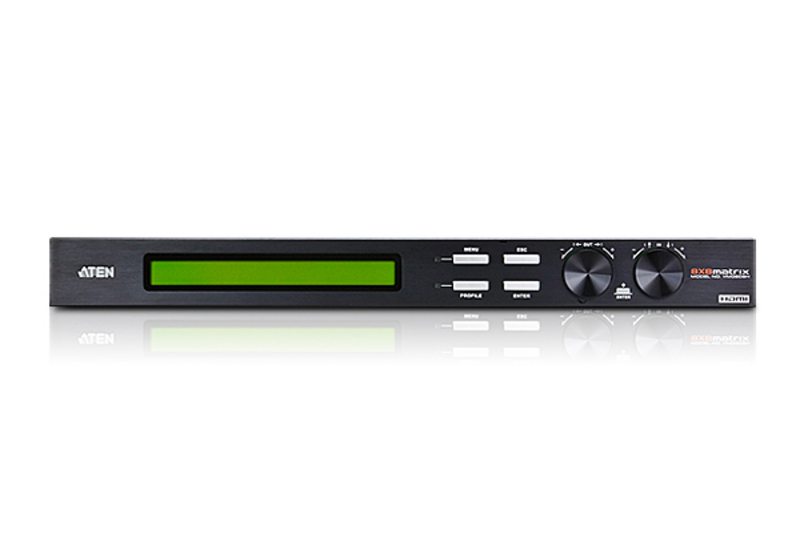

Front Panel Configuration:
• Front panel LCD display
• Tuner Dials and Pushbuttons
• IR Remote Control
System Operation:
• Serial controller
• Browser Graphical User Interface (GUI)
Superior video quality – HDTV resolution of 480p, 720p, 1080i, and 1080p (1920 x 1080), VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
Features EDID Expert technology:
• EDID Library with 14 default EDID configurations
• Built-in EDID Mode selection
• Copies a display's EDID to selected source devices
ESD protection for HDMI
Supports Dolby True HD and DTS HD Master audio
Signaling rates up to 2.25 Gbits in support of 1080p display
Feature EDID Expert technology to set up different confi gurations via different EDID modes
Power on Detection – If an HDMI sources is powered off, the VM0808H can automatically switch to the next powered-on source
Firmware upgradeable
Rack Mountable

* Note: The VM0808H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15 m
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Max. Distance	Up to 15 m
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
EDID Settings	EDID Mode: Default / Port1 / Remix
Connectors
Power	1 x 3-Prong AC Socket
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1.0A
Power Consumption	120 VAC, 32W; 230 VAC, 34W
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	4.01 kg ( 8.83 lb )
Dimensions (L x W x H)	43.24 x 27.12 x 4.40 cm (17.02 x 10.68 x 1.73 in.)
Carton Lot	1 pc
