A-226QEN

A-226QEN

Product Code : A-226QEN

Brand Category : Two-way ceiling speakers with rear boxes


Description

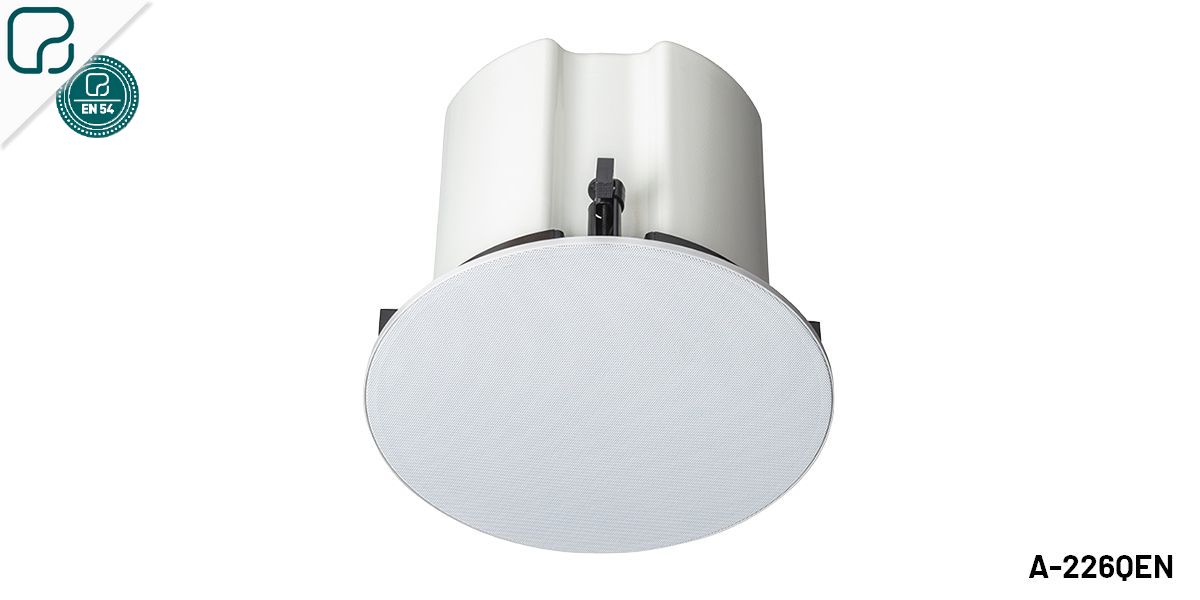

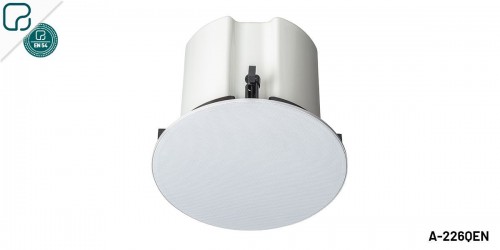

Two-way loudspeaker with 50 W RMS, 100 V line, suitable for broadcasting voice messages and background music with excellent sound quality. It also has a low impedance connection. With frameless metal grille and sturdy metal housing. Quick installation by rotating tabs.


Add to Query Cart PDF Download


Technical Specification


Two-way loudspeaker with 50 W RMS, 100 V line, suitable for broadcasting voice messages and background music with excellent sound quality. It also has a low impedance connection. With frameless metal grille and sturdy metal housing. Quick installation by rotating tabs.

Speaker

tweeter + 6,5”

RMS power

50 W (100 V), 50 W (8 Ω)

Power selection

50, 25, 12.5 & 6.25 W (100 V)

SPL 1 m, 1kHz

89.5 dB (1 W) / 106.5 dB (50 W)

Frequency response

80 ~ 22,200 Hz

Dimensions (mm)

Ø 264 x 240. Ceiling cut-out Ø 238

Weight

3.75 kg

Finish

steel, metallic grille, white (RAL 9016)

Regulations

EN 54-24 / BS 5839, p.8
