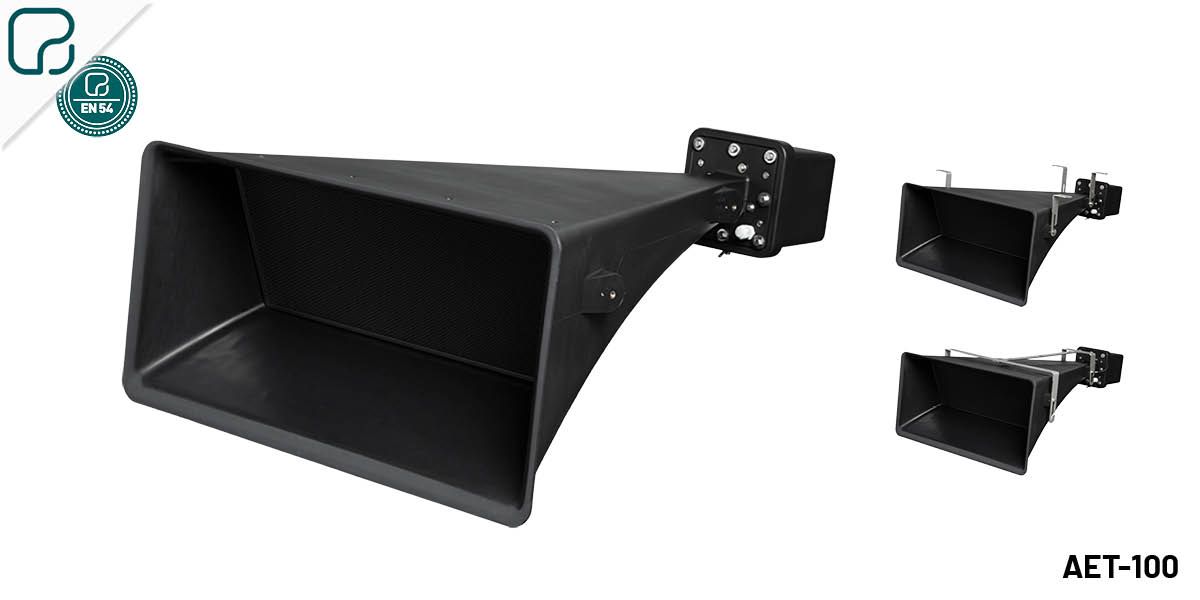

Product Code : AET-100

Brand Category : Horn speaker for tunnels


Description


Weather-proof horn speaker for voice alarm applications. It has been developed for areas with extreme high ambient noise and is suitable for indoor and outdoor application, especially tunnels. It is built to withstand corrosive atmospheric contaminants, high moisture levels and temperature extremes. The horn provides a very high sound pressure level, a very balanced frequency response and a very low distortion. Made of flame retardant plastic (UL 94 V-0) in black, it has IP 65 protection and is equipped with a ceramic block and a thermal fuse. The 100W speaker driver is of high quality and high performance. In addition, robust 2 x PG13.5 cable glands are provided. Sturdy installation by rust-free V4A stainless steel brackets and screws (1.4401 according to ISO 3506 / EN 10088-3; AISI 316), with the AET-100WH accessory consisting of 4 individual mounting brackets, or the AET100PH accessory, in one piece.


Add to Query Cart PDF Download


Technical Specification


Rated Power (RMS) 100 V

100 W, 50 W & 25 W

Impedance

100 Ω, 200 Ω & 400 Ω

Sensitivity

113 dB SPL at 1 W IEC268-5

Sound Pressure

133 dB SPL at 100 W IEC268-5

Sensitivity EN54-24

101 dB SPL at 1 W / 4 m

Frequency Response

250 ~ 10,000 Hz

Dispersion 1kHz / 4kHz

35º H, 25º V / 54º H, 15º V

Temperature range

-25ºC ~ +70ºC

Protection degree

IP65

Dimensions (mm) & weight

1228 x 832 x 413. 16 kg

Finish

Plastic (UL 94 V-0), black colour

Power selection

Terminals (4-pin)

Standard

EN54

Other

Thermal fuse ans ceramic terminals

Mounting accessories

AET-100WH (standar bracket, 4 pieces)

(not included)

AET-100PH (premium bracket, 1 piece)
