ATEN Control System - 8-button Control Pad (US, 1 Gang)

Product Code : VK0100

Brand Category : Control System

Description

Supports various interface connections:
• 2 x RS-232 ports
• 2 x Relay channels
• 1 x Digital input channel
• 1 x Ethernet port

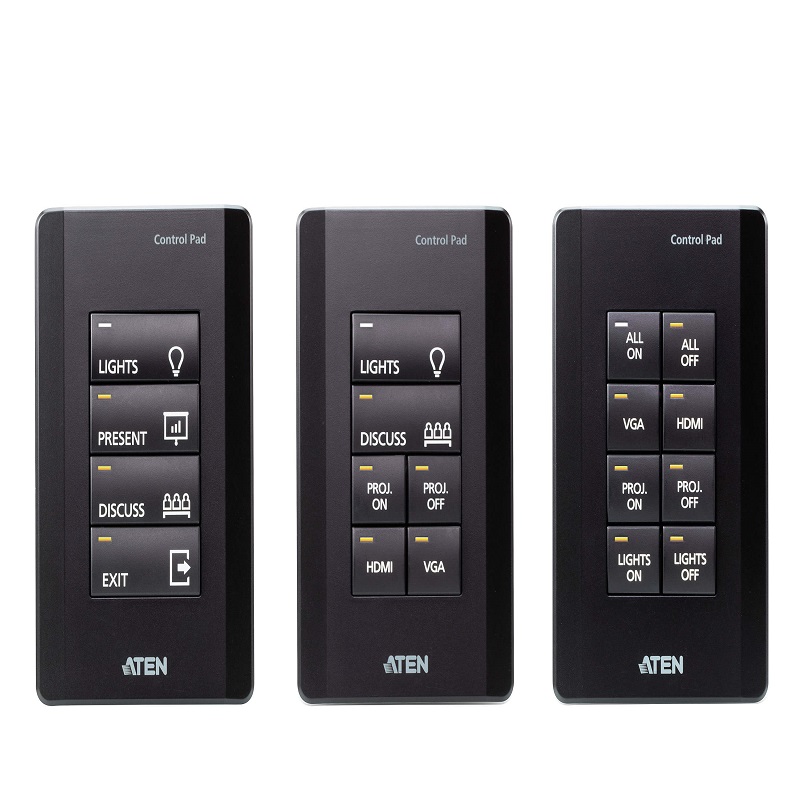

Fully customizable with 14 layout combinations of 4 to 8 buttons

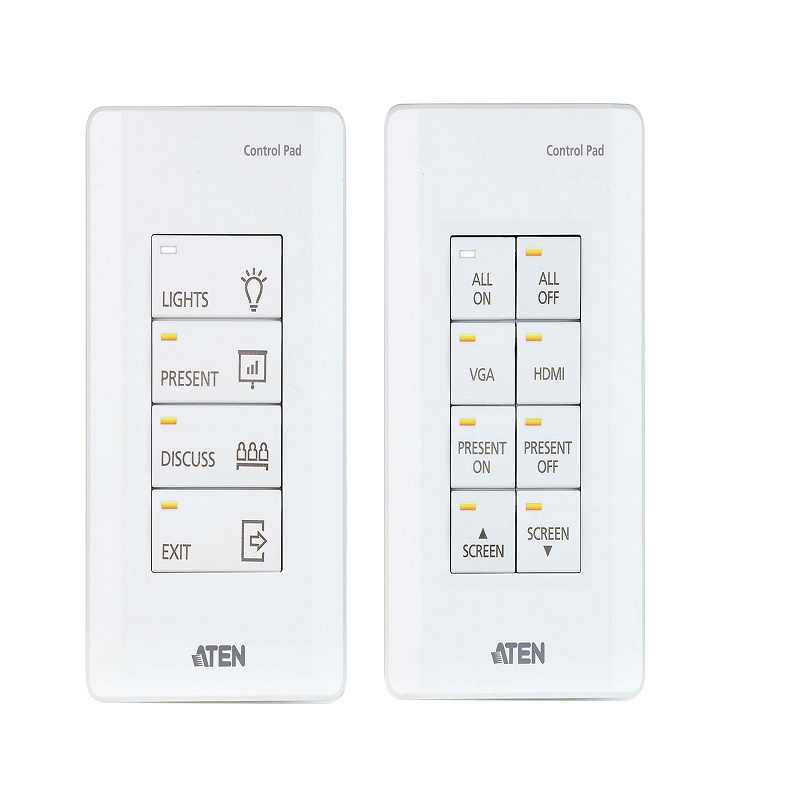

Available in black or white color
Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
Supports native KNX IP for building management systems
TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
Supports Telnet CLI (command-line interface) mode for third-party system integration
Supports project file backup¹
Web GUI for easy system configuration
Supports SSH communication for data monitoring²
LED indication of connection and hardware status
Dual-color LEDs for clear indication in dark environments
Redundant power supplies – Power over Ethernet (PoE) and DC 5V (optional)
Customized button engraving service
Allows for remote control via mobile device³

Note:
1. Each ATEN Control Box is capable of backing up one project file.
2. The SSH protocol can be used for monitoring the receiving/transmission data of the Control Pad.
3. Mobile device control requires a license. Please refer to the Specifications or contact your local sales representative for more details about licenses.

Technical Specification

Interfaces
Keypad Layout	4~8 buttons customizable in 14 keypad layouts
Serial	• 2 x Bi-directional RS-232 Port (2 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), even or odd
Relay	• 2 x Relay Channel (2 x 2-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 1A
I/O	• 1 x Digital Input Channel (1 x 2-Pole Terminal Block Connector); – VDC Mode Input Voltage Range: 0 to 5 VDC; Programmable Range: 1 to 5 VDC; – Dry Contact Mode Pull-up 2k ohms to + 5 VDC
Ethernet	• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Switches
Controller ID	1 x 16-segment Switch
Reset Button	1 x Semi-recessed Pushbutton
Power Consumption	DC5V:1.1W:5BTU POE:1.375W:6BTU
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.16 kg ( 0.35 lb )
Dimensions (L x W x H)	11.63 x 7.06 x 4.80 cm (4.58 x 2.78 x 1.89 in.)
License
Max. No. Allowed	10 licenses
Note	Each time a mobile device connects to an ATEN Control Pad for remote control, one license on the Control Pad will be occupied. To purchase and add additional licenses to your ATEN Control Pad, contact your local sales representative for more information.
