ATEN Control System - 8-button Keypad (US, 1 Gang)

ATEN Control System - 8-button Keypad (US, 1 Gang)

Product Code : VK108US

Brand Category : Control System

Description

  • Key pad - provides physical connection to the ATEN Control System

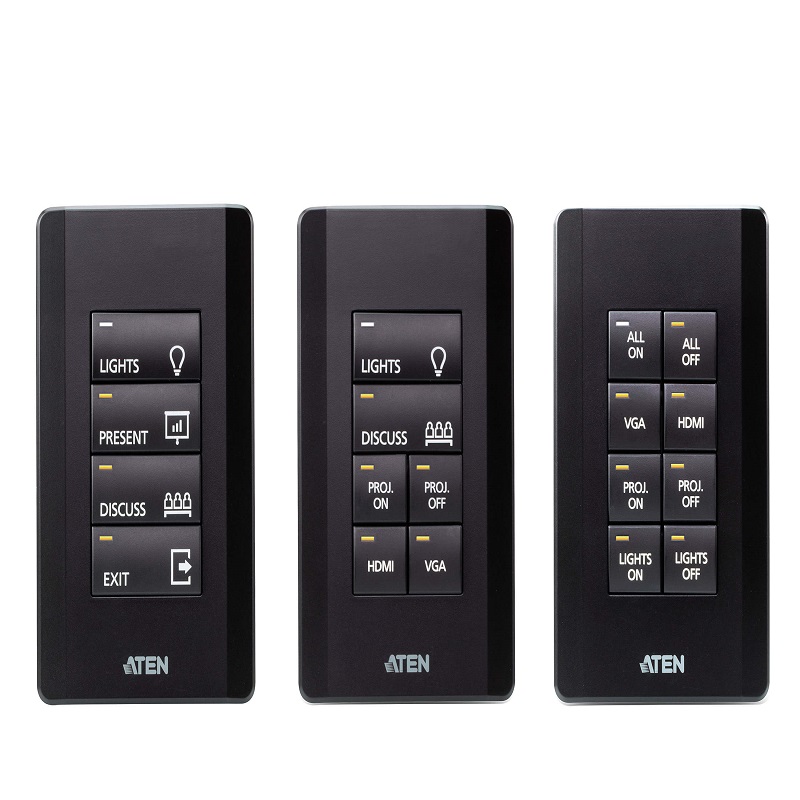

  • Fully customizable with 14 layout combinations of 4 to 8 buttons

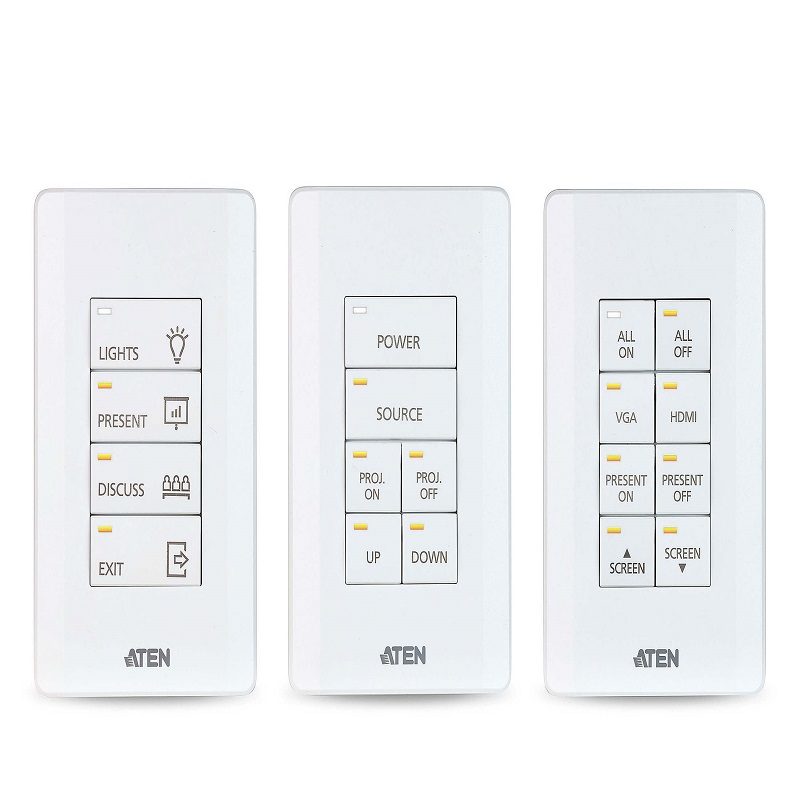

  • Available in black or white color
  • System LED indicators for quick connection status check
  • Dual-color button LEDs for clear indication and visibility in dark environments
  • Easy ID pairing with Control Box for Ethernet communication
  • Up to 8 keypads connect to a single Control Box for future scalability
  • Unrestricted modes support flexible behavior settings for each button
  • Intuitive web GUI for easy keypad configuration
  • Dual power supply – DC 5V or Power over Ethernet
  • Customized button engraving service

Add to Query Cart PDF Download

Technical Specification

Interfaces
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Keypad Layout4~8 buttons customizable in 14 keypad layouts
Switches
Controller ID1 x 16-segment Switch
Keypad ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
Power ConsumptionDC5V:1.25W:6BTU
DC48V:1.58W:7BTU
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.)
Faceplate Dimensions (L x W x H)11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
