ATEN Control System - Compact Control Box Gen. 2 with Dual LAN

ATEN Control System - Compact Control Box Gen. 2 with Dual LAN

Product Code : VK1200

Brand Category : Control System

Description

  • VK1200 Control Box with Dual LAN
    • High performance processor embedded with quad-core CPU and 1 GB memory for designing and controlling complex projects
    • Dual, isolated LAN for secured communication among IT devices
    • Supports various interface connections for hardware-software integration and mobile device control
    • DC outputs for power supply connections
    • USB port for easy project upload

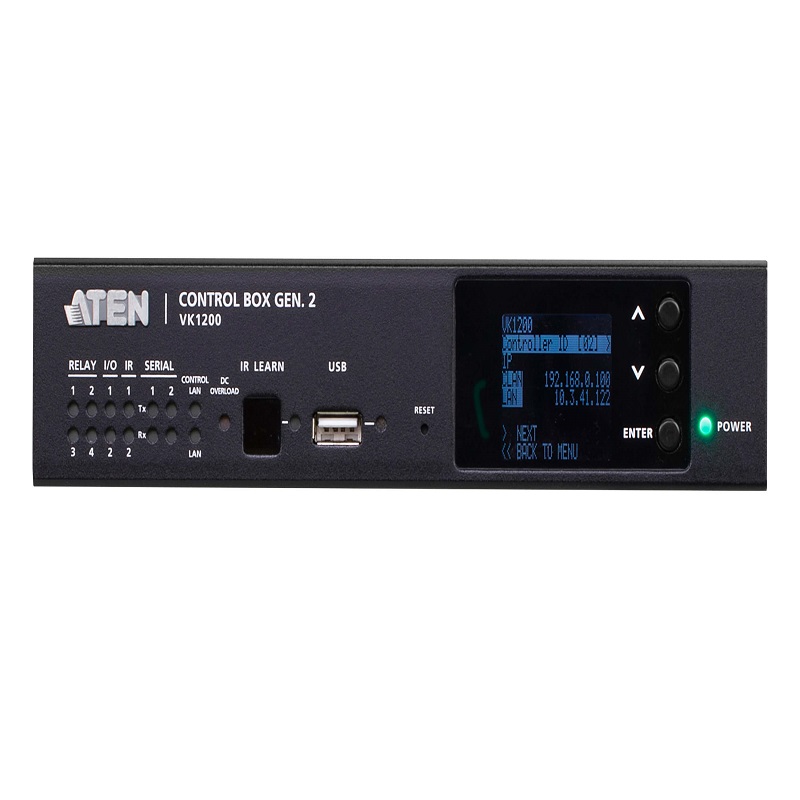

    • LCD display shows the option for configuration and information display
    • IR learning function for adding IR device drivers
    • Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
    • Supports native KNX IP for building management systems
    • Telnet, TCP, UDP, HTTP, HTTPS, ONVIF, and PJLink compliant
    • Supports Pronto formatted IR codes – IR command codes can be entered in Hex format
    • Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
    • Supports Telnet CLI (command-line interface) mode for third-party system integration
    • Supports centralized control and management by ATEN Unizon™.
    • Supports project file backup
    • Web GUI for easy system configuration
    • Supports SSH communication for data monitoring
    • LED indication of connection and hardware status
    • 2 free licenses for mobile control*

      Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, see Specifications.

Add to Query Cart PDF Download

Technical Specification

Memory
SDRAM1GB
Flash8GB
Interfaces

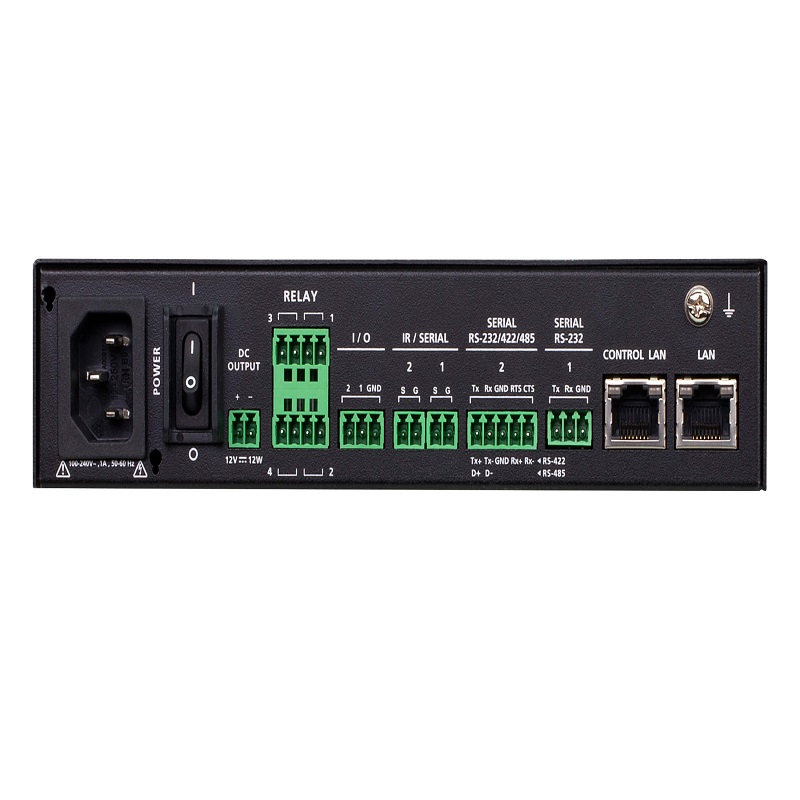

Serial• 1 x Programmable Bi-directional RS-232/422/485 Port
(1 x 5-Pole Terminal Block Connector, configurable via pin assignments);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd;
 – Flow Control: None (default) or RTS/CTS
• 1 x Bi-directional RS-232 Port
(1 x 3-Pole Terminal Block Connector);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd
IR/Serial• 2 x Programmable IR / Uni-directional RS-232 Port
(2 x 2-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd
Relay• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A
I/O• 2 x Programmable Digital Input / Output Channel
(1 x 3-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
 – VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
 – Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
Ethernet• 2 x RJ-45 Female, 10/100/1000Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Control LAN:
• Support DHCP Server
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
LAN:
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.1.60
Subnet Mask: 255.255.255.0
VDC• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 1A Max
USB1 x USB Type A
Switches
Power1 x On/Off Switch
IR Learning1 x IR Receiver LED
Panel Spec
Size1.6""
Resolution128X64
Pushbuttons
Select3 x Pushbuttons (Up, Down, Enter)
Reset Button1 x Semi-recessed Pushbutton
Power ConsumptionAC110V:4.7W:81BTU
AC220V:4.5W:81BTU
Power
Maximum Input Power RatingInternal Power: 100-240 VAC, 50-60 Hz
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight1.23 kg ( 2.71 lb )
Dimensions (L x W x H)20.00 x 16.41 x 4.40 cm
(7.87 x 6.46 x 1.73 in.)
License
Basic (free)2 free licenses
Max. No. Allowed32 licenses
NoteThe ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.
