ATEN Control System - Control Box

ATEN Control System - Control Box

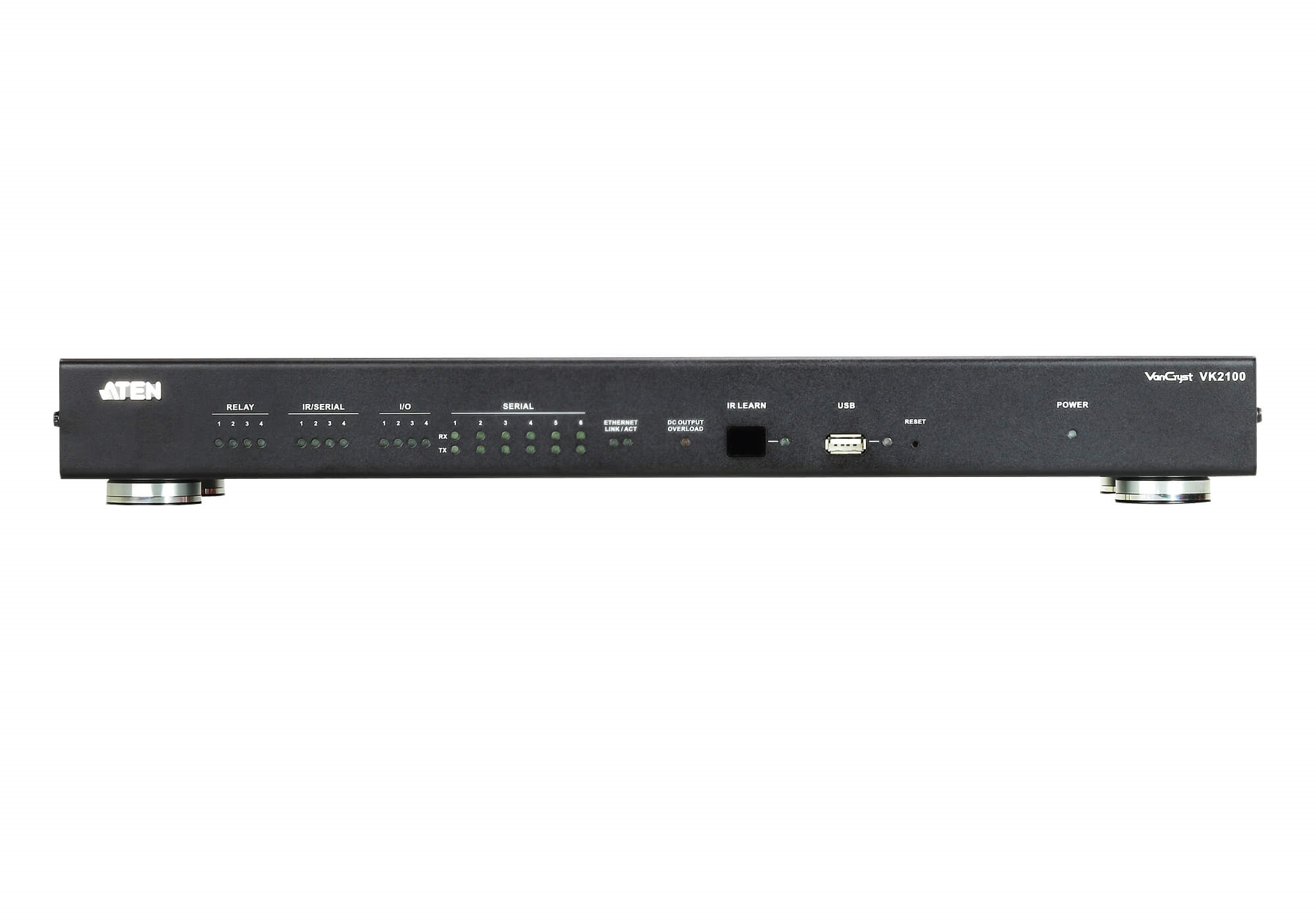

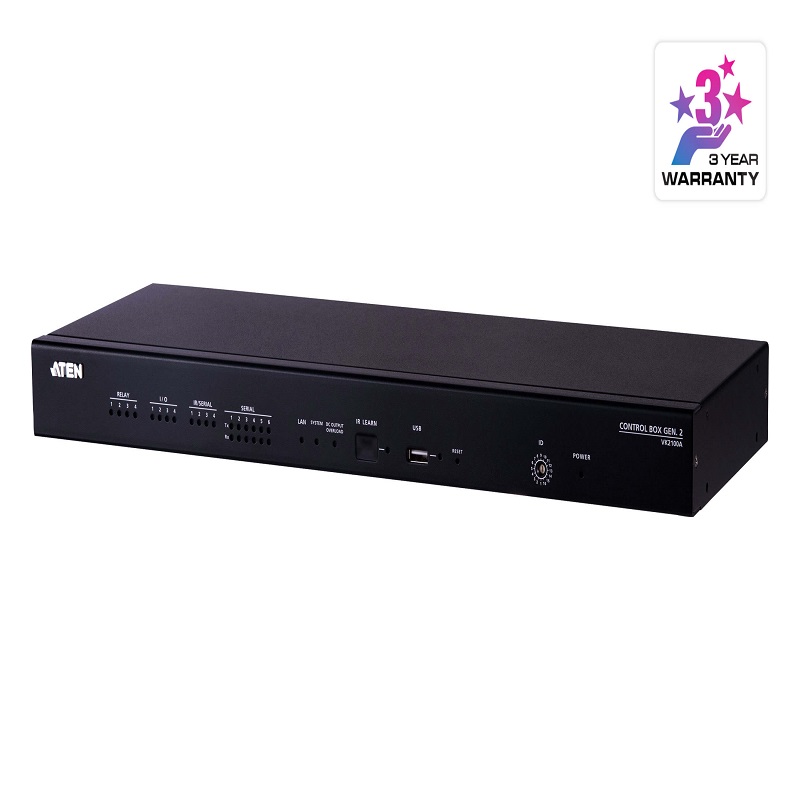

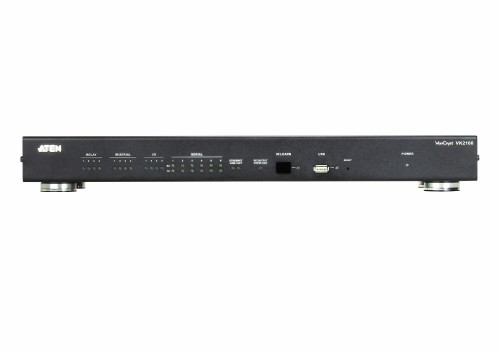

Product Code : VK2100

Brand Category : Control System

Description

  • VK2100 Control Box
    • Supports various interface connections for hardware-software integration and the mobility of control
    • 4 x DC outputs for power supply connections
    • 1 x USB port for easy profile upload
    • Easy ID paring with Expansion Boxes and Keypads for Ethernet communication
    • IR learning function for adding IR device drivers
    • Supports native KNX IP for building management systems
    • Telnet, TCP, UDP, HTTP, HTTPS, ONVIF, and PJLink compliant
    • Supports project file backup
    • Web GUI for easy system configuration
    • Supports SSH communication for data monitoring
    • LED indication of connection and hardware status
    • Rack-mountable
    • 2 free licenses for mobile control*
      Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, see Specifications.



  • VK6000 Configurator Software
    • Simple profile setup with easy configuration steps via intuitive GUI
    • Customizable GUI to be used on mobile devices and PC
    • Supports ControlAssist that allows PC control (PC shutdown, media files, PowerPoint files)*
    • Built-in Database Generator for device driver setup and overall device management
    • Built-in ATEN Library comprising 10,000+ device drivers and complete ATEN VanCryst product drivers
    • Scheduling for repeating events
    • Programming-based Script Editor for complex monitoring scenario handling
    • Two-way communication enables user-defined event monitoring to automatically trigger the next actions
    • Test tool to verify commands in action before uploading the profile to the VK2100 / VK1100 Control Box
    • Simulator to simulate and review the customized GUI before uploading
      *Note: For details on the supported PC control actions, refer to the ATEN Control System User Manual.



  • ATEN Control System App
    • Allows administrators central control of multiple rooms via profiles on a mobile device or tablet computer
    • Restrict user access to profiles via password authentication
    • Synchronization of system controls amongst multiple mobile devices and tablet computers
    • Any iOS, Android, or Windows mobile device can be used to control the system – no need to purchase costly exclusive user panels

Add to Query Cart PDF Download

Technical Specification

Interfaces
IR/Serial• 4 x Programmable IR / Uni-directional RS-232 Port
(2 x 4-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 ( + - 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd
Serial• 4 x Programmable Bi-directional RS-232/422/485 Port
(4 x DB9 Male Connector, configurable via pin assignments);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd;
 – Flow Control: None (default) RTS/CTS
• 2 x Bi-directional RS-232 Port
(2 x 3-Pole Terminal Block Connector);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), even or odd
I/O• 4 x Programmable Digital Input / Output Channel
(1 x 5-Pole Terminal Block Connector);
Digital Output:
250 mA sink from 12 VDC
Digital Input:
 – VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
 – Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
Relay• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A
VDC• 4 x 12 VDC Output Port (2 x 4-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 2A Max (shared by 4 ports)
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
• Establishes VK2100 connection with the VK6000 (ATEN Configurator) and iPad (ATEN Control System App)
USB1 x USB Type A
Switches
Controller ID1 x 16-segment Switch
Power1 x On/Off Switch
IR Learning1 x IR Receiver LED
Reset Button1 x Semi-recessed Pushbutton
Power ConsumptionAC110V:4.8W:135BTU
AC220V:5.7W:140BTU
Power
Maximum Input Power RatingInternal Power: 100-240 VAC, 50-60 Hz
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight2.64 kg ( 5.81 lb )
Dimensions (L x W x H)43.72 x 16.32 x 4.40 cm
(17.21 x 6.43 x 1.73 in.)
License
Basic (free)2 free licenses
Max. No. Allowed16 licenses
NoteThe ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.
