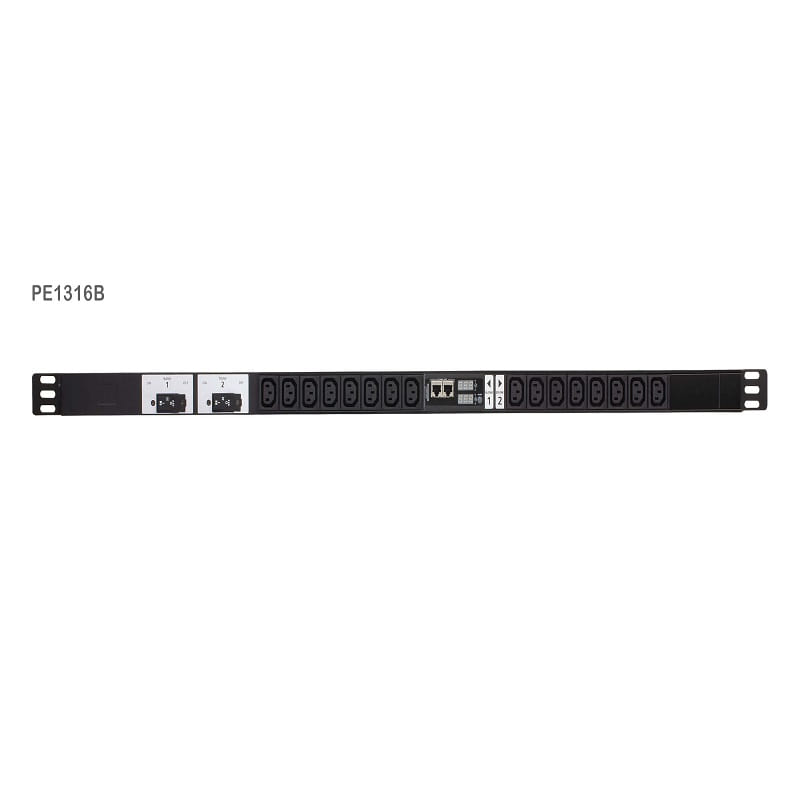

Product Code : PE1316B
Brand Category : Rack PDU
| Electrical | |
| Nominal Input Voltage | 100-240 VAC |
| Maximum Input Current | 30A Max (UL de-rated 24A Max) |
| Input Frequency | 50-60 Hz |
| Input Connection | NEMA L6-30P |
| Input Power | 7200VA(Max); 5760VA(UL de-rated) |
| Outlet Type | (16) IEC 320 C13 |
| Maximum Output Current (Outlet) | 15A Max (UL de-rated 12A Max) |
| Maximum Output Current (Bank) | 20A Max (UL de-rated 16A Max) |
| Maximum Output Current (Total) | 30A Max (UL de-rated 24A Max) |
| OPD(Overcurrent Protection Device) | Yes |
| Physical Properties | |
| Dimensions (L x W x H) | 108.71 x 4.44 x 6.00 cm (42.8 x 1.75 x 2.36 in.) |
| Weight | 3.40 kg ( 7.49 lb ) |
| Power Cord Length | 10ft(10#) |
| Environmental | |
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ |
| Elevation (Operating / Storage) | 3000m |
| Compliance | |
| EMC Verification | FCC Class A |
| Safety Verification | UL, other by request |
