Basic Metered 0U PDU with Surge Protections

Product Code : PE1116SS

Brand Category : Rack PDU

Description

Space saving 0U rack mount design
IEC or NEMA outlet models
Surge protection
Dual 3-digit 7-segment displays to show current and voltage
Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box

Technical Specification

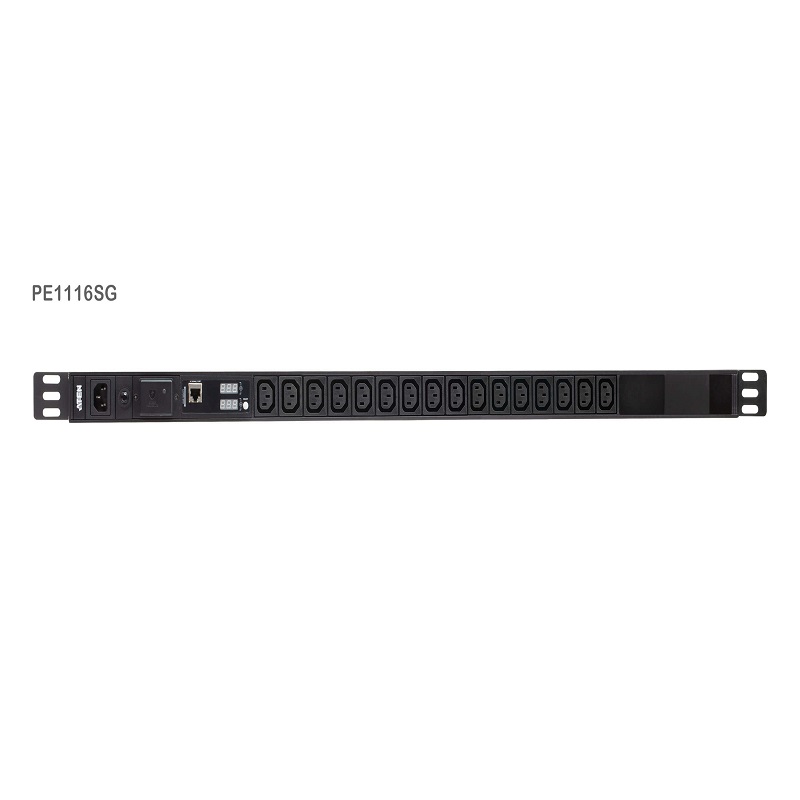

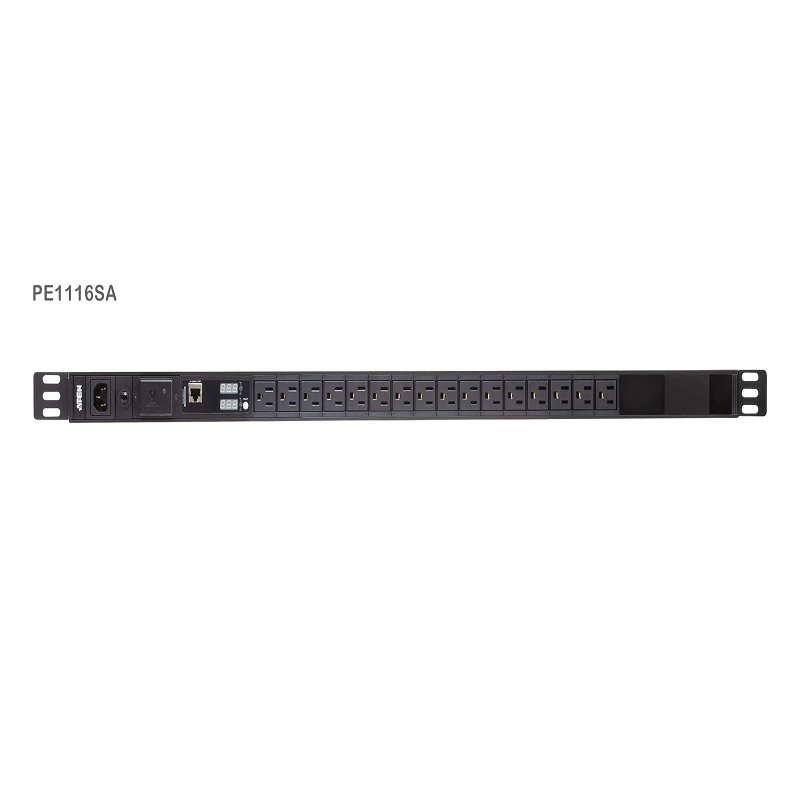

Function	PE1116SA	PE1116SG
Electrical
Nominal Input Voltage	100-120 VAC	100-240 VAC
Maximum Input Current	15A Max (UL de-rated 12A Max) (PSE 10A)	10A Max
Input Frequency	50-60 Hz	50-60 Hz
Input Connection	NEMA 5-15P	IEC-320 C14
Input Power	1800VA(Max); 1440VA(UL de-rated)	2400VA(Max)
Outlet Type	(16) NEMA 5-15R	(16) IEC 320 C13
Maximum Output Current (Outlet)	15A Max (UL derating 12A Max) (PSE 10A)	10A Max
Maximum Output Current (Bank)	15A Max (UL derating 12A Max) (PSE 10A)	10A Max
Maximum Output Current (Total)	15A Max (UL derating 12A Max) (PSE 10A)	10A Max
OPD(Overcurrent Protection Device)	Yes	Yes
Physical Properties
Dimensions (L x W x H)	96.71 x 4.44 x 6.00 cm (38.07 x 1.75 x 2.36 in.)	96.71 x 4.44 x 6.00 cm (38.07 x 1.75 x 2.36 in.)
Weight	1.30 kg ( 2.86 lb )	1.30 kg ( 2.86 lb )
Power Cord Length	10ft(14#)	10ft(3×1.0mm2)
Environmental
Temperature (Operating / Storage)	0 – 40℃ / -20 – 60℃	0 – 40℃ / -20 – 60℃
Elevation (Operating / Storage)	3000m	3000m
Compliance
EMC Verification	FCC Class A	CE Class A
Safety Verification	UL, other by request	CE,LVD, UL
