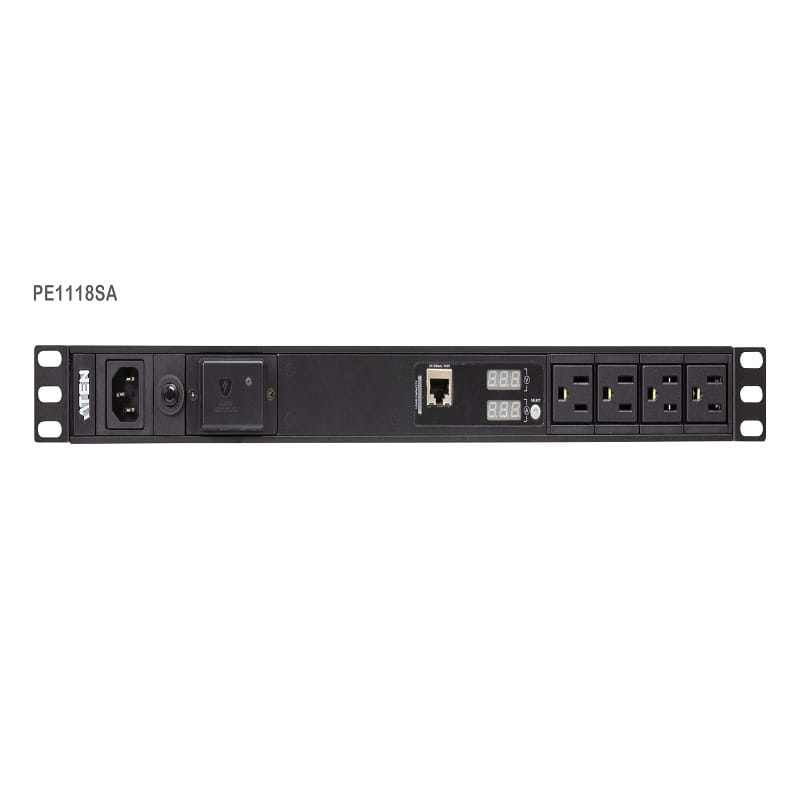

Basic Metered 1U PDU with Surge Protection

Product Code : PE1118S

Brand Category : Rack PDU

Description

Space saving 1U rack mount design
IEC or NEMA outlet models
Surge protection
Dual 3-digit 7-segment displays to show current and voltage
Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box

Technical Specification

Function	PE1118SA	PE1118SG
Electrical
Nominal Input Voltage	100-120 VAC	100-240 VAC
Maximum Input Current	15A Max (UL de-rated 12A Max) (PSE 10A)	10A Max
Input Frequency	50-60 Hz	50-60 Hz
Input Connection	NEMA 5-15P	IEC-320 C14
Input Power	1800VA(Max); 1440VA(UL de-rated)	2400VA(Max)
Outlet Type	(18) NEMA 5-15R	(18) IEC 320 C13
Maximum Output Current (Outlet)	15A Max (UL de-rated 12A Max) (PSE 10A)	10A max
Maximum Output Current (Bank)	15A Max (UL de-rated 12A Max) (PSE 10A)	10A max
Maximum Output Current (Total)	15A Max (UL de-rated 12A Max) (PSE 10A)	10A max
OPD(Overcurrent Protection Device)	Yes	Yes
Physical Properties
Dimensions (L x W x H)	48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.)	48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.)
Weight	1.30 kg ( 2.86 lb )	1.30 kg ( 2.86 lb )
Power Cord Length	10ft(14#)	10ft(3×1.0mm2)
Environmental
Temperature (Operating / Storage)	0 – 40℃ / -20 – 60℃	0 – 40℃ / -20 – 60℃
Elevation (Operating / Storage)	3000m	3000m
Compliance
EMC Verification	FCC Class A	FCC Class A
Safety Verification	UL, other by request	CE, LVD, UL
