Basic PDU Series

Basic PDU Series

Product Code : PE0112

Brand Category : Rack PDU


Description


  • Basic PDU
    • Space saving -1U rack mount design
    • IEC or NEMA outlet models
    • Aluminum material



  • Typical Applications
    • Servers
    • Network Devices
    • Telecom Equipment

Add to Query Cart PDF Download


Technical Specification


FunctionPE0112APE0112G
Electrical
Nominal Input Voltage100-120 VAC100-240 VAC
Maximum Input Current15A(Max)
(UL de-rated 12A Max)
(PSE 10A)
10A(Max)
Input Frequency50-60 Hz50-60 Hz
Input ConnectionNEMA 5-15PIEC-320 C14
Input Power1800VA(MAX);
1440VA(UL de-rated)
2400 VA(Max)

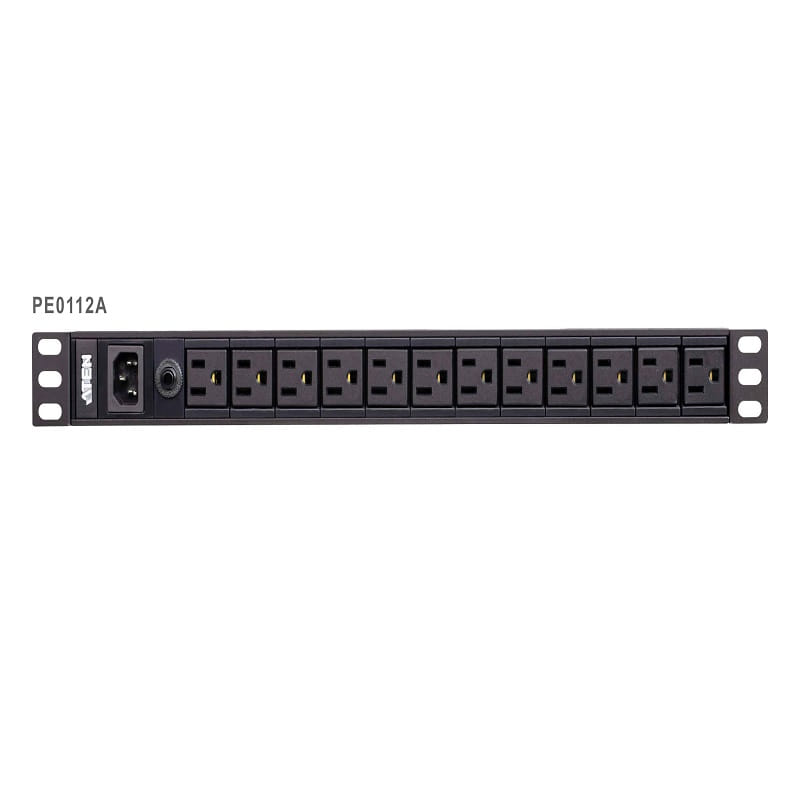

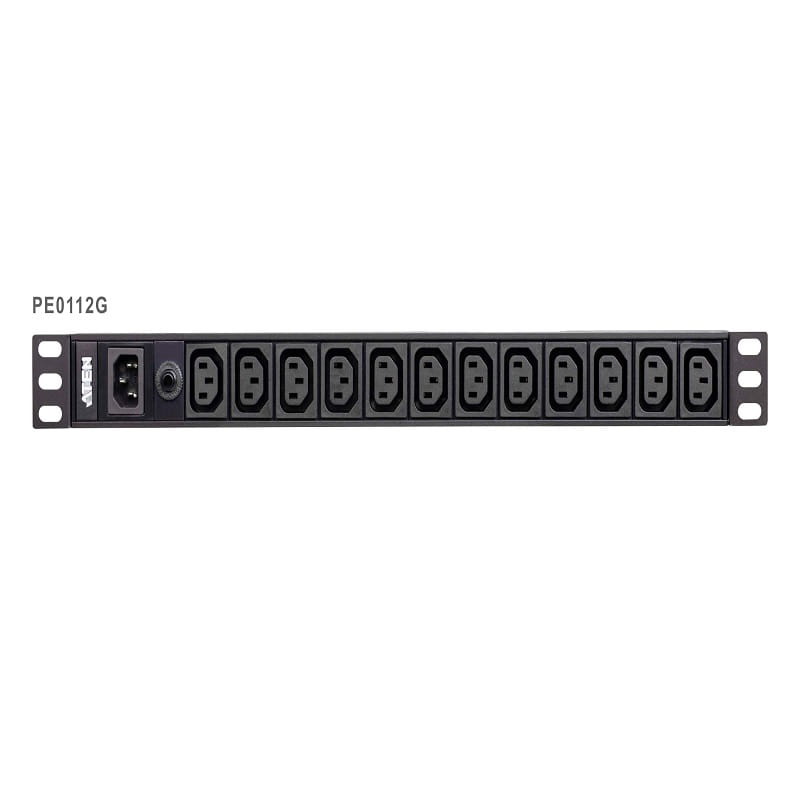

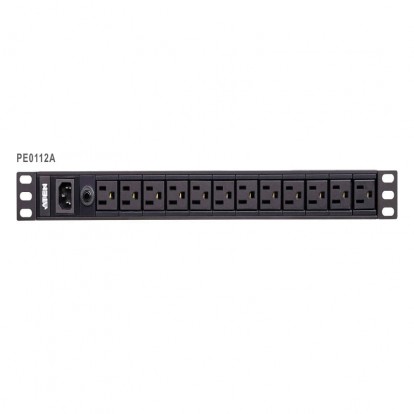

Outlet Type(12) NEMA 5-15R(12) IEC 320 C13
Nominal Output Voltage120 VAC240V
Maximum Output Current (Outlet)15A(Max)
(UL de-rated 12A Max)
(PSE 10A)
10A(Max)
Maximum Output Current (Bank)15A(Max)
(UL de-rated 12A Max)
(PSE 10A)
10A(Max)
Maximum Output Current (Total)15A(Max)
(UL de-rated 12A Max)
(PSE 10A)
10A(Max)
OPD(Overcurrent Protection Device)YesYes
Physical Properties
Dimensions (L x W x H)48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
Weight0.65 kg ( 1.43 lb )0.65 kg ( 1.43 lb )
Power Cord Length10ft(14#)10ft(3×1.0mm2)
Environmental
Temperature (Operating / Storage)0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
Elevation (Operating / Storage)3000m3000m
Compliance
EMC VerificationFCC Class ACE Class A
Safety VerificationULCE,LVD, UL
