Basic PDU Serieses

Basic PDU Serieses

Product Code : PE0212

Brand Category : Rack PDU


Description


  • Basic PDU
    • Space saving -1U rack mount design
    • IEC or NEMA outlet models
    • Aluminum material



  • Typical Applications
    • Servers
    • Network Devices
    • Telecom Equipment

Add to Query Cart PDF Download


Technical Specification


FunctionPE0212APE0212BPE0212G
Electrical
Nominal Input Voltage100-120 VAC100-240 VAC100-240 VAC
Maximum Input Current20A Max
(UL de-rated 16A Max)
20A (Max)
(UL de-rated 16A Max)
16A (Max)
Input Frequency50-60 Hz50-60 Hz50-60 Hz
Input ConnectionFor A Plug NEMA L5-20P
For A2 Plug : NEMA 5-20P
NEMA L6-20PIEC-320 C20
Input Power2400VA(MAX);
1920VA(UL de-rated)
4800VA(Max);
3840VA(UL de-rated)
3840VA(Max)

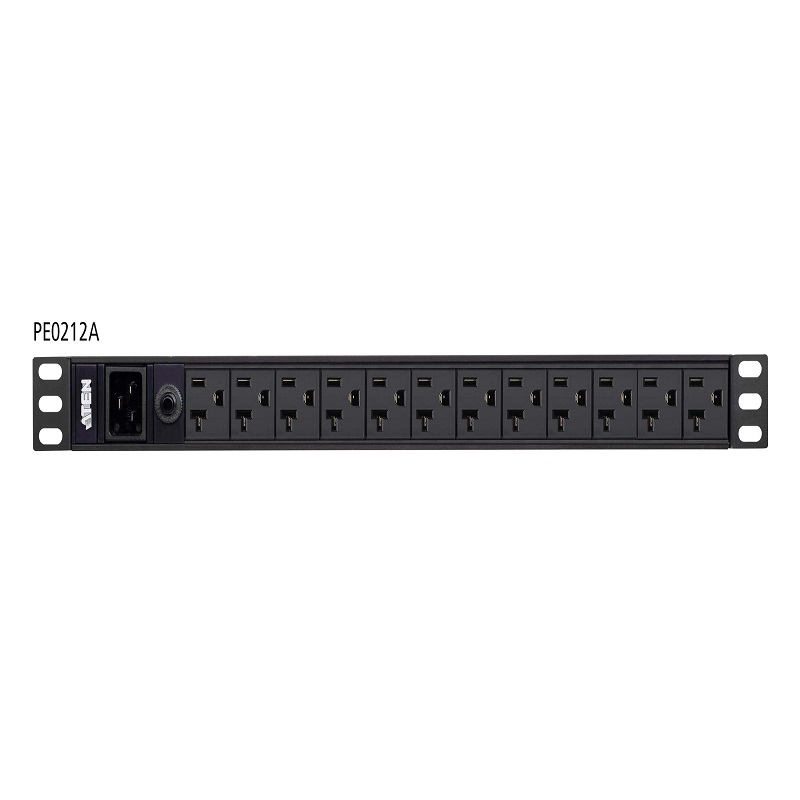

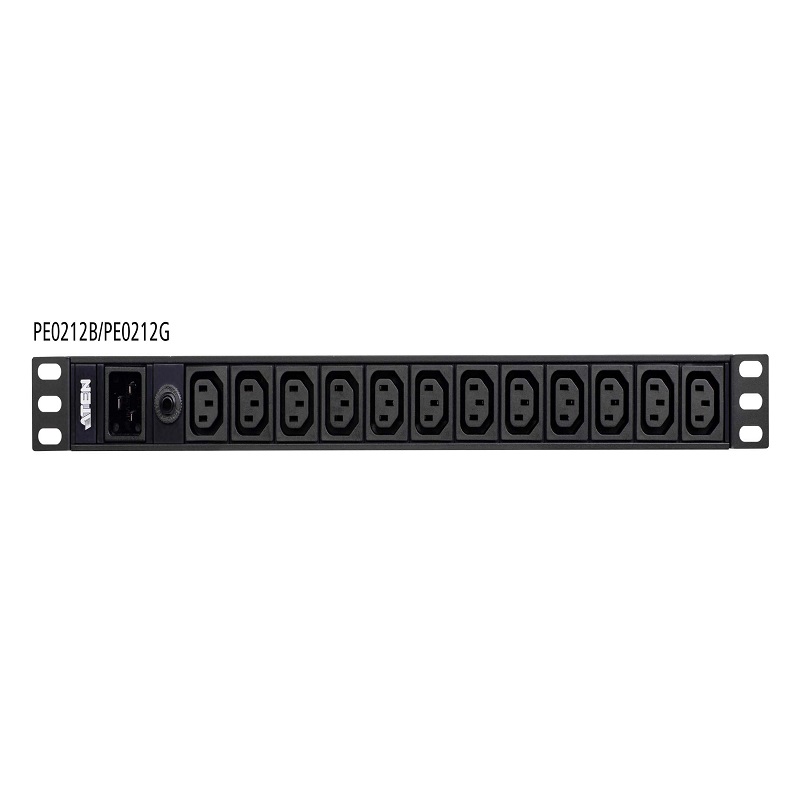

Outlet Type(12) NEMA 5-20R(12) IEC 320 C13(12) IEC 320 C13
Maximum Output Current (Outlet)20A (Max)
(UL de-rated 16A Max)
15A (Max)
(UL de-rated 12A Max)
10A (Max)
Maximum Output Current (Bank)20A (Max)
(UL de-rated 16A Max)
20A (Max)
(UL de-rated 16A Max)
16A (Max)
Maximum Output Current (Total)20A (Max)
(UL de-rated 16A Max)
20A (Max)
(UL de-rated 16A Max)
16A (Max)
OPD(Overcurrent Protection Device)YesYesYes
Physical Properties
Dimensions (L x W x H)48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
Weight0.63 kg ( 1.39 lb )0.63 kg ( 1.39 lb )0.63 kg ( 1.39 lb )
Power Cord Length10ft(12#)10ft(12#)10ft(3×1.5mm2)
Environmental
Temperature (Operating / Storage)0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
Elevation (Operating / Storage)3000m3000m3000m
Compliance
EMC VerificationFCC Class AFCC Class A-
Safety VerificationUL, other by requestUL, other by requestLVD, UL
