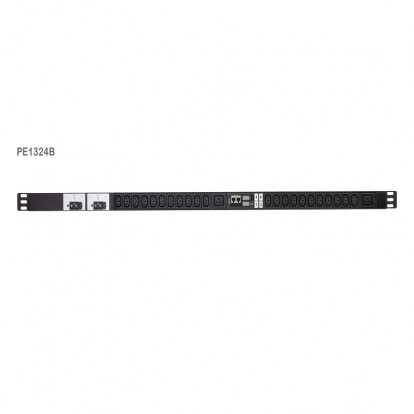

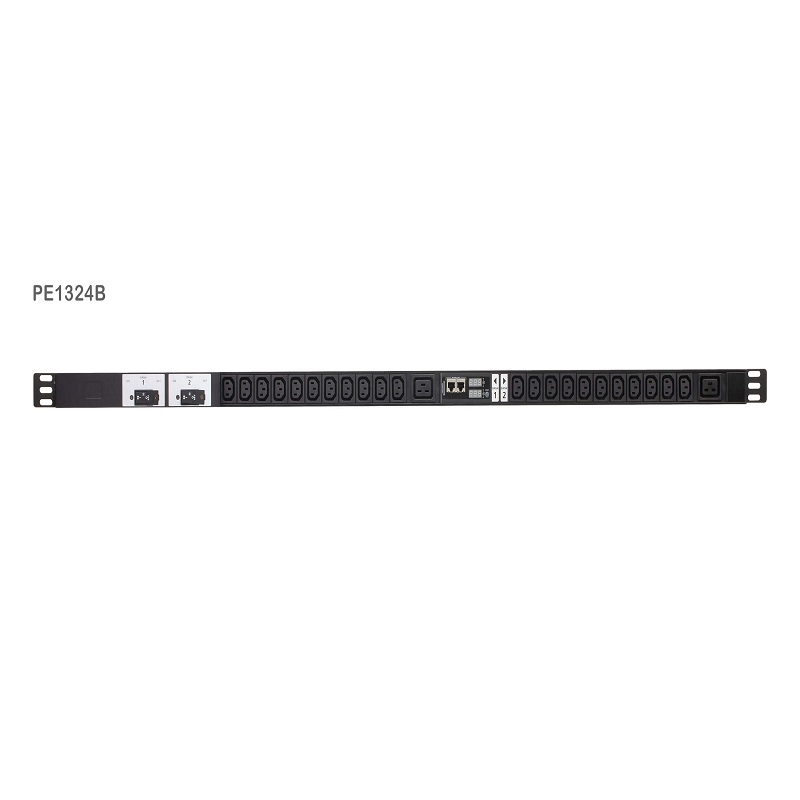

Basics Metered 0U PDU

Product Code : PE1324B

Brand Category : Rack PDU

Description

Space saving 0U rack mount design
IEC or NEMA outlet models
Dual 3-digit 7-segment displays to show current and voltage
Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box

Technical Specification

Electrical
Nominal Input Voltage	100-240 VAC
Maximum Input Current	30A Max (UL de-rated 24A Max)
Input Frequency	50-60 Hz
Input Connection	NEMA L6-30P
Input Power	7200VA(Max); 5760VA(UL de-rated)
Outlet Type	(22) IEC 320 C13, (2) IEC 320 C19
Maximum Output Current (Outlet)	C13: 15A Max (UL de-rated 12A Max) C19: 20A Max (UL de-rated 16A Max)
Maximum Output Current (Bank)	20A Max (UL de-rated 16A Max)
Maximum Output Current (Total)	30A Max (UL de-rated 24A Max)
OPD(Overcurrent Protection Device)	Yes
Physical Properties
Dimensions (L x W x H)	123.11 x 4.44 x 6.00 cm (48.47 x 1.75 x 2.36 in.)
Weight	3.80 kg ( 8.37 lb )
Power Cord Length	10ft(10#)
Environmental
Temperature (Operating / Storage)	0 – 40℃ / -20 – 60℃
Elevation (Operating / Storage)	3000m
Compliance
EMC Verification	FCC Class A
Safety Verification	UL, other by request
