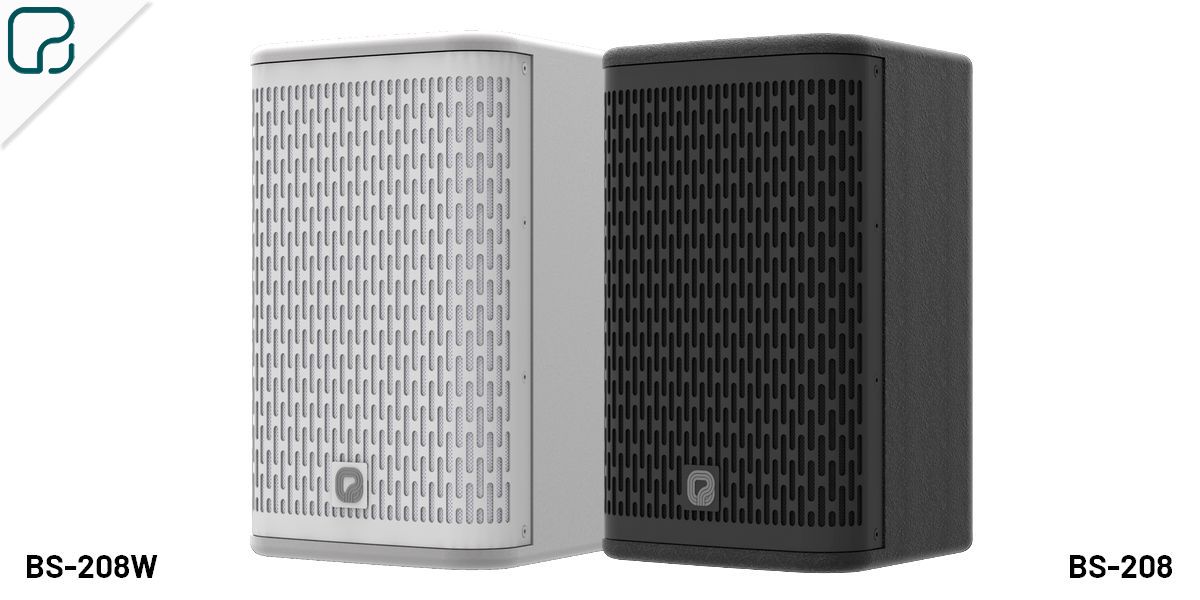

BS-208W

BS-208W

Product Code : BS-208W

Brand Category : High powers


Description


2-way speaker made of birch plywood, with a passive crossover, high-quality 8 “transducer and 1” Kapton driver with high sensitivity and lower distortion for outstanding detail and clarity in high frequencies without harshness. Dual Euroblock and NL4 connectors (input and link) for easy connection. U-type bracket included. Also available in 100 W / 100 V version (ref. BS-208T and BS-208WT).


Add to Query Cart PDF Download


Technical Specification


Type

2-way speaker

Enclosure

trapezoidal bass reflex

Power

170 W RMS / 340 W program

Frequency response

70 ~ 18,000 Hz

Impedance

8 Ω

Transducers

8” woofer + 1” tweeter Kapton driver

Dispersion

60° (H) x 40° (V)

Crossover frequency

2,200 Hz

max SPL (peak)

118 dB @ 1m

Connectors

2x NL4MP speakon + Euroblock

Finish

birch plywood 12 mm + metallic grille

Colour

black (BS-208) or white (BS-208W)

Support

U type (included) or swivel bracket (option)

Dimensions (mm)

245 (width) x 255 (depth) x 385 (high)

Weight

8 kg
