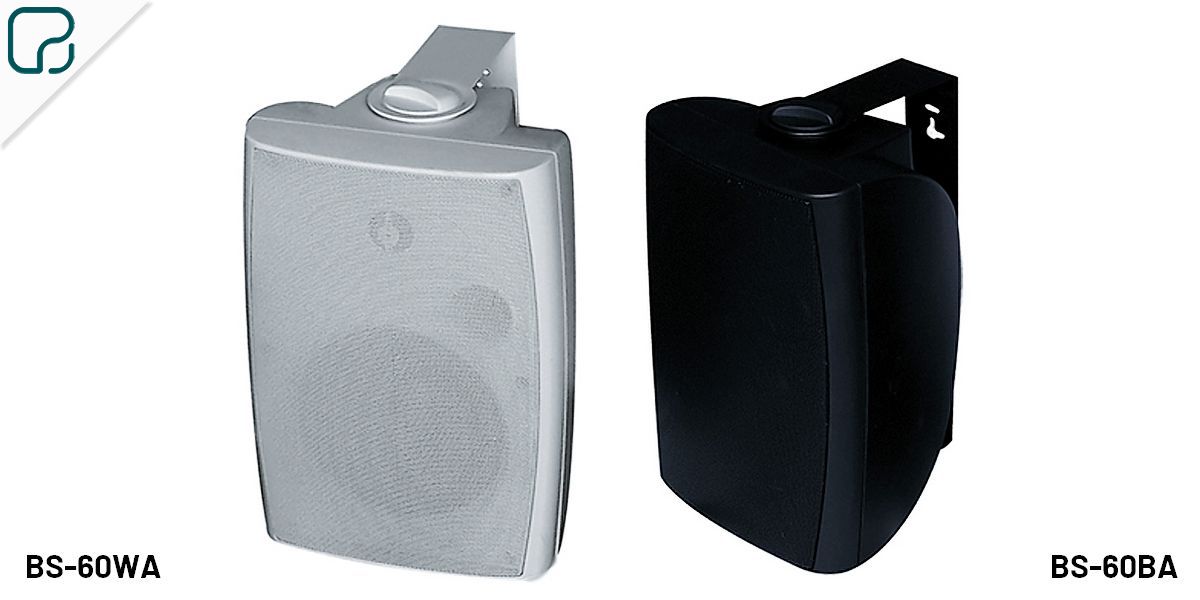

BS-60BA

BS-60BA

Product Code : BS-60BA

Brand Category : Low and medium powerS


Description


Two-way speaker with 8” woofer and 1” twitter, maximum power of 60 W RMS in 100 V line, with power taps of 30, 15 & 7.5 W. Also available the low impedance connection of 8 ohms. BS-60BA Black colour BS-60WA White colou


Add to Query Cart PDF Download


Technical Specification


Speaker

Woofer 8”, tweeter 1”

Output power RMS

60 W

Power taps 100 V

60, 30, 15 & 7.5 W

Power taps 70 V

60, 30, 15, 7.5 & 3.75 W

Sensitivity

88 dB SPL(1 W, 1 m, 1 kHz)

Sound Pressure

106 dB SPL (60 W, 1 m, 1 kHz)

Frequency Range

40 ~ 20.000 Hz

Dimensions (mm)

289 (width) x 417 (height) x 255 (depth)

Weight

6,6 kg

Finish

Box in ABS & powder coated iron grille

Colour

Black (BS-60BA), White (BS-60WA)

Mounting

U type mounting bracket
